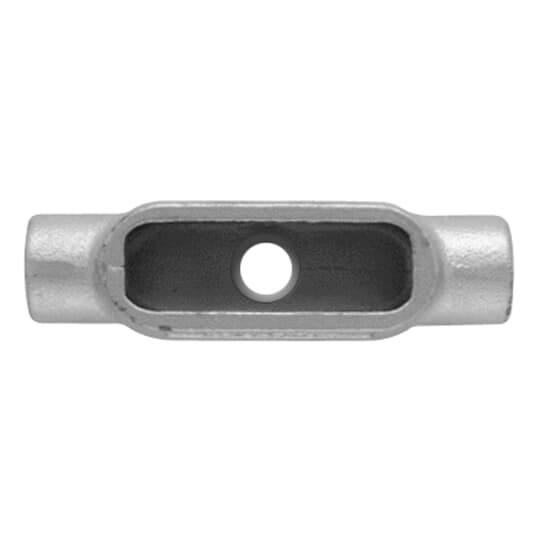

Product image for Ocal TB67-G 2" PVC-Coated Ocal-Blue® TB-Style Conduit Body, Form-7 - Gray
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Ocal TB67-G 2" PVC-Coated Ocal-Blue® TB-Style Conduit Body, Form-7 - Gray

Manufacturer: Thomas & Betts / Ocal | Catalog # TB67-G | North Coast Part # 203562
$804.64/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page
PVC Coated Conduit Body, TB Type, Form 7, Size 2 Inch/53 Metric, Iron, Dark Gray

Technical Information

Applications
Act as Pull Outlets for Conductors Being Installed
Hub Size
2
Material
Iron
Size
2 in
Standard
UL E2969
TC Connection
Threaded
Trade Size
2 Inch
Type
Form 7 Conduit Body

Manufacturer Information

Brand
Thomas & Betts (T&B)
Sub Brand
Ocal®

General Product Info

12-Digit UPC
704508411473
Color
Gray
Finish
PVC Double-Coated/Dark Gray
GTiN
00704508411473
Product UPC
70450841147
Certifications
  • CSA
  • UL
Features
  • A minimum of .040 in. PVC coating is bonded to the exterior.
  • Bodies are designed with a flat back, allowing more cubic inch capacity. The flat back also keeps the body more stable during installation, requiring fewer conduit straps.
  • Covers are coated with a molded flange to seal the conduit body while the conduit body is molded with a flat surface on its opening to seal with the cover.
  • Ocal conduit bodies are shipped with a cover and encapsulated stainless steel screws.
  • The conduit body and cover are double coated with a nominal .002 in. blue urethane on both the interior and exterior, before PVC coating is applied
  • Ocal pressure-sealing sleeves on all threaded hubs.
Application
  • Make 90° bends in conduit runs
  • Provide for access to conductors for maintenance and future system changes
  • Provide taps for branch conduit runs
  • Connect conduit sections
  • Act as pull outlets for conductors being installed
  • Provide openings for making splices and taps in conductors
Notes

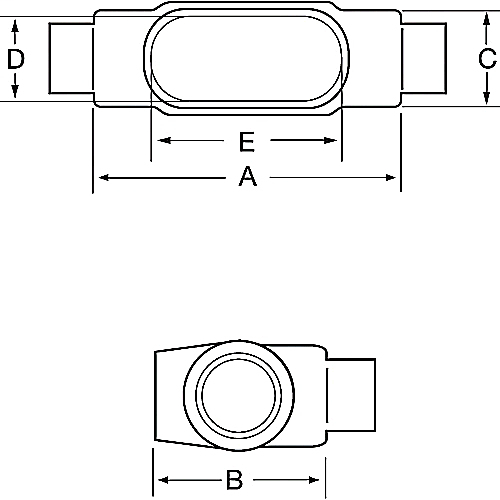

  • Dimensional values are of uncoated conduit bodies.
  • Available in dark gray, white and light blue. Custom colors are also available upon request. Please contact Technical Services-888-862-3289
