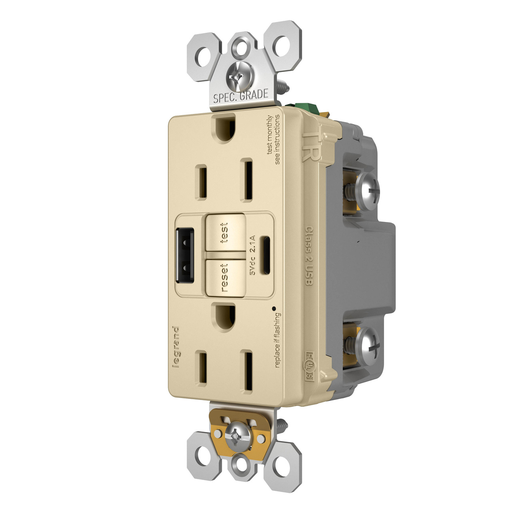

P&S 1597TRUSBACI SELF-TEST GFCI REC

Manufacturer: Legrand / Pass & Seymour | Catalog # 1597TRUSBACI | North Coast Part # 2045690
$79.00/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Auburn Closes 4:00pm PT
0 available

For Delivery

Not in local stock *
Check another branch
*Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Installation / Instruction Manual

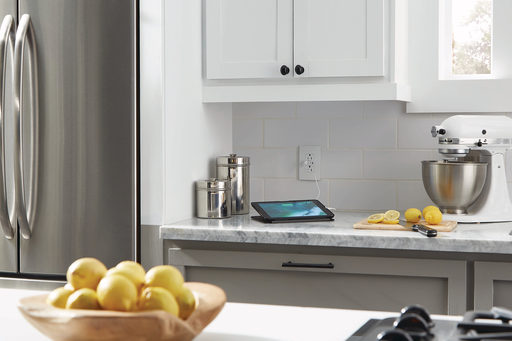

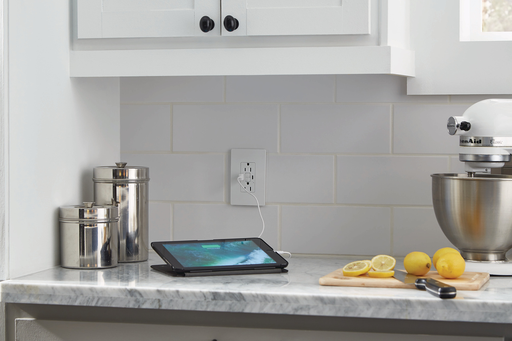

Enjoy superior safety and the convenience of built-in USB charging, in a first-of-its-kind outlet! Perfect for adding modern connectivity anywhere, including areas of the home where ground fault protection is required (kitchens, bathrooms, laundry rooms, etc). This outlet makes it easy to see and reset electrical trips right where they happen, while also providing two USB connections for keeping phones or tablets charged, no bulky adapter required. Made exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately.

Technical Information

Amperage
15 Amp
Material
Polycarbonate
Mounting Type
Box
Number of Gangs
1 Gang
Number of Poles
2 Pole
Outlet Type
GFCI,Indoor,Self-Test,Tamper-Resistant,USB-Charging
Voltage
125 Volt
Wattage
1875 Watt

Manufacturer Information

Brand
Legrand
Sub Brand
radiant

General Product Info

12-Digit UPC
785007309980
Color
Ivory
Finish
Matte
GTiN
00785007309980
Product UPC
78500730998

Dimensions

Depth
1.03 Inch
Height
4.2 Inch
Warranty Length
1 yr
Width
1.73 in

Certifications and Compliance

Certifications
CSA,CULUS,ROHS,UL
Country of Origin
China
Features
  • First outlet of its kind to add USB connection to a GFCI outlet for easier charging, anywhere
  • Provides reliable ground fault protection with a trip indicator light and reset button on the outlet for easy, accessible troubleshooting
  • Includes traditional power outlets and two USB Type-A ports for convenient charging. Shares 2.0A charging capacity between both ports
  • Self-tests every three seconds, ensuring continuous ground fault protection for greater safety. Additionally, in case of test failure, the indicator light (red LED) will flash to signal there is an issue and the outlet should be replaced
  • Equipped with proven SafeLock™ feature which disconnects power to the outlet if any critical components are damaged for added protection
  • Protect children using a patented invisi-shutter system to prevent the insertion of foreign objects while maintaining a discreet, invisible effect. Meets NEC® Tamper-Resistant requirements

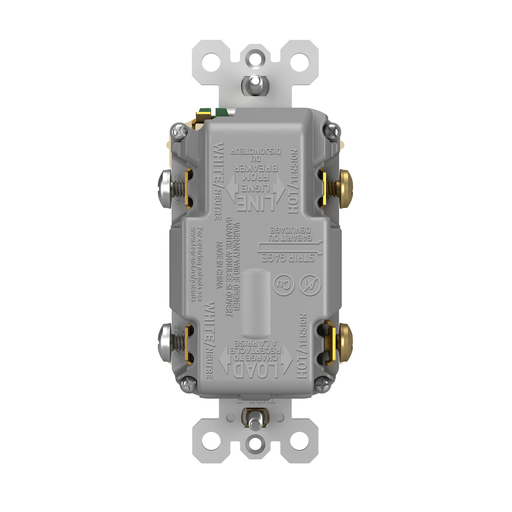

  • Installs quickly thanks to a redesigned side wire cavity for easier access.
  • Can provide ground fault protection to downstream outlets through feed-thru wiring.

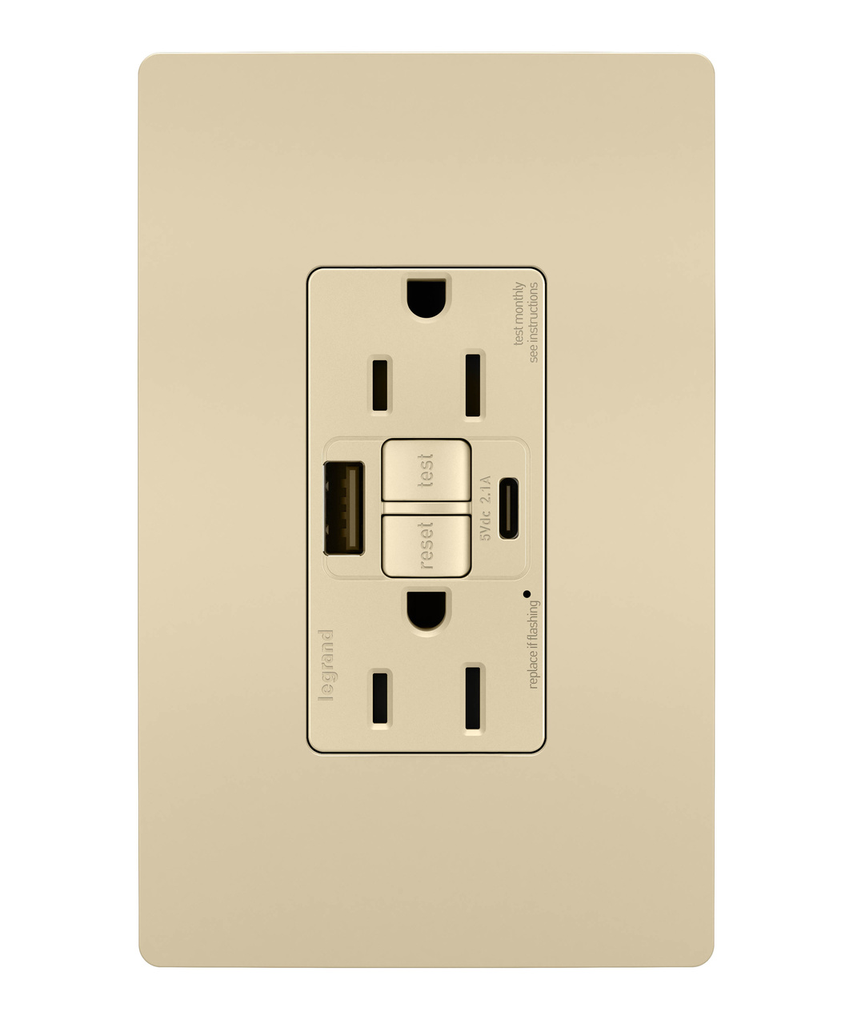

  • Complete the look with a sleek, screwless radiant® Wall Plate, and coordinate with other designer switches and outlets available from the radiant® Collection.
Certifications
  • CSA Listed
  • UL Listed
  • RoHS Compliant
  • cULus Listed
