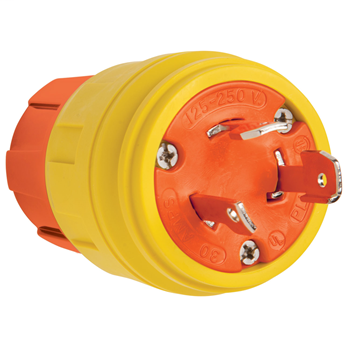

P&S 28W08AM TLPL IP67 3W 30A 125/25

Manufacturer: Legrand / Pass & Seymour | Catalog # 28W08AM | North Coast Part # 2045953
$111.06/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Buy American Compliant Buy American Compliant Specification Sheet Brochure
SteriGuard Anti-Microbial Wiring Devices provide excellent protection against the growth of microbes on all surfaces. Independent testing proves the ability of these devices to inhibit the growth of Escherichia coli, Gram (-) and Staphylococcus aureus, Gram (+) providing long lasting benefits to manufacturers beyond conventional cleaning methods. Rated watertight for 1,500 psi high-pressure

Technical Information

Amperage
30 Amp
Applications
High-pressure washdowns. Particle build-up. Condensation. Corrosive substances. Food and beverage processing plants can be harsh, challenging environments. Fortunately, we have a full menu of electrical devices that keep things running smoothly while protecting people and equipment. IEC PIN & SLEEVE DEVICES Watertight Plugs & Connectors Thermoplastic elastomer body resists water, oils, lubricants and soaps while maintaining NEMA 4, 4X, 6, 6P, and IP65, 66, 67 ratings Ideal for washdown areas rated watertight for 1,500 PSI high-pressure hose down Nickel-plated blades and contacts for long-lasting, superior corrosion resistance Watertight compression cord grips and a multipoint sealing system between the plug and connector ensures protection from water and contaminants P
Conductor Size
14-10 AWG
Cord Type
12/3 SJ, 14/3 S to 10/3 S, .475" min to .720" max
Enclosure
Non-NEMA
Material
Rubber
Number of Phases
3 Phase
Number of Poles
3 Pole
Number of Wires
3 Wire
Type
Plug
Voltage
125 Volt
Wire Size
10 AWG

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007056099
Color
Yellow
Environmental Conditions
-40 to 60 C
GTiN
00785007056099
Product UPC
78500705609
UNSPSC
39121403

Dimensions

Depth
2.62 Inch
Diameter
2.29 Inch
Height
1.85 Inch
Length
3.1 Inch
Width
1.85 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
Features
  • UL and CSA Listed
  • NSF (National Sanitation Foundation) Certified
  • Patent Pending
  • Anti-microbial Additives Embedded in polymer and inhibits Growth of Bacteria, Molds, Mildews and Fungi
  • Anti-microbial Additive Resistant to Scuffing and Cleaning
  • Escherichia (E.Coli): - Log reduction > 4.8, reduced surface bacteria by > 99.99%
  • Staphylococcus (Staph), MRSA: - Log Reduction > 4.3, reduces surface bacteria by > 99.97%
  • Salmonella Log Reduction > 3.6, reduces surface bacteria by > 99.97%
  • RoHS Compliant (Non-Halogenated)
  • Independently tested and Certified to JIS Z2801 standards
  • Resistant to High Pressure Hose-down applications
  • Tongue & Groove Environmental Sealing
  • Keyed Body and Cover for Alignment
  • NEMA Type 4, 4x, 6, 6P and IP67 Protection
  • Steriguard™ Anti-microbial Wiring Devices are ideal for a wide range of applications including food and beverage preparation, procession, & packaging; agriculture, pharmaceutical, and health care.
