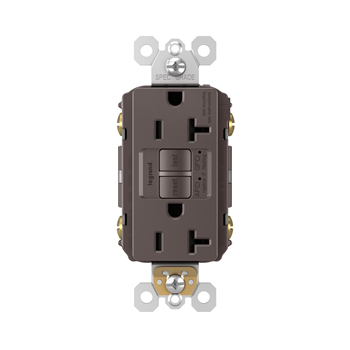

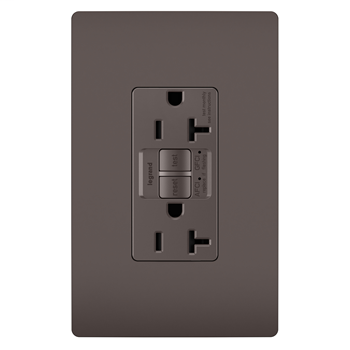

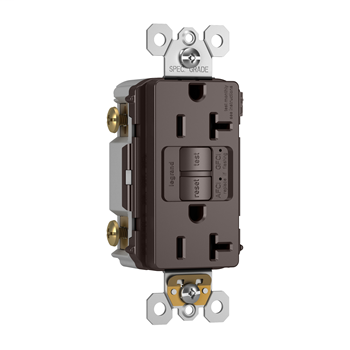

Product image for Pass & Seymour AFGF202TR 20A 125V AFCI/GFCI Self-Test Tamper-Resistant Receptacle - Brown
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2

Email

Pass & Seymour AFGF202TR 20A 125V AFCI/GFCI Self-Test Tamper-Resistant Receptacle - Brown

Manufacturer: Legrand / Pass & Seymour | Catalog # AFGF202TR | North Coast Part # 2045977

$78.73/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Protecting against both electrical fires caused by arc faults and injury due to electrical shock, this outlet meets National Electrical Code for use in kitchens and laundry areas. Unlike AFCI/GFCI breaker alternatives, this dual-function device makes it easy to recognize and fix trips right where they happen. Maximize safety, in style, with AFCI/GFCI protection featuring the sleek, clean lines of radiant. 20A outlets are ideal for use with larger appliances, as well as to meet regional requirements (Chicago, Canada). GFCI protection is required by code in bathrooms, kitchens, garages, outdoor areas, and for any other outlets found within six feet of a sing or water source. Dual-Function outlets meet code for GFCI requirements and offer additional protection against arc faults, also required in certain areas for home sale inspection. Made exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately.

Technical Information

Amperage
20 Amp
Applications
Residential
NEMA
5-20R
Operating Temperature
-35 deg C to +66 deg C
Size
1.36" Depth x 1.73" Width x 4.21" Height
Style
GFCI Outlet
TC Connection
Side & Back Wired
Type
Radiant® Dual Function Tamper-Resistant 20A AFCI/GFCI Outlet
Voltage
125 Volt

Manufacturer Information

Brand
radiant
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007055825
Color
Brown
GTiN
00785007055825
Product UPC
78500705582

Dimensions

Depth
1.36 Inch
Height
4.2 Inch
Width
1.25 in

Certifications and Compliance

Country of Origin
China
Features
  • Part of the all-new radiant® collection.
  • FSUL Listed (Federal Specification WC596)
  • Feed-through protection.
  • Two back-wire holes per termination add wiring flexibility, eliminate pigtailing and save box space.
  • High-impact-resistant, thermoplastic construction for superior strength and durability.
  • Tamper-Resistant automatic shutter system prevents young children form inserting common household objects. Black shutters essentially \"disappear\" into the background for an invisible effect preferred by end users.
  • Ground terminal back-wire for fast installation.
  • Patented SafeLock® Protection - if critical components are damaged and ground fault protection is lost, power to the receptacle is disconnected.
  • Two indicator lights, one for GFCI and one for AFCI. Easy to distinguish between trip caused by arc fault and trip caused by ground fault. GFCI indicator light flashes if device fails the self-test, signaling that the GFCI should be replaced.
  • Auto-ground clip assures a positive ground to metal box.
  • Prevents line-load miswire - no power to the face or downstream receptacles if wired incorrectly.
Eco-Benefit Information
  • RoHS Compliant
