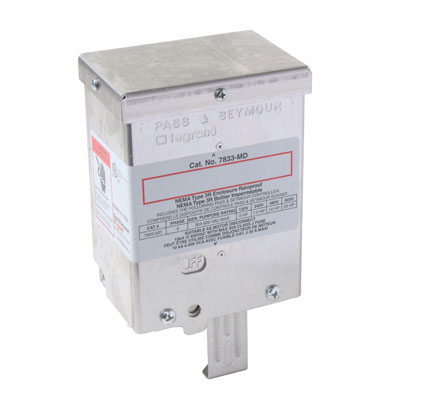

Product image for Pass & Seymour 7833-MD 30 amp, 600 watts Three pole, Three Phase AC Manual Motor Controller
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Pass & Seymour 7833-MD 30 amp, 600 watts Three pole, Three Phase AC Manual Motor Controller

Manufacturer: Legrand / Pass & Seymour | Catalog # 7833MD | North Coast Part # 2045980
$279.32/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Buy American Compliant Buy American Compliant Specification Sheet Brochure
Three pole, Three Phase AC Manual Motor Controller 30 amp, 600 watts., Suitable as Motor Disconnect - 10KA @ 600VAC, 30A max Class J fuse.

Technical Information

Actuator
Toggle Switch
Amperage
30 Amp
Applications
Commercial and Industrial
Connection Type
Back and Side Wire
Enclosure
NEMA 3R
Mounting Type
Flush
Number of Poles
3 Pole
Operating Cycles
50000
Operating Temperature
Maximum continuos +75degrees C, minimum -40degrees C
Size
1.8" Depth x 4.5" Width x 5.75" Height
TC Connection
Side & Back Wired
Temperature Rating
-40 to 75 degrees C
Type
Manual, Toggle Actuated
Voltage
120 Volt
Wattage
600 Watt

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007267709
Color
Aluminum
Environmental Conditions
UL 94 Requirements, V2 Rated Flammability
Finish
Matte
GTiN
00785007267709
Product UPC
78500726770

Dimensions

Depth
1.8 Inch
Height
5-3/4 Inch
Width
4.5 in

Certifications and Compliance

Buy American Compliant
Y
Certifications
CULUS
Country of Origin
Mexico
Features
  • High Horsepower rating of 20HP
  • Gull-wing shaped brass terminal pressure clamps
  • Constructed of glass-reinforced thermoplastic
  • UL508 and cULus Listing of individual device and assembled device within enclosure
  • Heavy-duty zinc-plated steel strap, two brass rivets secure strap to housing
  • External screw-pressure-plate back and side wire terminal screws unstaked for use with ring terminals
  • For covering patents, see www.legrand.us/patents.
  • For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
Certifications
  • cULus Listed
