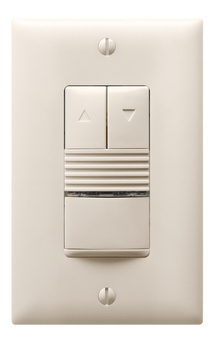

Product image for 0-10V PIR WALLSWT OCC SNSOR 120/277 LTAL
Image thumbnail 0
Image thumbnail 1

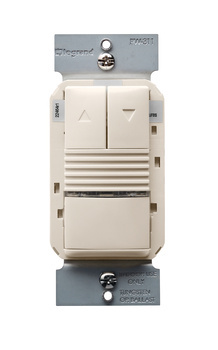

Image thumbnail 2
Email

0-10V PIR WALLSWT OCC SNSOR 120/277 LTAL

Manufacturer: Wattstopper | Catalog # PW-311-LA | North Coast Part # 2046004
$150.73/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Auburn Closes 3:00pm PT
0 available

For Delivery

Not in local stock *
Check another branch
*Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Installation / Instruction Manual CAD Drawing #1 CAD Drawing #2
The PW-311 passive infrared (PIR) dimming wall switch sensor can turn lights OFF and ON based on occupancy and allow the user to increase or decrease the lighting level. It works with 0-10 VDC dimming drivers and ballasts to control lighting loads including LEDs.

Technical Information

Amperage
4.3 Amp
Applications
For Enclosed Spaces with Clear Line of Site, Small Offices, Small Conference Rooms, Commercial
Connection Type
Wired
Enclosure
Plastic Housing
Indicator
True
Input Voltage
120/230/240/277 VAC
Lens Type
LED
Material
Plastic
Mounting Type
Wall
Sensing Range
180 sq ft
Sensor Type
Passive Infrared
Standard
CSA C22.2 No. 14,IEC 60947-3,UL 508
Type
Multi Way, Wall Switch, Automatic On/Off
Voltage
120-277 VAC

Manufacturer Information

Brand
WattStopper
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
754182939053
Color
Light Almond
Finish
Matte
GTiN
00754182939053
Product UPC
75418293905

Dimensions

Depth
1.81 Inch
Height
2.73 Inch
Length
2.73 Inch
Width
1.75 in

Certifications and Compliance

Country of Origin
China
Features
  • Optional Smart Light Level adapts ambient light hold off threshold to meet user needs
  • Selectable walk-through mode turns lights off three minutes after the room is initially occupied if no motion is detected after the first 30 seconds
  • Test mode allows quick and easy verification of coverage
  • Selectable audible and/or visual alerts for impending shutoff
  • LED indicates occupancy detection
  • Vandal resistant lens combines precise coverage with durability
  • Presentation mode may be deactivated to allow Auto-ON operation after 15 second time delay
