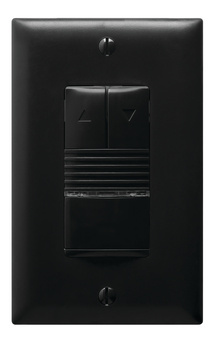

Product image for OnQ PW311B 0-10V PIR DIMMING OCC SE
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

OnQ PW311B 0-10V PIR DIMMING OCC SE

Manufacturer: Wattstopper | Catalog # PW-311-B | North Coast Part # 2046009
$150.73/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Installation / Instruction Manual CAD Drawing #1 CAD Drawing #2
The PW-311 passive infrared (PIR) dimming wall switch sensor can turn lights OFF and ON based on occupancy and allow the user to increase or decrease the lighting level. It works with 0-10 VDC dimming drivers and ballasts to control lighting loads including LEDs.

Technical Information

Applications
For Enclosed Spaces with Clear Line of Site, Small Offices, Small Conference Rooms, Commercial
Connection Type
Wired
Enclosure
Plastic Housing
Indicator
True
Indoor Outdoor
Indoor
Input Voltage
120/230/240/277 VAC
Mounting Type
In-Wall
Number of Poles
Multi,Location, 1 Pole
Sensing Range
180 sq ft
Sensor Type
Occupancy
Standard
CSA C22.2 No. 14,IEC 60947-3,UL 508
Type
Automatic, Metered, Service Entrance, Advanced
Voltage
120/277 Volt

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
754182939022
Color
Black
Finish
Matte
GTiN
00754182939022
Product UPC
75418293902

Dimensions

Depth
1.81 Inch
Height
2.73 Inch
Length
2.73 Inch
Width
1.75 in

Certifications and Compliance

Country of Origin
China
Features
  • Optional Smart Light Level adapts ambient light hold off threshold to meet user needs
  • Selectable walk-through mode turns lights off three minutes after the room is initially occupied if no motion is detected after the first 30 seconds
  • Test mode allows quick and easy verification of coverage
  • Selectable audible and/or visual alerts for impending shutoff
  • LED indicates occupancy detection
  • Vandal resistant lens combines precise coverage with durability
  • Presentation mode may be deactivated to allow Auto-ON operation after 15 second time delay
