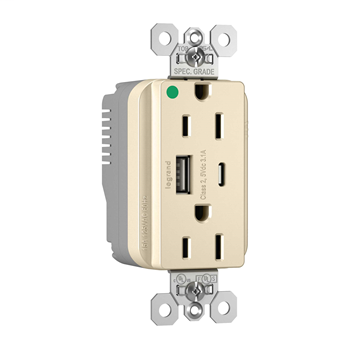

Product image for P&S PTTR15HACUSBLA PLUGTAIL 15A HG
Image thumbnail 0
Image thumbnail 1
Email

P&S PTTR15HACUSBLA PLUGTAIL 15A HG

Manufacturer: Legrand / Pass & Seymour | Catalog # PTTR15HACUSBLA | North Coast Part # 2046499
$84.28/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure
PlugTail® Hospital Grade USB Charging Receptacles provide the convenience of mobile charging . without the need for a bulky AC adapter. This device is a perfect match for the constant needs of today.s mobile environment and is rugged enough to withstand hard-use commercial applications. It comes equipped with two UL Fed Spec AC receptacles and two USB charging ports for mobile devices . one Type-A port and one Type-C port for newer products. An efficient, 15.5W power supply provides ample power needed for charging mobile phones and tablets. The PlugTail termination provides a more productive, secure, and safer installation and allows you to connect with the future of wiring device innovations.For detailed PlugTail® information, visit our PlugTail Headquarters.

Technical Information

Amperage
15 Amp
Applications
For Healthcare, Education, Airport, Retail, Hospitality/Lodging, Office, Institutional and Multiple Dwelling and For Providing the Convenience of Mobile Charging Without the Need for a Bulky AC Adapter
Grade
Hospital
Grounding
Auto
Material
Thermoplastic Body/Face
Mounting Type
Panel
NEMA
5-15R
Number of Ports
2
Temperature Rating
-40 degrees C to 60 degrees C
Type
Corrosion/Tamper-Resistant, 2-Outlet, USB Type A, Type C
Voltage
125 Volt

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
PlugTail®

General Product Info

12-Digit UPC
785007113358
Color
Light Almond
Environmental Conditions
UL 94-V2/V5 Flammability Rating
GTiN
00785007113358
Product UPC
78500711335

Dimensions

Depth
1.45 Inch
Height
3.281 Inch
Width
0.69 in

Certifications and Compliance

Certifications
CULUS,FEDSPEC
Country of Origin
Mexico
Features
  • AC receptacles are tamper resistant as standard patented shutter system prevents improper insertion of foreign objects
  • Efficient, 15.5W power supply for fast charging of mobile phones and tablets
  • Triple-wipe, brass line contacts for 15A commercial applications
  • Multiple color options available
  • Zinc-plated steel for corrosion resistance
  • 5Vdc Type-C USB port to charge USB Type-C compatible mobile devices
  • PlugTail termination allows for more productive, finger-safe installation and added future flexibility
  • Stainless steel auto-ground clips assure positive ground
  • Available in 15 & 20A, Specification Grade and Hospital Grade configurations
Eco-Benefit Information
  • RoHS Compliant
