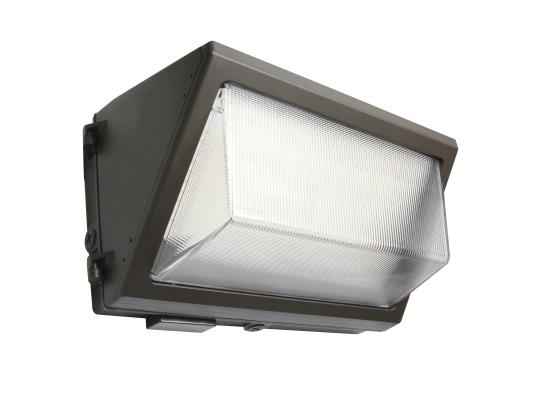

MXL WPOP55U-CSBCR 55W WLPK

Manufacturer: Maxlite Lighting | Catalog # WPOP55U-CSBCR | North Coast Part # 2047432

$248.15/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
The new generation of WallMax Open Face LED Wall Packs provides flexibility for distributors and contractors with field-selectable CCTs, wattages (55W and 120W models) and field-installable controls. The housing has been enlarged to cover HID fixture footprints and accommodate battery backup in all sizes. The Wall Packs feature a controls-ready receptacle compatible with c-Max controls. The simple plug-and-play sensor receptacle enables c-Max control nodes to be added at the time of installation, or in the future. as well as allowing for future control upgrades without changing the fixture. The receptable is located at the bottom of the fixture and looks through a window, which minimizes the impact on the fixture aesthetics. A cover is included to hide the window when controls are not used.

Technical Information

Ambient Temperature
-40 degrees F
Color Temperature
3000 K
Correlated Color Temp
3000 K
Efficacy
136.16 LPW
IP Rating
IP65
Lumens
7,256.1 Lumen
Power Factor
0.9

Manufacturer Information

Brand
MaxLite

General Product Info

12-Digit UPC
767627000973
Finish
Bronze
Product UPC
76762700097
Weight
8.4 lb

Dimensions

Height
9.33 Inch
Length
14.39 Inch
Warranty Length
10 yr
Width
7.4 in
Features
  • CCT selectable models between 3000K, 4000K or 5000K
  • Controls Ready - simple plug and play Sensor Receptacle/Socket enables installation of c-Max control nodes without changing the fixture
  • Sealed housing - control nodes mounted internally without impacting fixture sealing or aesthetics
  • Avi-On Network Controls Option available on newer models
  • 0-10V dimming driver, 6kV surge suppression standard
  • Battery Backup Options - 0°C and -20°C
  • Rugged die cast housing with corrosion resistant polyester powder paint finish
  • Impact resistant borosilicate glass
  • High Voltage Option: 277-480V
Accessory Products
  • WPOP-SVISOR-B
  • WPOP-SWG
