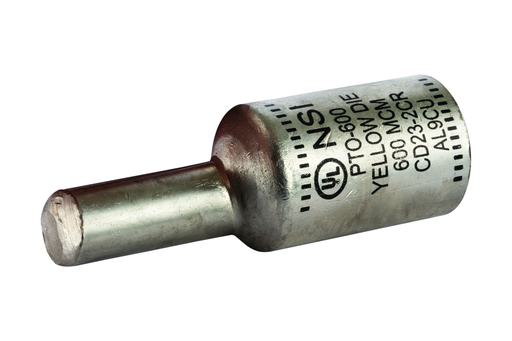

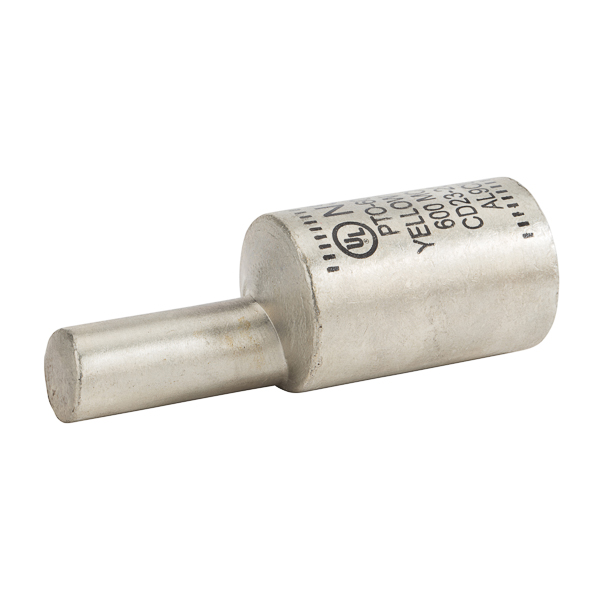

Product image for NSI PTO-600 600 MCM Yellow Tinned Aluminum 1-Conductor Offset Pin Terminal
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

NSI PTO-600 600 MCM Yellow Tinned Aluminum 1-Conductor Offset Pin Terminal

Manufacturer: NSi Industries | Catalog # PTO-600 | North Coast Part # 20485
$152.50/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Offset Pin Terminal 600 MCM All-aluminum Pin Terminals is designed for termination of both aluminum and copper conductors. The pin is offset for use in tight spaces and for ease of installation in side-by-side terminations. The solid pin is made of aluminum and is tin-plated and pre-filled with oxide inhibitor. A cover is provided for quick installation. Rated 600 Volts.

Technical Information

Applications
Terminate, Splice, Tap Power Connectors
Conductor Size
600 kcmil
Connection Type
400 Pin
Enclosure Rating
90 C
Insulation Material
Plastisol Cover
Material
Aluminum
Max Temperature
194 degrees F
Number of Conductors
1
Number of Poles
1 Pole
Size
L=4.00 - OD=1.46 - ID=.821 - Pin Dia=.720
Standard
UL486
TC Connection
400 Pin
Temperature Rating
90 degrees C
Type
Offset Pin
Voltage
600 Volt
Wire Size
600 kcmil

Manufacturer Information

Brand
NSI Industries
Sub Brand
Pin Terminals

General Product Info

12-Digit UPC
662381033284
Color
Yellow
Environmental Conditions
90 degrees C
Finish
Tin Plated
GTiN
00662381033284
Product UPC
66238103328

Dimensions

Height
1.46 Inch
Length
4 Inch
Warranty Length
1 yr
Width
1.46 in

Certifications and Compliance

Country of Origin
India
Features
  • All-aluminum pin terminal designed for termination of both aluminum and copper conductors
  • Pin is offset for use in tight applications while providing ease of installation in side by side applications
  • The solid pin is made of aluminum and is Tin-plated and pre-filled with oxide inhibitor
  • Great for paralleling cable
  • A cover is provided for quick insulation
Certifications and Standards
  • UL Listed
  • UL 486A-486B
