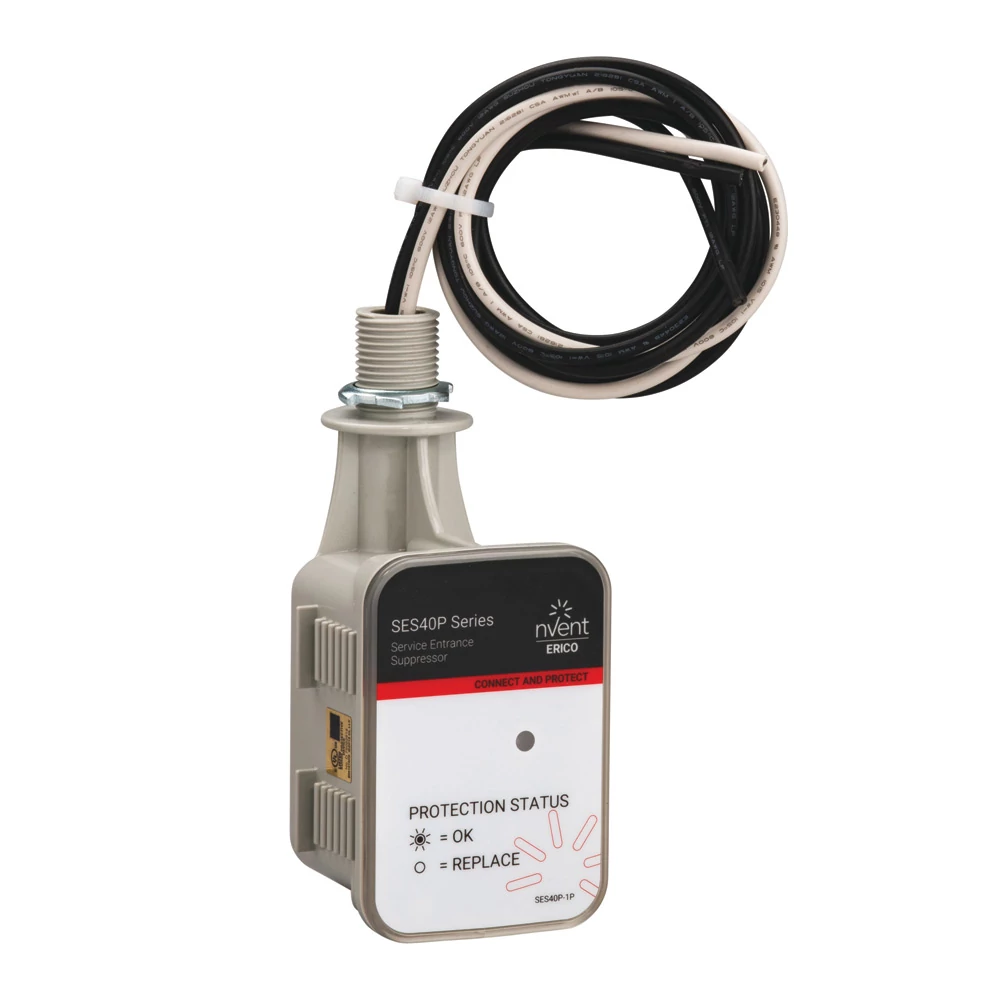

Product image for Erico SES40P4803P Service Entrance Suppressor(P), 40 kA, 277/480 VAC Un
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

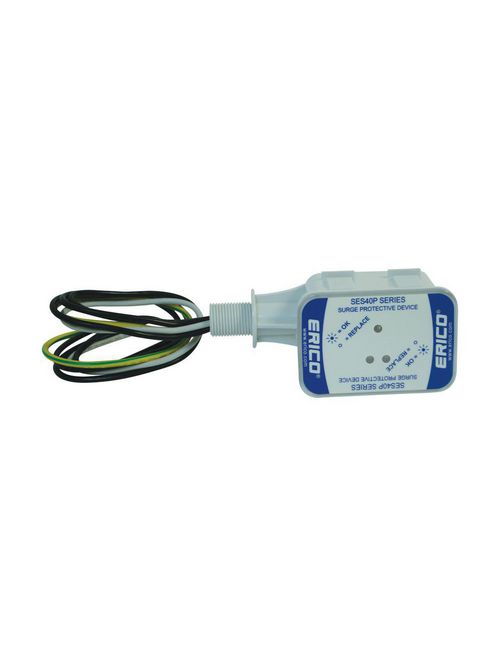

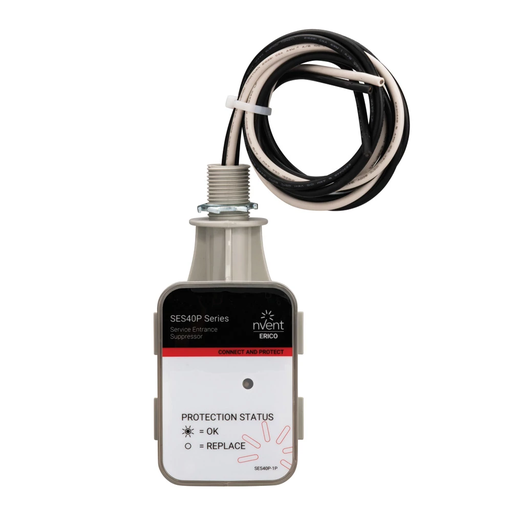

Erico SES40P4803P Service Entrance Suppressor(P), 40 kA, 277/480 VAC Un

Manufacturer: Cadweld | Catalog # SES40P4803P | North Coast Part # 2054022
$464.01/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure
For typical 277/480 3 phase systems.

Technical Information

Applications
Power Connections; Surge Protection
Enclosure Material
UL® 94V-0 Thermoplastic
Enclosure Rating
NEMA®-4X
Type
Service Entrance Suppressors

Manufacturer Information

Brand
nVent Erico
Sub Brand
ERICO

General Product Info

12-Digit UPC
782856859130
GTiN
00782856859130
Product UPC
78285685913
Weight
0.39 kg

Dimensions

Depth
76.2-76.2
Height
69.85-69.85
Width
120.65-120.65
Features

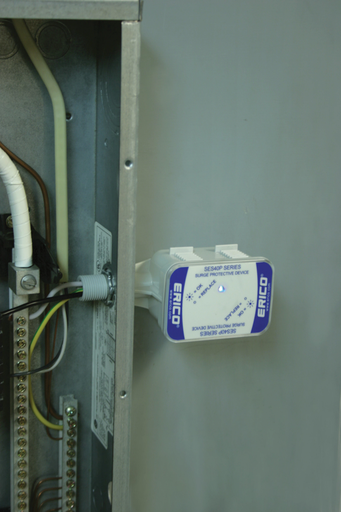

  • Compact design can be directly mounted to panel or installed in a small space
  • Front-facing design eases installation and performance monitoring
  • 40 kA 8/20 ?s maximum surge rating per mode
  • UL® 50 Type 4X

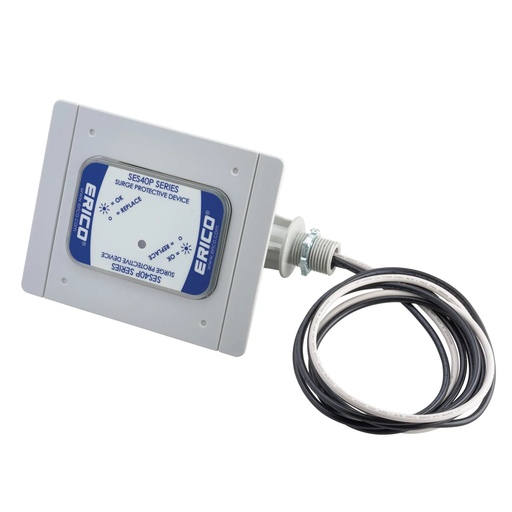

  • Optional Flush Mounting Plate
Certifications
  • cUL CSA C22.2 No. 269.1/269.2
  • UL ANSI/UL 1449
