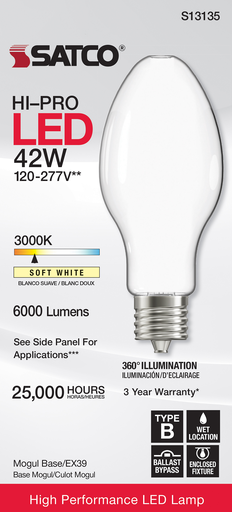

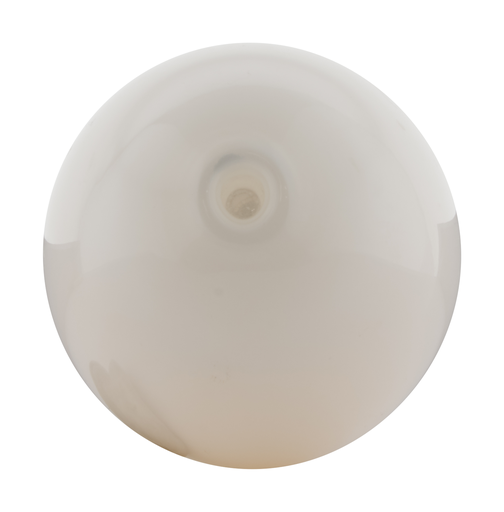

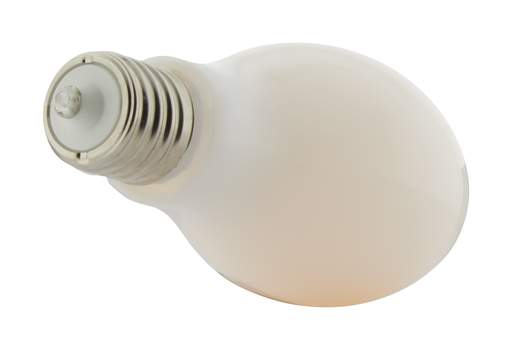

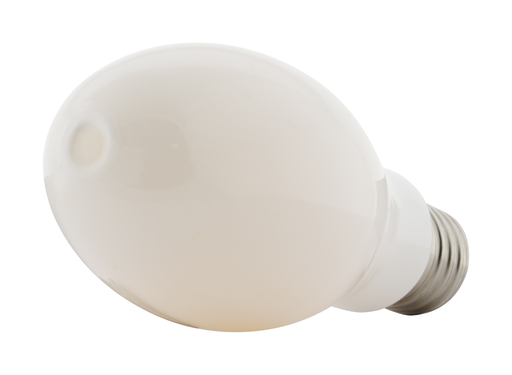

Product image for Satco S13135 42 Watt LED HID Replacement; ED28; 3000K; Mogul extended base; 120-277 Volt; Type B Ballast Bypass
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
Image thumbnail 7
Image thumbnail 8
Email

Satco S13135 42 Watt LED HID Replacement; ED28; 3000K; Mogul extended base; 120-277 Volt; Type B Ballast Bypass

Manufacturer: Satco | Catalog # S13135 | North Coast Part # 2055104
$78.11/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
42 Watt LED HID Replacement - ED28 - 3000K - Mogul Extended Base - 120-277 Volts - Type B Ballast Bypass

Technical Information

Amperage
0.350-0.152 Amp
Average Rated Life
25000 hr
Base
Mogul Extended
Beam Angle
360 DEG
Beam Spread
360
Bulb Shape
ED28
Color Temperature
Warm White
Correlated Color Temp
3,000 K
Dimmable?
No
Incandescent Equivalent
300 W
Indoor Outdoor
Indoor;Outdoor
IP Rating
IP65
Lens Color
White
Lens Material
Glass
Lumens
6,000 Lumen
Material
Glass
Operating Temperature
-22 degrees F
Power Factor
0.9
Size
8.54 IN
Technology Type
LED
Type
LED HID
Voltage
120 Volt
Wattage
42 Watt
Wet Location
Wet

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Satco
Sub Brand
Satco

General Product Info

12-Digit UPC
045923131356
Finish
White
GTiN
00045923131356
Housing Color
White
Product UPC
04592313135
Weight
0.49 lb

Dimensions

Warranty Length
3 yr

Certifications and Compliance

Country of Origin
China
Ballasting Requirements
  • Ballast Bypass
Features
  • Warm white light
  • HID 175W Replacement
  • Wet rated for indoor and outdoor use
  • MOL:8.54 inches; MOD:3.54 inches
  • HI-PRO Filament 120-277V
Installation Notes
  • Not for use in vapor tight fixtures.
