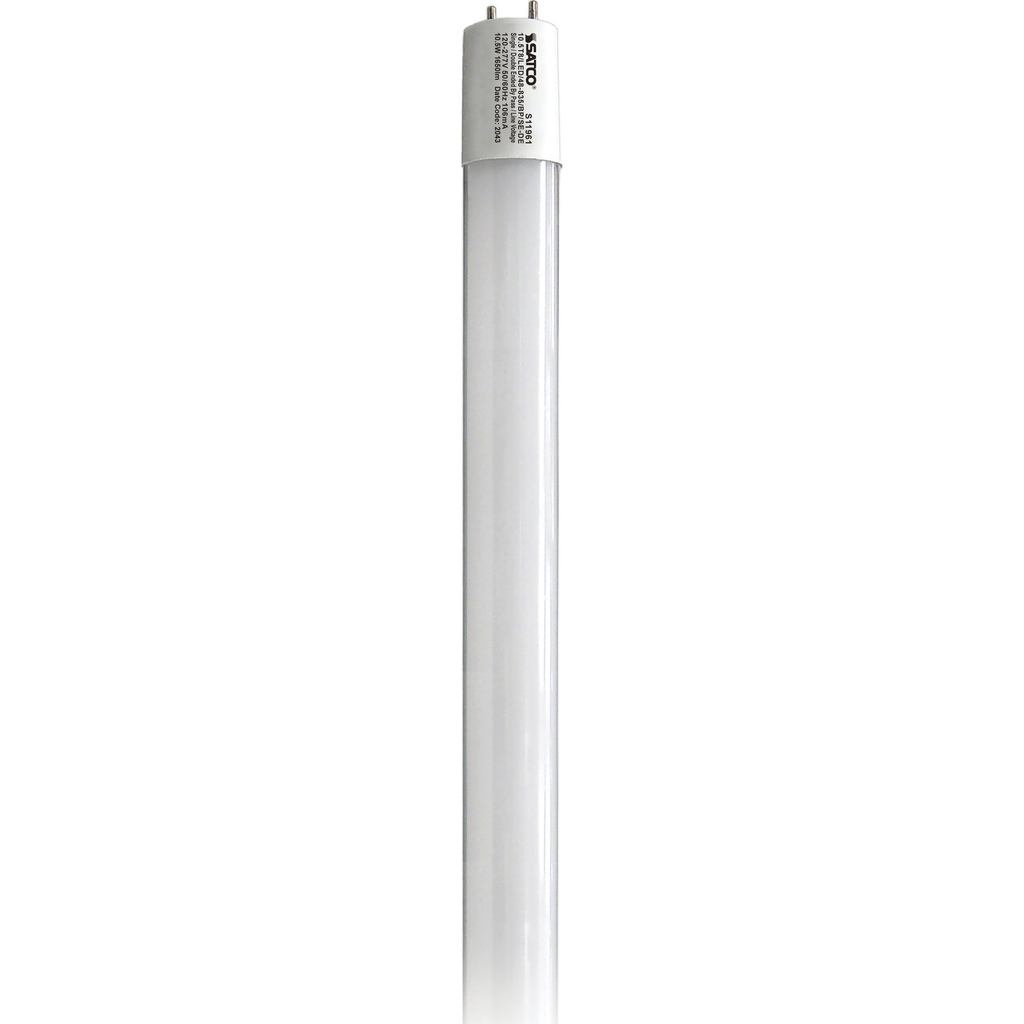

Product image for SATCO S11961 10.5T8/LED/48-835/BP/S
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
Image thumbnail 7
Image thumbnail 8
Image thumbnail 9
Image thumbnail 10

Email

SATCO S11961 10.5T8/LED/48-835/BP/S

Manufacturer: Satco | Catalog # S11961 | North Coast Part # 2055118

$13.21/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
SATCO's S11961 LED Type B ballast bypass lamps are designed to replace T8 or T12 medium bi-pin fluorescent lamps. They are engineered for single or double-ended wiring options and will not light unless ballast is bypassed. Commercial venues, schools, hospitality, health care . any large scale lighting application . will benefit from immediate energy savings and less maintenance.

Technical Information

Amperage
0.088-0.038 Amp
Average Rated Life
50000 hr
Base
G13
Beam Angle
210
Beam Spread
210
Bulb Shape
T8
Color Temperature
3500 K
Correlated Color Temp
3500 K
Dimmable?
No
Incandescent Equivalent
50 W
Indoor Outdoor
Indoor;Outdoor
Lens Color
Gloss,White
Lens Material
Glass
Lumens
17,000 Lumen
Material
Glass
Operating Temperature
-20 degrees C
Power Factor
0.9
Size
48 in
Standard
CULus
Technology Type
LED
Type
T8
Voltage
120 Volt
Wattage
10.5 Watt
Wet Location
Damp

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Satco
Sub Brand
Satco

General Product Info

12-Digit UPC
045923119613
Finish
Gloss
GTiN
00045923119613
Housing Color
White
Product UPC
04592311961
Weight
0.44 lb

Dimensions

Length
48 Inch
Warranty Length
5 yr

Certifications and Compliance

Country of Origin
China
Features
  • 4-ft length
  • 10.5W
  • 25W/28W/30W/32W Fluorescent Replacement
  • Ballast Bypass Type B
  • 120-277V Range Voltage
  • Damp Location Rated
  • Suitable for use in enclosed fixtures
  • rated for use in damp locations
  • Glass Tube
  • 210-degree beam angle
Ballasting Requirements
  • Ballast Bypass
Installation Notes
  • Not for use in vapor tight fixtures.
