ABB RC55PT INS VINYL PIN TERM NO12-

Manufacturer: Thomas & Betts | Catalog # RC55PT | North Coast Part # 206767
$178.82/c (100 ea)
ea
Order in multiples of 500 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page

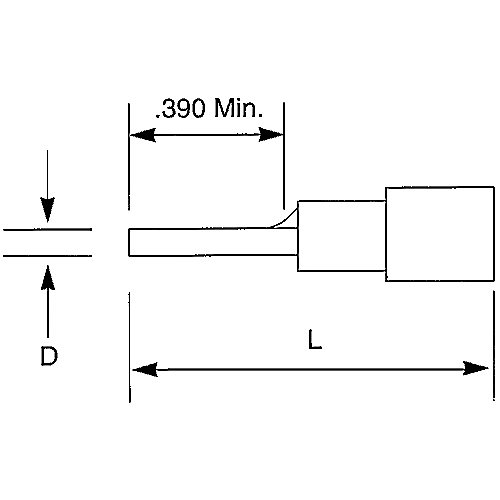

Vinyl Insulated Pin Terminal, Length 1.04 Inches, Pin Length .390 Inches, Diameter .106 Inches, Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated, 500 Pack

Technical Information

Conductor Size
12-10 AWG
Insulation Material
PVC
Insulation Type
Insulated Vinyl
Material
Copper
Standard
UL E9809
Temperature Rating
105 degrees C
Type
Vinyl Insulated Pin Terminal
Voltage
300 Volt
Wire Size
12-10 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210034201
Color
Yellow
Finish
Electro Tin Plated
GTiN
05414363159391
Product UPC
78621003420

Dimensions

Length
1.06 Inch
Features
  • Provides an easy and effective way to terminate stranded wire into European/metric-style terminal blocks.
Notes
  • Most terminals can be put on Mylar Tape for reel fed applications by adding the suffix M to the bulk catalog numbers. (I.e. 12050 tool and application dies).
