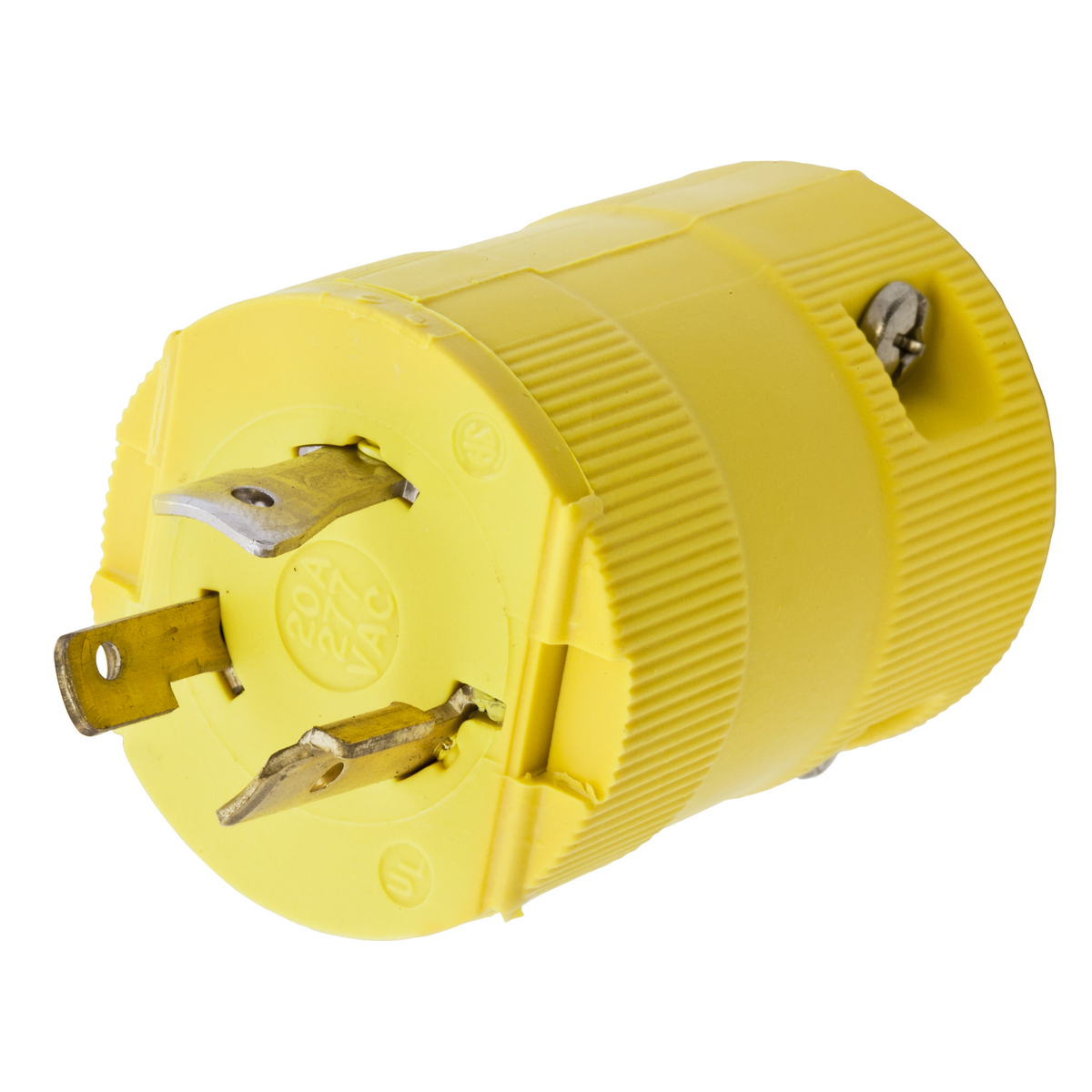

Hubbell HBL2331VY Locking VAL Plug, 20A 277V, L7-20P, YL

Manufacturer: Hubbell / Kellems | Catalog # HBL2331VY | North Coast Part # 207714
$31.85/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Valise®, Male Plug, 20A 277V AC, 2-Pole 3-Wire Grounding, NEMA L7-20P, Screw Terminal, Yellow Nylon.

Technical Information

Amperage
20 Amp
Applications
Face Plate
Conductor Size
18-10 AWG
Cord Type
All Listed Portables
Current
20 Amp
Horsepower
2 hp
Material
Stainless Steel
Mounting Type
Screw
NEMA

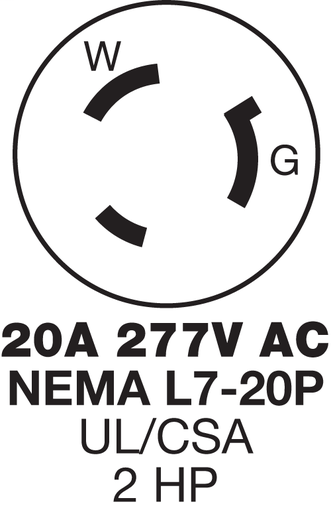

L7-20P
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size

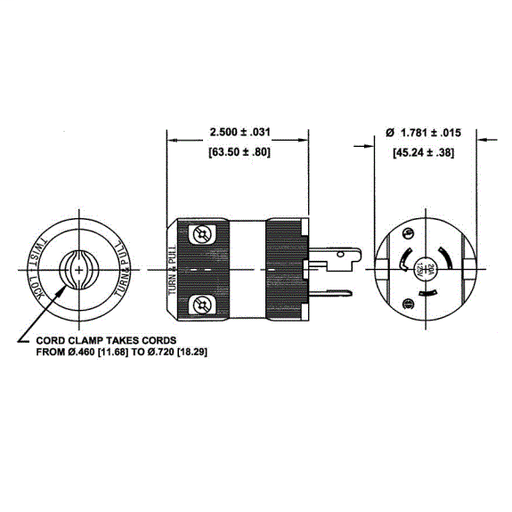

1.78 in x 1.78 in x 2.50 in
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
Type
Stamped, 1-Gang
Voltage
277 Volt
Wattage
5540 Watt
Wire Count
3
Wire Size
18-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®, Valise®

General Product Info

12-Digit UPC
783585235684
Color
Yellow
Construction
Stamped
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Finish
Brushed
GTiN
00783585235684
Product UPC
78358523568
Weight
0.20 lb

Dimensions

Height
2-1/2 Inch
Length
1.78 Inch
Width
1.78 in

Certifications and Compliance

Country of Origin
Puerto Rico
Features
  • Powerful cord grip prevents conductor slippage and strain on wiring terminals
  • Totally insulated impact and crush resistant nylon body
  • Unique patented clamp type terminals provide a superior electrical connection by bundling the conductor strands when clamps are tightened
  • Standard Product
