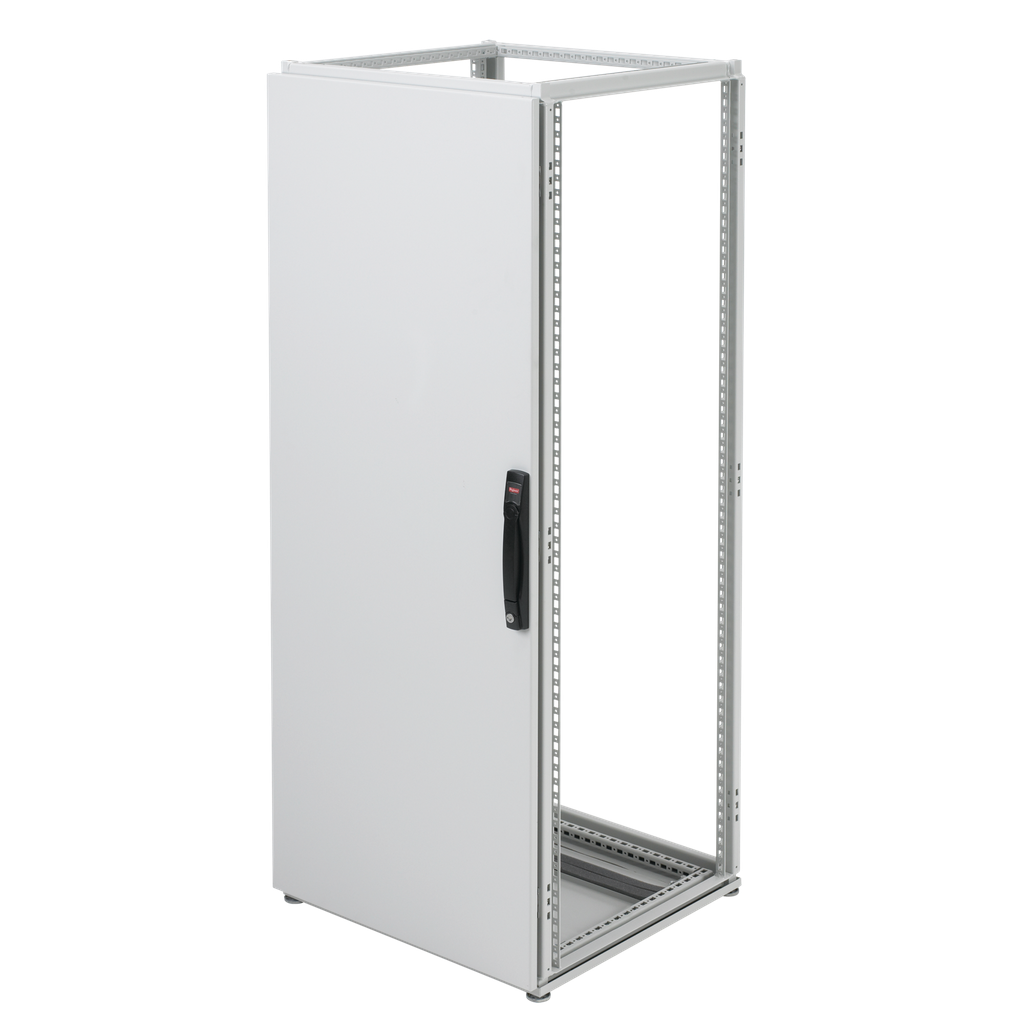

Product image for Hoffman PDS226 Solid Doors, fits 2200x 600mm, Lt Gray, Steel

Email

Hoffman PDS226 Solid Doors, fits 2200x 600mm, Lt Gray, Steel

Manufacturer: nVent Hoffman | Catalog # PDS226 | North Coast Part # 208816

$975.43/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Solid Doors include a removable door bar system on doors taller than 700 mm and wider than 400 mm. Hinge side is reversible. A flush bezel latch operates the 3-point latching system. Doors for 700-mm frames have 2-point latching. Hidden hinges (130-degree swing) permit attachment to the front or back of each enclosure frame. The use of a side-door adapter or a cable entry cabinet allows doors to be attached to the sides of the enclosure frame.

Technical Information

Applications
Controls and Drives; Power Distribution
Color Coding
RAL 7035
Gauge
16 AWG
Material
Steel
Size
fits 2200x600mm
Type
Doors and Door Accessories

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
ProLine

General Product Info

12-Digit UPC
783510949907
Color
Light Gray
Finish
Powder Coated
GTiN
00783510949907
Product UPC
78351094990
Weight
56 lb

Dimensions

Height
3 Inch
Length
86 Inch
Thickness
1.52 mm
Width
25.50 in
Features
  • EMC doors are finished with paint over plated surfaces
  • Optional data pockets, door stops, grounding kits and 180-degree hinges are available
  • Hinges have easy slide retained hinge pins
  • Door gasket is foam-in-place urethane to provide a resilient, seamless seal
  • Two grounding studs are furnished. All mounting hardware is included
