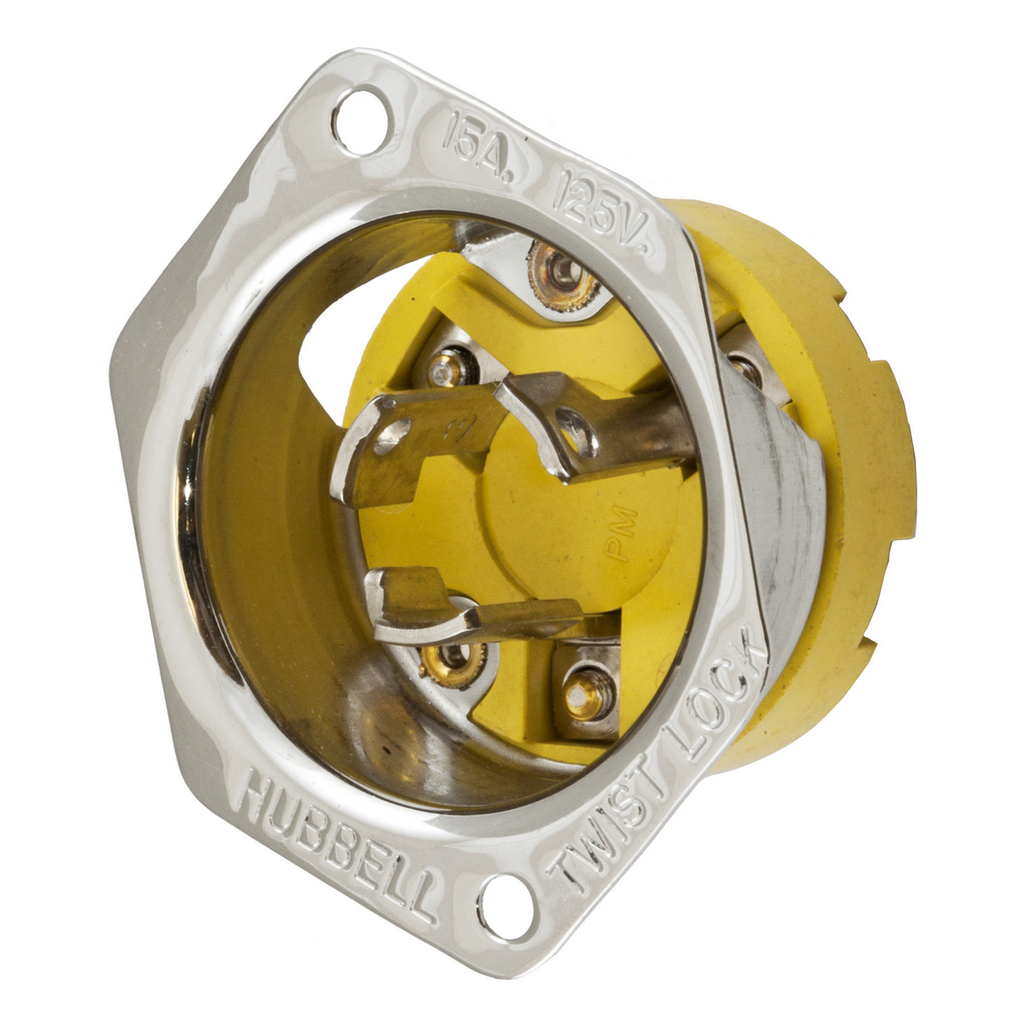

Product image for HWDK HBL47CM16 LKG FLG-INLT, CM, 15
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

HWDK HBL47CM16 LKG FLG-INLT, CM, 15

Manufacturer: Hubbell / Kellems | Catalog # HBL47CM16 | North Coast Part # 209822
$68.86/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page
Locking Devices, Twist-Lock®, Marine Grade, Flanged Inlet, 15A 125V, 2-Pole 3-Wire Grounding, NEMA L5-15P, Screw Terminal, Stainless Steel Casing, Yellow Melamine

Technical Information

Amperage
15 Amp
Applications
Marine Wiring Devices
Conductor Size
14 AWG
Current
15 Amp
Dielectric Strength
Withstands 2,000V minimum
Grade
Marine
Material
Thermoplastic
Mounting Type
Screw, Wall
NEMA
L5-15P
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
TC Connection
Screw Terminals
Temperature Rating
-40 degrees C
Type
Flanged, Straight, Marine Grade
Voltage
125 Volt
Wattage
1875 Watt
Wire Count
3
Wire Size
18-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585237039
Color
Yellow
Environmental Conditions
Corrosion-Resistant
GTiN
00783585237039
Product UPC
78358523703
Weight
0.10 lb

Dimensions

Height
1.54 Inch
Length
2.42 Inch
Width
2.420 in

Certifications and Compliance

Country of Origin
USA
Features
  • Heat resistant thermoset construction
  • Stainless steel casing
  • #5-40 terminal screws
  • Mounting screws included
  • Corrosion Resistant, Metallic Flange
