Hubbell HBL20445B 30 Amp 480 Volt 3-Pole 4-Wire Red Locking Plug

Manufacturer: Hubbell / Kellems | Catalog # HBL20445B | North Coast Part # 210944
$397.52/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Hubbellock®, Industrial, Male Plug, 30A 3-Phase 480V AC, 3-Pole 4-Wire Grounding Hubbellock® Plug, Red nylon housing, Thermoset interior, Non-NEMA, Screw Terminal

Technical Information

Amperage
30 Amp
Applications
Heavy Duty Industrial
Conductor Size
10-8 AWG
Cord Type
Portable
Current
30 Amp
Material
Plastic
Mounting Type
Cord
Number of Poles
3 Pole
Number of Wires
4 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA Standard,UL Standard
TC Connection
Pressure Terminal Screws
Type
Standard Sized, Straight
Voltage
480 Volt
Wire Count
4
Wire Size
10-6 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Hubbell-Lock®

General Product Info

12-Digit UPC
783585017266
Color
Black,White
Environmental Conditions
Indoor Dry unless protected by additional means
GTiN
00783585017266
Product UPC
78358501726
Weight
0.9 lb

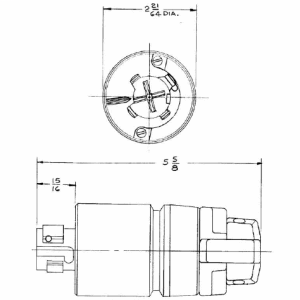

Dimensions

Height
5.63 Inch
Length
2.33 Inch
Width
0.94 in

Certifications and Compliance

Country of Origin
USA
Features
  • Molded-in male contacts are resistant to damage and provide a consistently positive connection
  • Insulated non-metallic housing enhances safety and abuse resistance
  • Box terminals in conjunction with screws with pressure pads provide maximum termination strength and dependability
  • Three-piece clamp assembly provides maximum strain relief and protects against entry of moisture and dust
