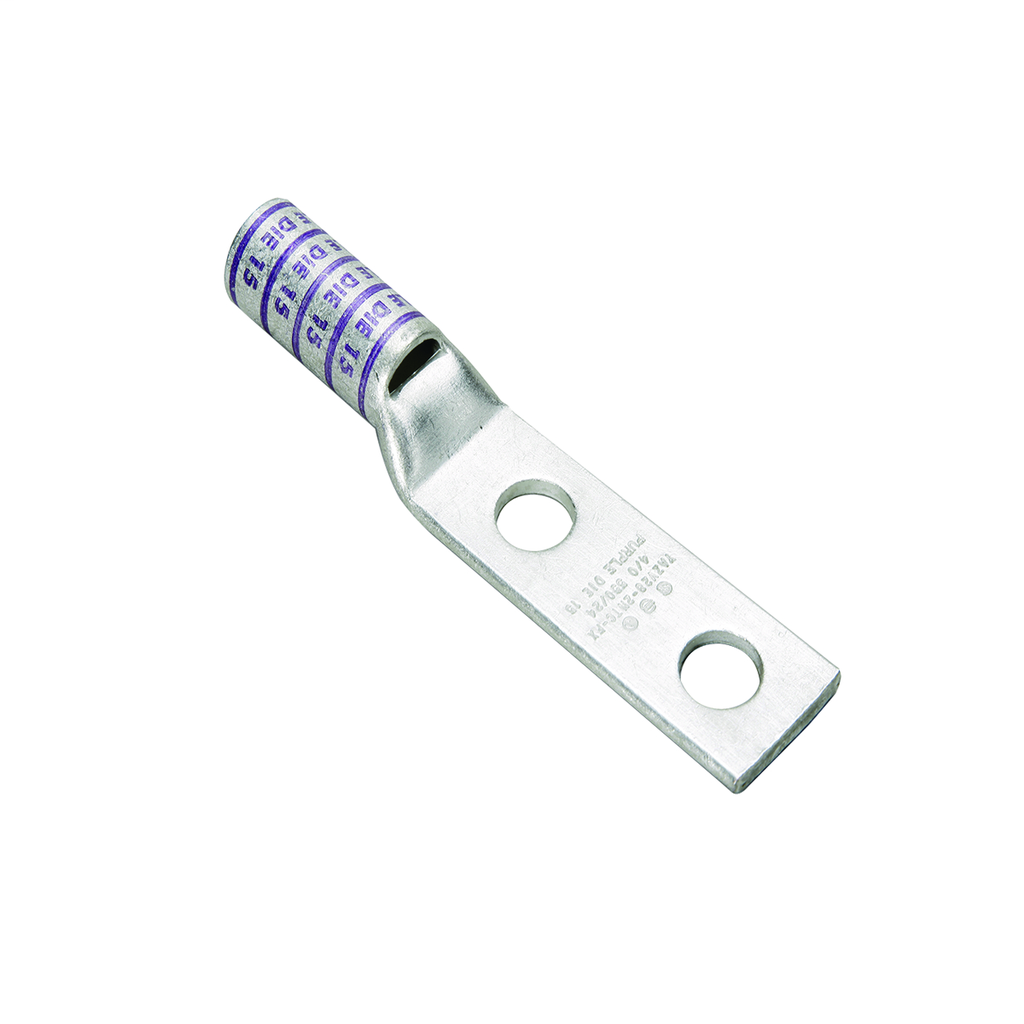

BUR YAZ3C2N CULUG- 3AWG-LONG W/PORT

Manufacturer: Burndy | Catalog # YAZ3C2N | North Coast Part # 210993
$20.76/ea
Adding...
Log in or register to view your price, purchase history, and more!
38 available

For Delivery

Order by 4:00pm PT for delivery Monday
Not available for delivery*
Check your local branch
Specification Sheet
3 AWG CU, Two Hole, 1/2 Stud Size, 1-3/4 Hole Spacing, Long Barrel, Inspection Window Internal Chamfer, Tin Plated, UL/CSA, 90°C, Up to 35kV, White Color Code, 9 Die Index.

Technical Information

Applications
For Code Conductor
Cable Size
3 AWG, 2 AWG Solid, 25 SQ-MM For Class 2 Conductor
Color Coding
White
Conductor Material
Copper
Conductor Size
2 AWG
Connection Type
Terminal
Material
Copper
Max Voltage
35000 V
Number of Holes
2 Hole
Plated?
Yes
Plating Type
Tin - Electro Plated
Stud Size
0.5 in
Type
Long Barrel, Skive, Tin Plated
Voltage
35,000 Volt

Manufacturer Information

Family Brand Name
Burndy
Sub Brand
HYLUG

General Product Info

GTiN
00781810227664
Product UPC
78181022766

Dimensions

Height
0.38 Inch
Hole Size
14 mm
Length
4.62 Inch
Overall Length
4.62 in
Width
0.83 in

Certifications and Compliance

Country of Origin
USA
CSA
Yes
  • UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, With Inspection Window, Tongue Angle: Straight, Temperature Rating: 90 DEG C, Wire Strip Length: 1-5/16 IN, Finish: Electro-Tin Plated, Color Code: White, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W3CRT Die, (2), Hydraulic: BCT500HS, Y500CTHS Tool, W3CRT Die, (2), Y35, Y39, Y750, PAT750 Tool, U3CRT Die, (2), Y46 Tool, U3CRT Die With PUADP-1 Adapter, (2), Dieless Tools (number Of Crimps): Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V, MY29-3, MY29-11, MRC840 Tool, (2), Y1MRTC Tool, (4), Die Index: 9
