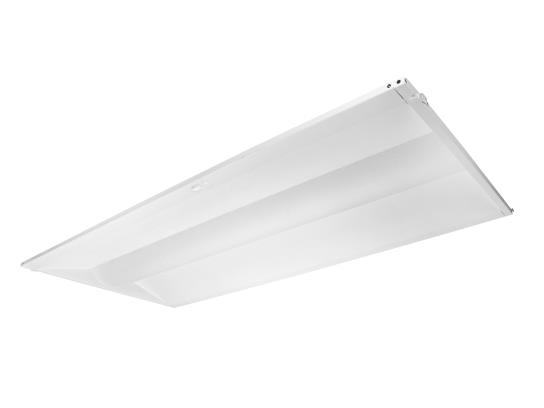

Product image for MXL TRK24D25WCSCR 25W TROFFER
Email

MXL TRK24D25WCSCR 25W TROFFER

Manufacturer: Maxlite Lighting | Catalog # TRK24D25WCSCR | North Coast Part # 2112466
$243.07/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Maxlite's innovative Troffer Retrofit Kit offers an economical solution to upgrade existing fixtures to LED technology. The Troffer Retrofit kit can be retrofitted into most existing troffers in under 15 minutes.Optional trim plates can be included and are a great way to give a "clean" look to the installed fixture. With a Wattage and CCT select option, each unit provides up to 9 variations of the product giving flexibility to the end users and distributors.

Technical Information

Ambient Temperature
-4 degrees F
Color Temperature
3500 K
Correlated Color Temp
3500 K
Efficacy
125 LPW
Lumens
3,125 Lumen
Power Factor
0.9

Manufacturer Information

Brand
MaxLite

General Product Info

12-Digit UPC
767627007958
Finish
White
Product UPC
76762700795
Weight
14.33 lb

Dimensions

Height
2.4 Inch
Length
47.8 Inch
Warranty Length
10 yr
Width
23.9 in
Features
  • Power/Wattage selectable
  • CCT Selectable: 3500K/4000K/5000K for 20W & 25W models
  • Controls Ready - can be paired with the new cMax controls nodes
  • On EM mode, The fixture CCT will be set to 5000K
  • On EM mode, the fixture output a minimum of 700 lumens for 90 minutes, when fully charged
  • Dimming: 0-10V with 5-100% Dimming Range with Dim-to-off capability
Accessory Products
  • CN-REMOTE
  • CN-REMOTE
  • CN-RTMST
  • CN-RTMST
  • CN-RTPSW
  • CN-RTPSW
  • NN-RTDHW
  • NN-RTPSW
  • NN-RTW
  • NPP-300W
  • WNS5-W
