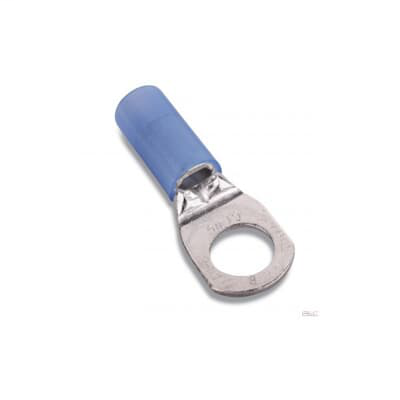

Product image for Thomas & Betts RE6-38 3/8 Inch 6 AWG Stud Blue Insulated Nylon Ring Tongue Terminal
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

Thomas & Betts RE6-38 3/8 Inch 6 AWG Stud Blue Insulated Nylon Ring Tongue Terminal

Manufacturer: Thomas & Betts | Catalog # RE6-38 | North Coast Part # 211997
$1,185.11 /c (100 ea)
ea
Order in multiples of 20 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page
Nylon Insulated Large Ring Terminal, Length 1.76 Inches, Width .61 Inches, Maximum Insulation .420, Bolt Hole 3/8 Inch, Wire Range 6, Color Blue, Copper, Tin Plated

Technical Information

Barrel Type
Brazed/Overlapping Seam, Funnel
Conductor Size
6 AWG
Flamability Class
Rated V-2 Per UL94
Insulation Material
Nylon
Insulation Type
Insulated Nylon
Material
Copper
Standard
UL E9809
Stud Size
3/8 in
Temperature Rating
105 degrees C
Terminal Type
RE
Type
Short Sleeve
Voltage
600 Volt
Wire Size
6 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210872087
Color
Blue
Finish
Electro Tin Plated
GTiN
05414363159940
Product UPC
78621087208
Used With
Round Conductors

Dimensions

Height
3 Inch
Thickness
.04 in
Width
1.3 in
Certifications
  • CSA
  • UL
Features
  • Funneled Barrel Entry, Deep Internal Serrations, Brazed or overlapping seams.
Notes
  • Not available on Mylar Tape.
