Hoffman PDS78F Doors for Upper Front of PROLINE Sloped Fronts, fits 707/882x 800mm, Lt Gray, Steel

Manufacturer: nVent Hoffman | Catalog # PDS78F | North Coast Part # 213237
$1,018.68/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet

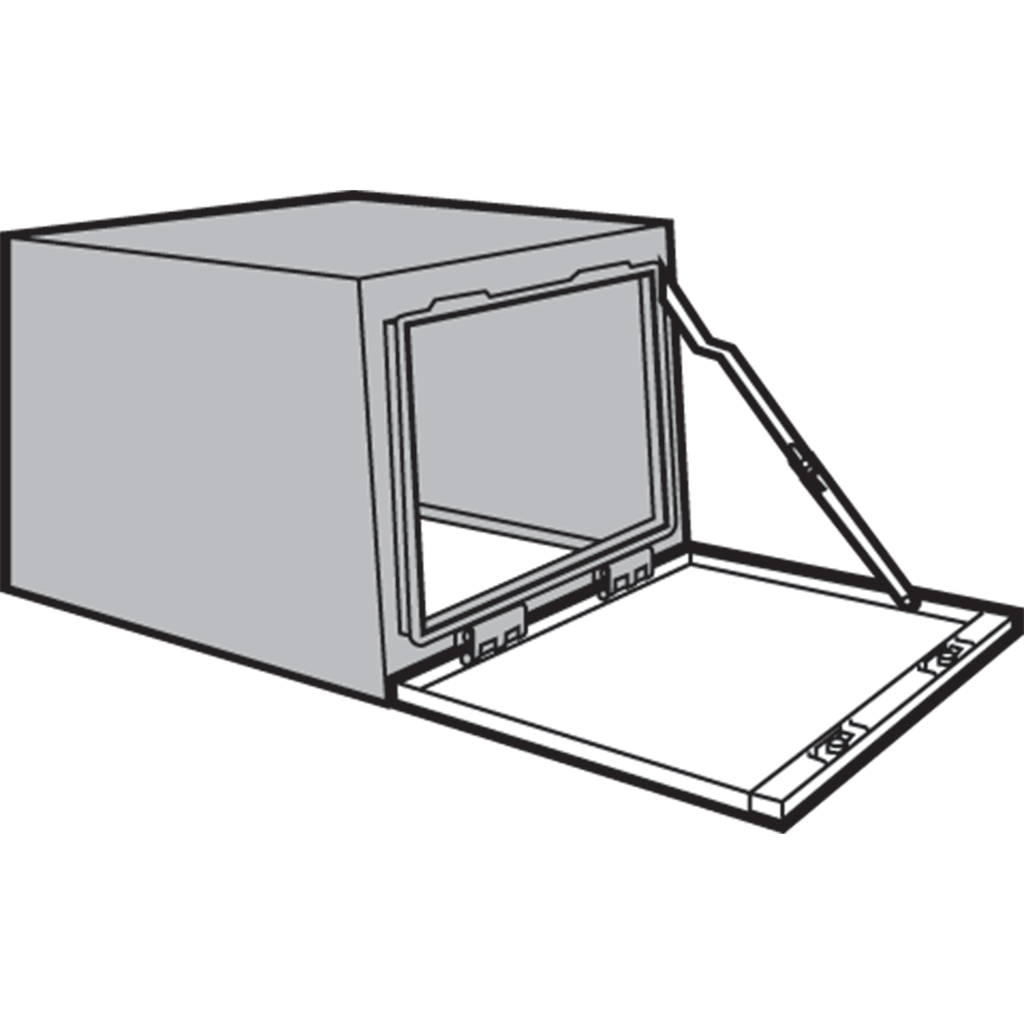

Solid doors are available with or without windows. Doors are hinged at lower edge and have quarter-turn latches. A stop arm assembly holds the door at 95 degrees (horizontal) from its closed position. Standard latch and insert options are available. Ground stud and mounting hardware are included. Seamless polyurethane foam-in-place gasket assures watertight and dust-tight seal. Window doors feature a maximum size .25-in.-thick polycarbonate window with a smoke-gray tint. Window is field-replaceable.

Technical Information

Applications
Controls and Drives
Color Coding
RAL 7035
Material
Steel
Size
fits 707/882x800mm
Type
HMI Enclosure Systems

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
ProLine

General Product Info

12-Digit UPC
783510366896
Color
Light Gray
Finish
Powder Coated
GTiN
00783510366896
Product UPC
78351036689
Weight
24.5 lb

Dimensions

Depth
22.23 Inch
Height
27.56 Inch
Length
33 Inch
Thickness
1.52 mm
Width
31.5 in
Features
  • Doors are hinged at lower edge and have quarter-turn latches
  • Ground stud and mounting hardware
