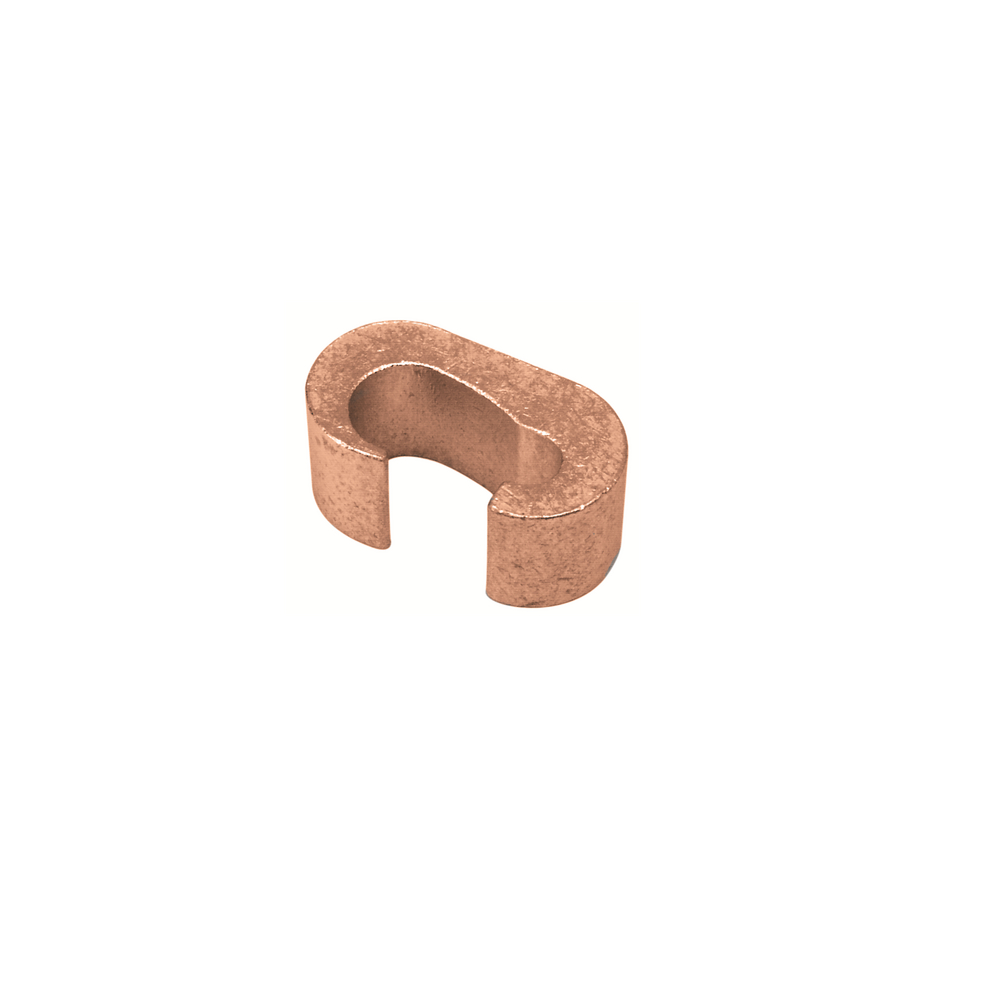

Product image for Burndy YCHC34TC2 Cu compression C-Tap, 500-4/0(350-4/0)(Main), 2-6 Str/Sol(2-8)(Tap), 8-14(8-14)(Tap2), Tin plated, Brown, 1104 Index , Flame retardent
Image thumbnail 0
Image thumbnail 1
Email

Burndy YCHC34TC2 Cu compression C-Tap, 500-4/0(350-4/0)(Main), 2-6 Str/Sol(2-8)(Tap), 8-14(8-14)(Tap2), Tin plated, Brown, 1104 Index , Flame retardent

Manufacturer: Burndy | Catalog # YCHC34TC2 | North Coast Part # 21368
$66.44/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Buy American Compliant Buy American Compliant Specification Sheet
Cu compression C-Tap, 500-4/0(350-4/0)(Main), 2-6 Str./Sol(2-8)(Tap), 8-14(8-14)(Tap2), Tin plated, Brown, 1104 Index , Flame retardent.

Technical Information

Applications
For general Purpose Applications
Color Coding
Brown
Conductor Material
COPPER
Conductor Size
4/0 AWG-500 kcmil
Connection Type
C-TAP
Material
Copper
Max Voltage
35000 V
Plated?
Yes
Plating Type
Tin - Electro Plated
Size
2.45 IN Height X 1.26 IN Width X 0.88 IN Length
Tap Size
2, 4, 6, 8 AWG
Temperature Rating
90 C
Type
YCHC Series

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Burndy

General Product Info

12-Digit UPC
781810013731
Finish
Tin-Plated,Tin-Plated
GTiN
00781810013731
Product UPC
78181001373

Dimensions

Height
2.45 Inch
Length
0.94 Inch
Overall Length
24 mm
Width
1.22 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
CSA
No
Features
  • Range taking C-tap that allows for less inventory as one C-tap can accommodate a multitude of wire combinations
  • Manufactured from high conductivity wrought copper providing low resistance for excellent electrical conductivity
  • Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
  • Connectors are clearly marked with stamping
