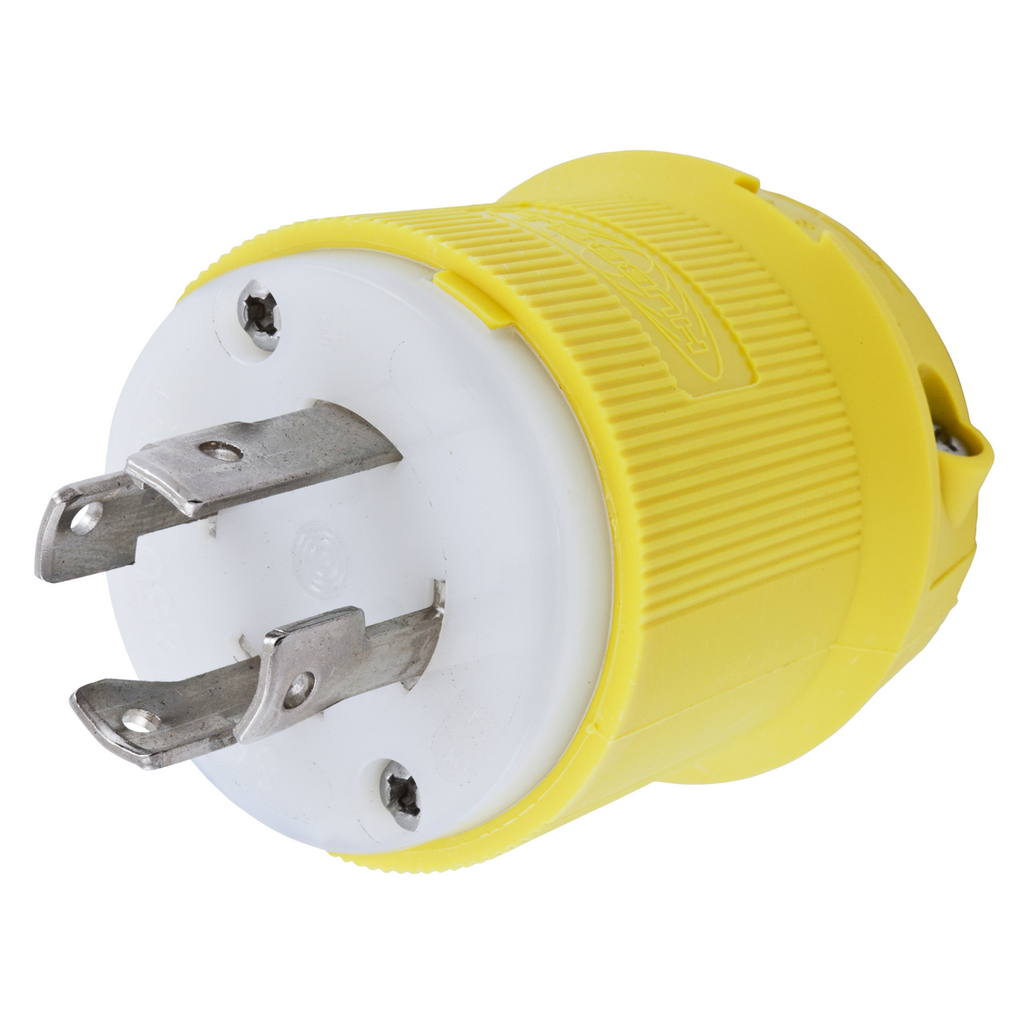

Product image for Hubbell HBL27CM21 Locking Plug, CM, 30A 3PH 250V L15-30P
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Hubbell HBL27CM21 Locking Plug, CM, 30A 3PH 250V L15-30P

Manufacturer: Hubbell / Kellems | Catalog # HBL27CM21 | North Coast Part # 213893
$120.26/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Marine Grade, Male Insulgrip® Plug, 30A 3-Phase Delta 250V AC, 3-Pole 4-Wire Grounding, NEMA L15-30P, Screw Terminal, Corrosion resistant, Yellow.

Technical Information

Amperage
30 Amp
Applications
Extra Heavy Duty Industrial/Marine
Conductor Size
16-8 AWG
Cord Size
0.35 - 1.15 in
Cord Type
Portable
Current
30 Amp
Dielectric Strength
2000 V
Grade
Marine
Grounding
Yes
Horsepower
3 hp
Material
Nylon
Mounting Type
Cord
NEMA
L15-30P
Number of Phases
3 Phase
Number of Poles
3 Pole
Number of Wires
4 Wire
Operating Temperature
-40 degrees C
Size
2.33 in x 2.33 in x 2.75 in
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
TC Connection
Terminal Screws
Temperature Rating
-40 to 75 degrees C Continuous
Type
Standard Sized
Voltage
250 Volt
Wattage
7500 Watt
Wire Count
4
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®, Insulgrip®

General Product Info

12-Digit UPC
783585039572
Color
Yellow
Environmental Conditions
Corrosion-Resistant
GTiN
00783585039572
Product UPC
78358503957
Weight
0.30 lb

Dimensions

Height
2-3/4 Inch
Length
2.33 Inch
Width
2.33 in

Certifications and Compliance

Country of Origin
USA
Features
  • Nickel plated blades and stainless steel screws provide maximum corrosion resistance.
  • Ribbed nylon housing provides a secure grip and impact and chemical resistance.
  • Superior cord grip design protects terminations from excess strain.
  • Integral dust shield protects wiring chamber from dust or contaminants.
  • Corrosion Resistant
