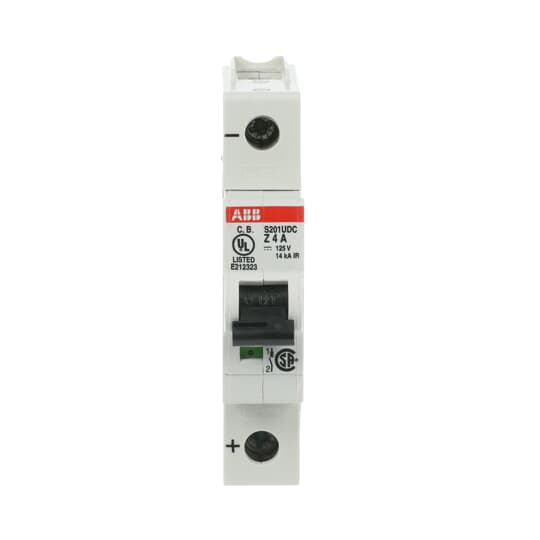

Product image for ABB S201UDC-Z4 S200UDC MCB 1P Z 4A
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

ABB S201UDC-Z4 S200UDC MCB 1P Z 4A

Manufacturer: ABB Inc. | Catalog # S201UDC-Z4 | North Coast Part # 2139616
$133.11/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Miniature Circuit Breaker, Supplementary Protector, Rated Current 4 Amps, 1 Pole, Interrupt Rating 14 kA, Trip Curve K, Electromechanic Tripping Mechanism for Short Circuit Protection, Voltage up to 60/125 VDC, DIN Rail Mounted, Finger Safe and Multi-Function Terminals, UL 489, CSA 22.2 No. 5

Technical Information

Amperage
4 Amp
Applications
Designed to Provide Maximum Protection with a Very Low Short Circuit Trip Setting; Example: Semiconductors, Control Circuits
Frequency
50/60 Hz
Interrupt Rating
14 kAIC
Number of Poles
1 Pole
Operating Temperature
-25 To 55 degrees C
Standard
UL 489
Trip Type
Z
Type
High Performance MCB Provides Compact Supplementary, Energy Limiting, Circuit Protection
Voltage
60/125 Volt

Manufacturer Information

Brand
ABB

General Product Info

12-Digit UPC
804325570084
Box Quantity
1
GTiN
04016779826174

Dimensions

Height
92 mm
Length
71 mm
Width
17.5 mm
