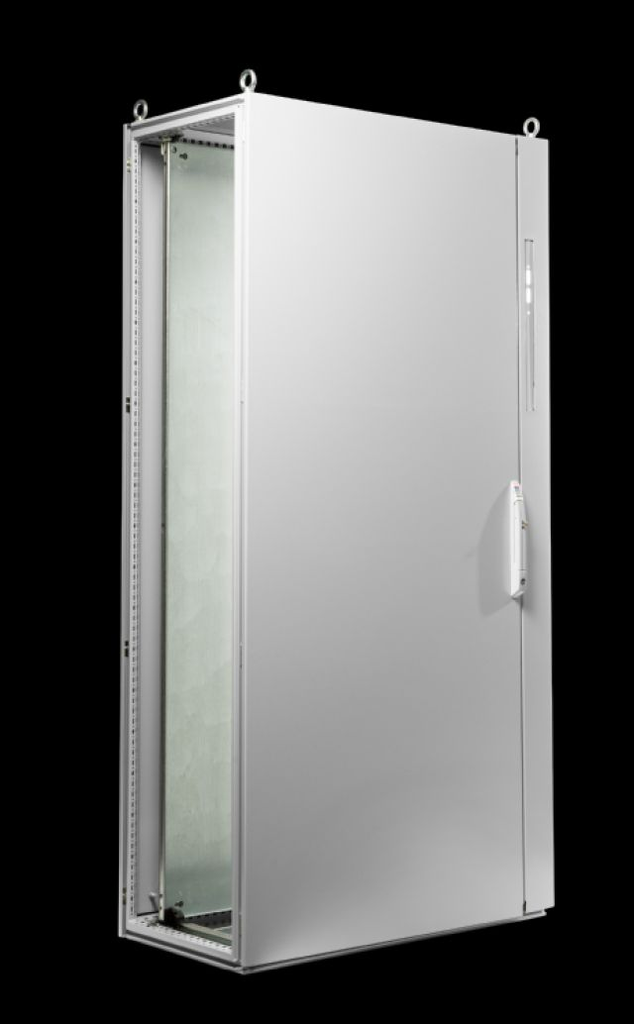

Product image for RTL 9951153 2200H0800W0600D TS FMDC
Image thumbnail 0
Image thumbnail 1
Email

RTL 9951153 2200H0800W0600D TS FMDC

Manufacturer: Rittal | Catalog # 9951153 | North Coast Part # 2140977
$3,270.90/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Offering mechanical interlock where doors cannot be opened while system is energized and all doors must be closed to power the system ON. Simplified installation, slimmer flange door providing access behind the operator handle. Adapter plates for high and low amperage handles available.

Technical Information

Applications
Commercial, Industrial
IP Rating
55
Material
Steel
Number of Doors
1
Size
87 (H) x 31 (W) x 24 (D) IN
Standard
CSA,E2186,UL
Type
Premium, Small

Manufacturer Information

Brand
Rittal

General Product Info

12-Digit UPC
639889874473
Color
Light Gray
Finish
Powder Coated
GTiN
00639889874473
Product UPC
63988987447

Dimensions

Depth
600 mm
Height
2200 mm
Width
800 mm
Supply Includes
  • Enclosure frame TS 8 with doors and roof plate
  • Rear panel
  • Gland plate
  • Mounting plate
  • 4 eyebolts
  • Padlock Comfort handle
  • Flange Door with Low Amperage Adapter Plate, pre-installed
  • Ride-Up Roller 4538000, pre-installed
Benefits
  • Enhanced and greatly simplified hardware installation, A rigid trim door to accept a variety of high and low amperage operator handles, Optional high amperage adapter plate allowing future system upgrade without performing additional cutouts in the field while maintaining Type 12 rating, Blank adapter plate option for non-disconnect conversions, Easy-to-follow installation instructions for a variety of operator handle manufacturers, Reduced width hinged trim door design for more usable panel mounting space, Hinged and side access behind the operator handle cutout to make mounting the operator handle and connecting hardware easier, Expandable and modular enclosure compatible with all standard TS 8 accessories
