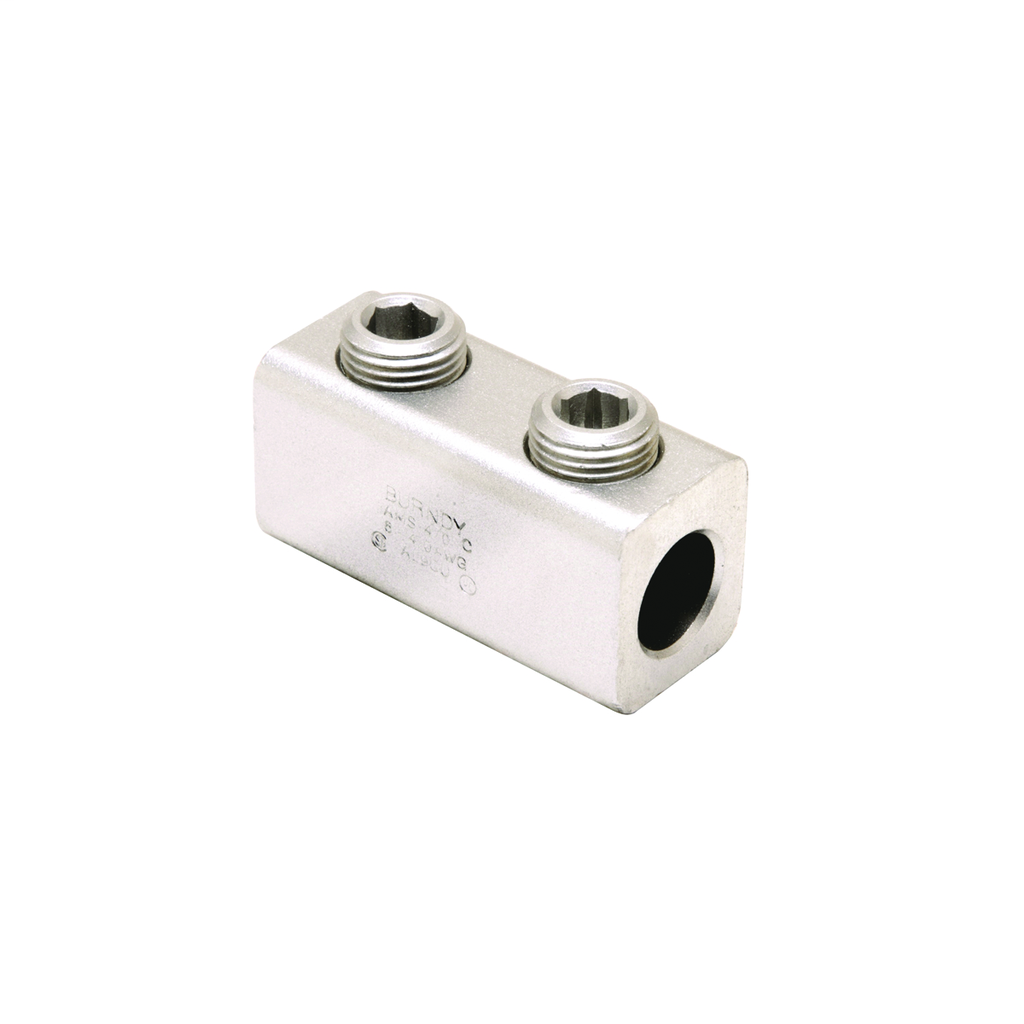

Product image for Burndy AMS4/0 Aluminum Mechanical Splice, 4/0-6 AWG, 9/16" Screw Dia, 2 Screws, 5/16" Hex Size, Al/Cu Rated, Tin Plated
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Burndy AMS4/0 Aluminum Mechanical Splice, 4/0-6 AWG, 9/16" Screw Dia, 2 Screws, 5/16" Hex Size, Al/Cu Rated, Tin Plated

Manufacturer: Burndy | Catalog # AMS4/0 | North Coast Part # 214110
$44.44/ea
ea
Log in or register to view your price, purchase history, and more!
86 available

For Pick Up

at Auburn Closes 3:00pm PT
86 available

For Delivery

Order by 4:00pm PT for delivery tomorrow
Not in local stock *
Check another branch
Buy American Compliant Buy American Compliant Specification Sheet
Aluminum Mechanical Splice, 4/0-6 AWG, 9/16" Screw Dia, 2 Screws, 5/16" Hex Size, Al/Cu Rated, Tin Plated.

Technical Information

Applications
For Use With Copper And Aluminum Conductors
Conductor Size
1 AWG
Connection Type
In-Line
Material
Aluminum
Plated?
Yes
Plating Type
Tin
Size
2-5/16 IN Length X 1 IN Width X 1-3/32 IN Dimension H1 X 1.28 IN Maximum Dimension H2
Temperature Rating
194degrees F
Type
AMS, Dual Rated

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Burndy

General Product Info

12-Digit UPC
781810241028
Finish
Tin Plated
GTiN
00781810241028
Product UPC
78181024102

Dimensions

Depth
0.56 Inch
Height
1.28 Inch
Length
3-1/4 Inch
Overall Length
59 mm
Width
0.91 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Mexico
CSA
Yes
Features
  • Standard mounting hole diameter is .562 for 1/2 bolts
  • The end wall within the cable socket of this design is solid and pressure tight
  • Connectors are pre-filled and plugged with electrical joint compound
  • Marked with catalog number, conductor size and die reference
  • Meets performance requirements of ANSI C119.4
