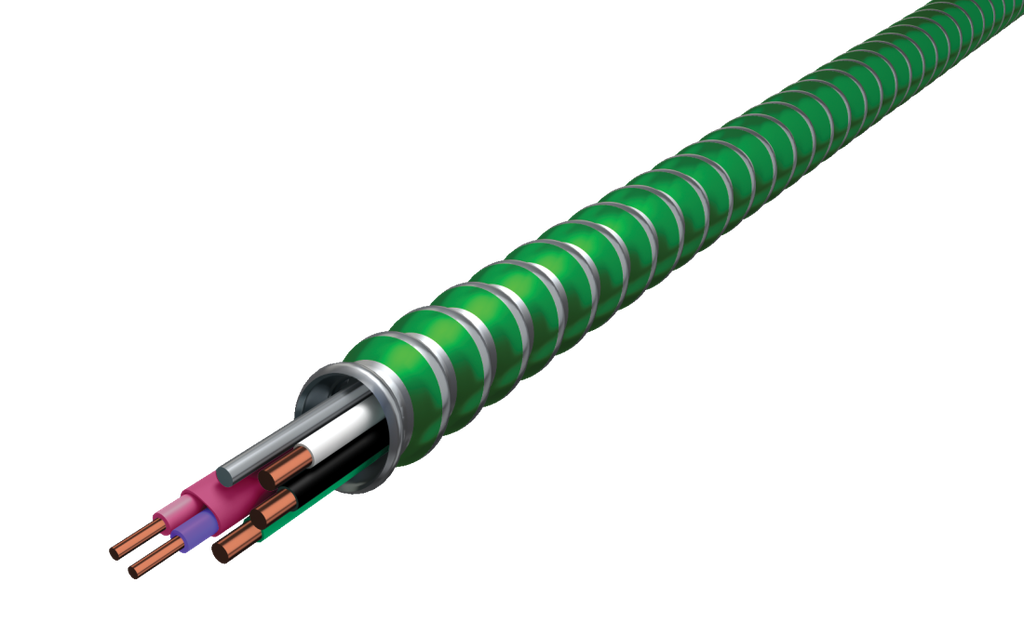

Product image for AFC LH58-42-L00 16-2(TPJ)/12-2 Stranded (Purple, Pink-Black, White, Green) MC Luminary HCF® Lite, Green Interlocked Aluminum Armor, Type MC-PCS, 250ft Coil
Email

AFC LH58-42-L00 16-2(TPJ)/12-2 Stranded (Purple, Pink-Black, White, Green) MC Luminary HCF® Lite, Green Interlocked Aluminum Armor, Type MC-PCS, 250ft Coil

Manufacturer: AFC MC Cable | Catalog # LH58-42-L00 | North Coast Part # 2150408
$3,166.65/m (1000 ft)
ft
Order in multiples of 250 (pack qty)
Log in or register to view your price, purchase history, and more!
1,500 available

For Pick Up

at Auburn Closes 3:00pm PT
1,500 available

For Delivery

Order by 4:00pm PT for delivery tomorrow
Not in local stock *
Check another branch
Buy American Compliant Buy American Compliant Specification Sheet
Atkore's MC Luminary HCF Lite is the solution for LED dimming in Healthcare commercial construction projects. The cables consist of an aluminum interlocked armor, wrapped around power conductors and purple and pink control conductor pair covered with an overall pink PVC jacket for quick and easy identification. MC Luminary HCF features a wrap-free design; instead of an overall assembly tape wrapping the twisted conductors, a protective polypropylene covering is extruded directly over the THHN insulation on the power conductors, reducing installation time and waste. MC Luminary HCF lite incorporates the redundant ground required for NEC 517.13. The armor in combination with full-sized aluminum ground/bonding conductor, along with the full-sized green insulated copper grounding conductor, provide the necessary grounding redundancy in healthcare settings.

Manufacturer Information

Brand
AFC Cable Systems|Kaf-Tech

General Product Info

12-Digit UPC
077680365736
GTiN
00077680365736
Product UPC
07768036573

Dimensions

Length
250 Foot

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
Features
  • Cable System. Technically equivalent and economically superior to traditional raceway and wire installations.
  • Wrap Free. Protective polypropylene covering is extruded directly over the THHN insulation to eliminate the need for an overall assembly tape wrapping the twisted conductors reducing installation time and general waste on the jobsite.
  • Grounding. Armor plus full-sized aluminum ground wire is the equipment grounding mean, second equipment grounding means is full sized insulated copper grounding conductor.
  • One Pull. Combines power and control circuits under a single interlocked armor. Save up to 30% on labor and installation costs compared to the traditional installation method of running power and the control circuit afterward.
  • 2020 NEC® Sec 410.69 Compliant. Manufactured with purple and pink control conductors covered with an overall pink PVC jacket for easy identification.
  • Save Energy & Money. Reduce consumption with daylight harvesting dimmable lighting
  • System Compatible with 0-10 volt DC solid state lighting control systems & digital signal
  • RoHS Compliant. Aluminum armored cables are RoHS compliant
  • Buy American. Aluminum armored cables are Buy American compliant
  • Made in USA of US and/or imported materials
