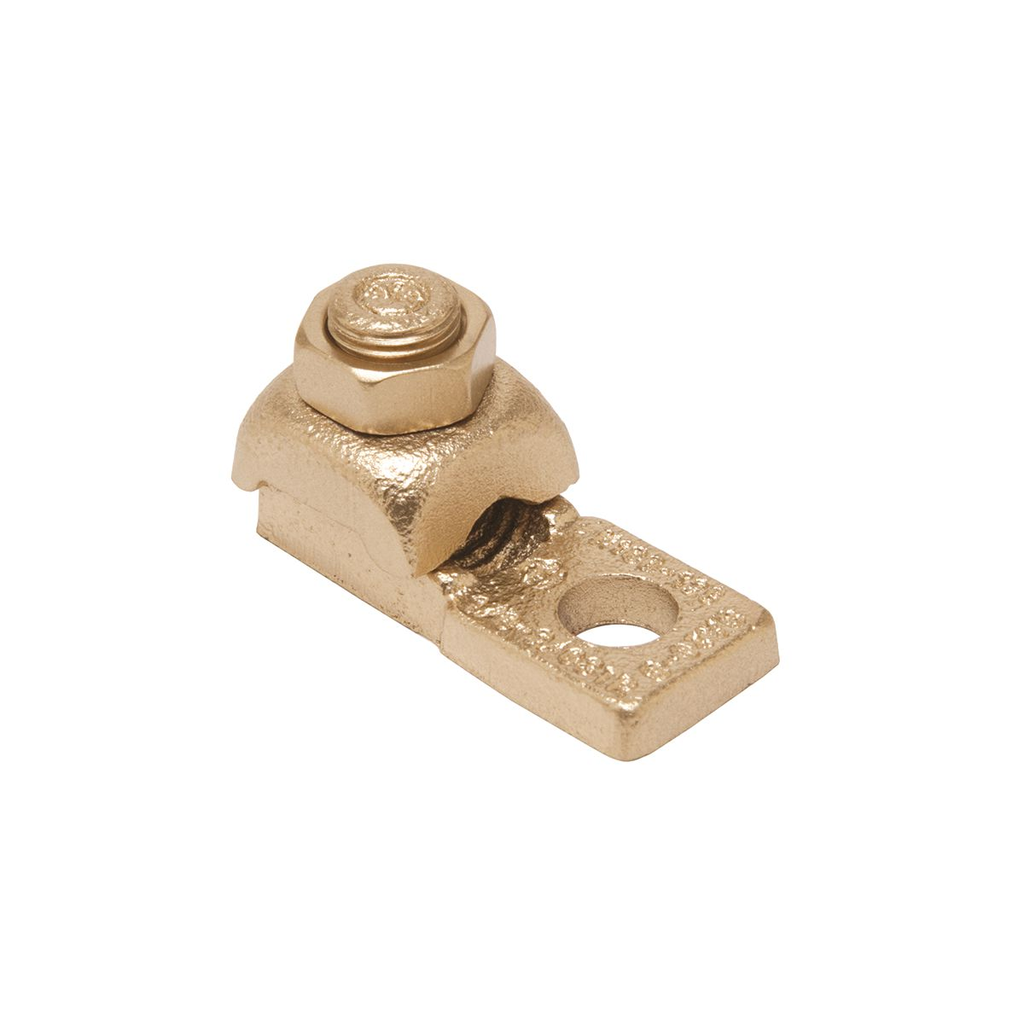

Product image for Burndy QA1CB Copper Terminal, Heavy Duty, 1 Hole, 4-1 AWG (Str), 1/4" Stud, 1 Screw
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Burndy QA1CB Copper Terminal, Heavy Duty, 1 Hole, 4-1 AWG (Str), 1/4" Stud, 1 Screw

Manufacturer: Burndy | Catalog # QA1CB | North Coast Part # 215634
$81.15/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Buy American Compliant Buy American Compliant Specification Sheet
Copper Terminal, Heavy Duty, 1 Hole, 4-1 AWG (Str), 1/4" Stud, 1 Screw.

Technical Information

Applications
For Joining a Wide Range of Cable to Equipment Pads or Bar
Conductor Size
4-1 AWG
Conductor Type
Copper
Connection Type
Single Clamp
Material
Copper
Mounting Hole Size
0.28 in
Plated?
No
Plating Type
Unplated
Standard
CSA,E2186,UL
Temperature Rating
194 degrees C
Type
K2A-U, Universal, Dual-Rated

Manufacturer Information

Brand
Burndy
Sub Brand
Qiklug™

General Product Info

12-Digit UPC
781810312285
GTiN
00781810312285
Product UPC
78181031228

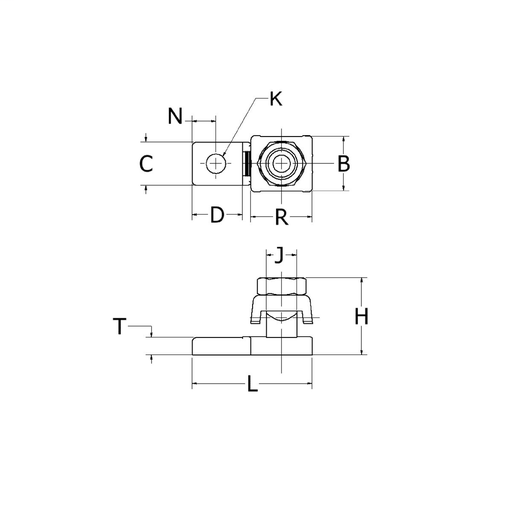

Dimensions

Height
1 Inch
Hole Size
0.28 in
Length
1-3/4 Inch
Overall Length
44 mm
Width
0.62 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Mexico
CSA
No
Features
  • QIKLUG™ Terminals feature compact size, high copper alloy terminal for joining cables to equipment pads or bars
  • Each element accommodates a wide range of cable
  • One-wrench installation
