ABB HUB31/2-G PVC CTD ZINC HUB CONN

Manufacturer: Thomas & Betts / Ocal | Catalog # HUB31/2-G | North Coast Part # 215950
$1,168.82/ea
ea
Log in or register to view your price, purchase history, and more!
4 available

For Pick Up

at Auburn Closes 3:00pm PT
4 available

For Delivery

Order by 4:00pm PT for delivery tomorrow
Not in local stock *
Check another branch
Specification Sheet

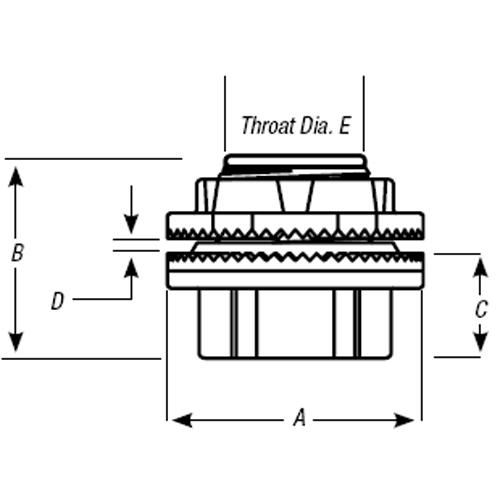

PVC Coated Zinc Hub Connector with Thermoplastic Insulated Throat, Pipe Size 3-1/2 Inch/91 Metric, Overall Diameter 5.00 Inch/127.00 Millimeters, Maximum Panel Thickness 0.25 Inch/6.35 Millimeters, Throat Diameter 3.41 Inch/86.61 Millimeters, Nitrile Rubber (Buna-N) Sealing Ring, Dark Gray

Technical Information

Applications
For Positively Bond Conduit to Box or Enclosure
Material
Zinc/Metal
Size
3-1/2 in, 91 mm
Temperature Rating
105 degrees C
Trade Size
3-1/2 Inch
Type
Hub Connector

Manufacturer Information

Brand
ABB
Sub Brand
Ocal®

General Product Info

12-Digit UPC
704508388751
Box Quantity
4
Color
Dark Gray
Construction Type
External Thread
Finish
PVC Coated
GTiN
00704508388751
Housing Material
Other
Product UPC
70450838875

Dimensions

Diameter
91 mm
Features
  • Coated with a nominal .002 inch (2 mil) blue urethane on the interior, before PVC Coating is applied.
  • A minimum .040 inch (40 mil) PVC Coating is bonded to the exterior.
  • Innovative sealing ring and groove.
  • Hexagonal body and locknut design.
  • Insulated throat and sharper and deeper teeth.
  • Pressure sealing sleeves to protect the connection.
