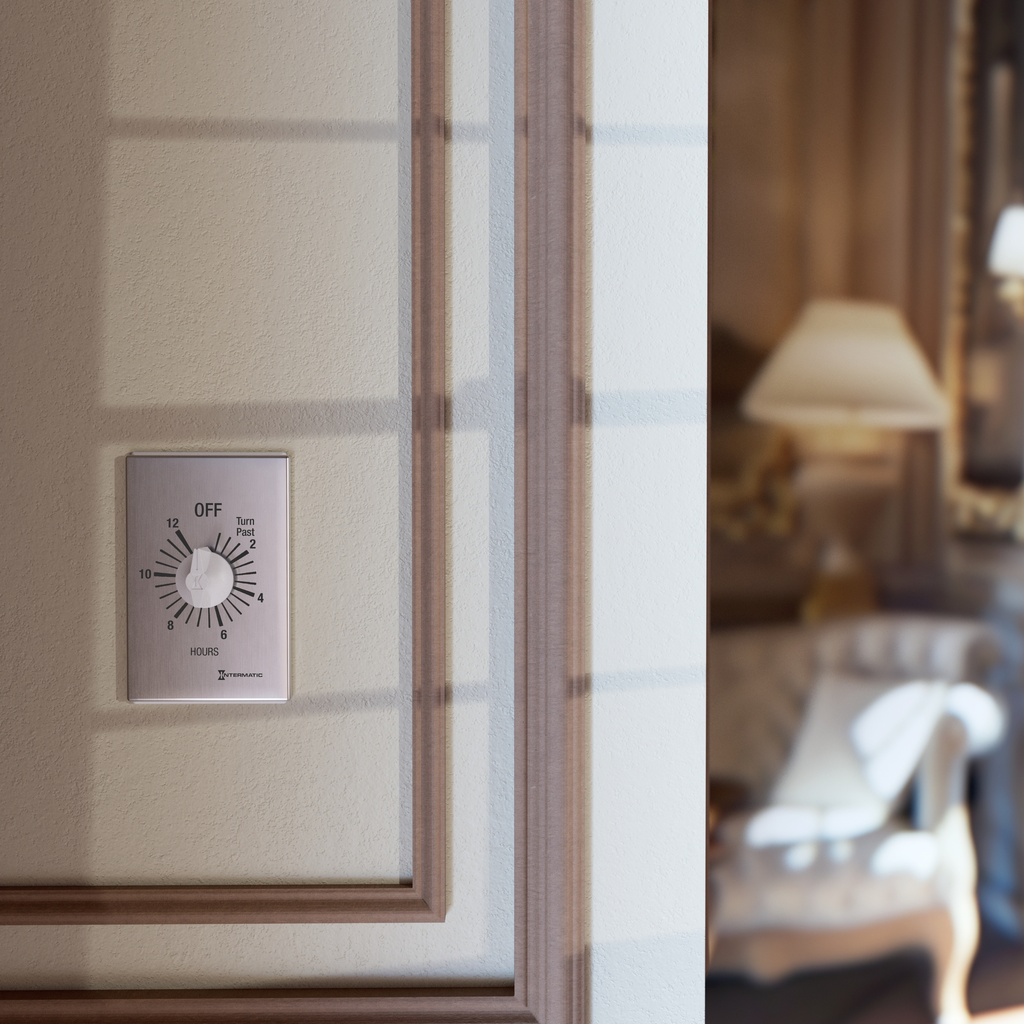

Intermatic FF12HC 12 Hour 125 to 277 VAC 60 Hz SPST Countdown Timer

Manufacturer: Intermatic | Catalog # FF12HC | North Coast Part # 216243

$38.60/ea
ea
Adding...
Log in or register to view your price, purchase history, and more!
3 available

For Delivery

Order by Monday 4:00pm PT for delivery Tuesday
Out of stock, call for availability
The FF Series Commercial Countdown Timers are designed to replace any standard wall switch and do not require electricity to operate. These energy-efficient switches automatically limit the ON times for fans, lighting, motors, heaters, and other energy consuming loads. A commercial "brushed metal" look plate (plastic construction) meets NEC requirements.

Technical Information

Action
SPST
Amperage
15 Amp
Applications
Indoor, CFLs Lighting, Fans, Electric Motors, Heaters, HVACR
Blade Dimensions
1.6 in W x 1.19 in D x 2.79 in H
Connection Type
Teeter Type
Contact Configuration
1 NO
Contact Material
Tungsten
Contact Rating
7 AMP @ 125 VAC (Tungsten), 20 AMP @ 125 VAC (Resistive), 10 AMP @ 250/277 VAC (Resistive)
Frequency
50/60 Hz
Input Voltage
125-277 V
Material
Plastic
Max Operating Temperature
104 degrees F
Min Operating Temperature
32 degrees F
Mounting Type
Wall Mount
Number of Poles
1 Pole
Operating Temperature
155 degrees F
Power Source
1 hp at 120 VAC, 2 hp at 240 VAC
Size
2.79 HEIGHT X 1.6 WIDTH X 1.19 DEPTH IN, 70.86 HEIGHT X 40.64 WIDTH X 30.22 DEPTH MM
Standard
CCSAus Certified,HVACR,NEC,UL Listed,UL Recognized
Switch Type
SPST
TC Connection
Teeter Type
Temperature Rating
-40 to 155 F
Type
Commercial Spring Wound Auto-Off
Voltage
125-277 VAC

Manufacturer Information

Family Brand Name
Intermatic

General Product Info

Color
Brushed Metal
GTiN
00078275005259
Product UPC
07827500525
Weight
0.301 lb

Dimensions

Depth
1.25 in
Height
4-1/8 Inch
Warranty Length
1 yr
Width
1.75 in
