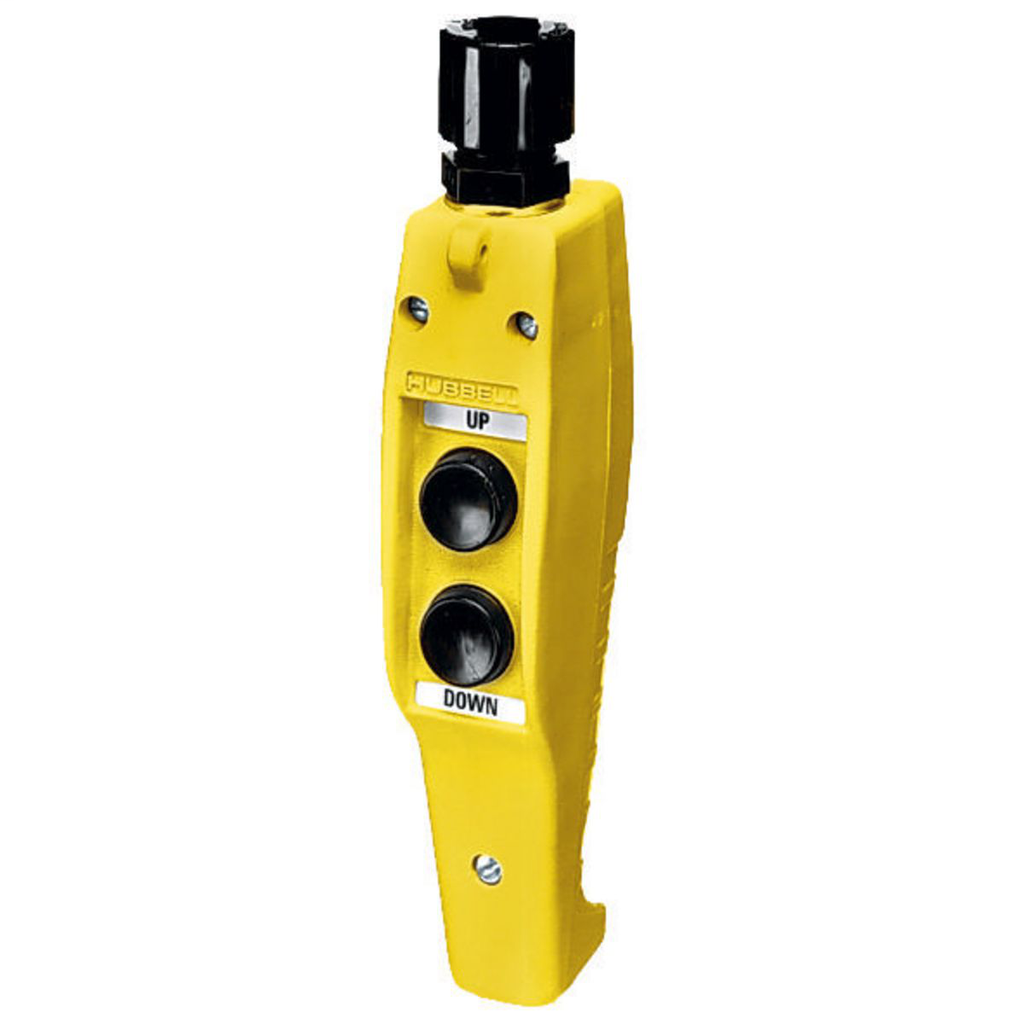

Hubbell Wiring Devices CPB20 2-Button 1-Speed NEMA 4X Compact Pendant Push Button Station

Manufacturer: Hubbell / Kellems | Catalog # CPB20 | North Coast Part # 216455
$168.39/ea
ea
Adding...
Log in or register to view your price, purchase history, and more!
4 available

For Delivery

Order by Friday 4:00pm PT for delivery Monday
Out of stock, call for availability
Specification Sheet Product Catalog Page
Switches and Lighting Controls, Industrial Grade, Pendant Controls, Two Button Compact Version, Single Speed Normally Open, Pilot Duty, 240VAC, Terminal Screws, Yellow

Technical Information

Actuator
Push Buttons
Applications
For Start-Stop
Blade Dimensions
26.9 mm W x 60.5 mm D x 231.9 mm H
Contact Configuration
Momentary
Contact Rating
Pilot Duty Only
Enclosure
Integral
Enclosure Type
Integral, NEMA 4X
Indicator
None
Material
Non-Metal
Mounting Type
Cable, Screw Terminal
Number of Holes
2 Hole
Number of Poles
2 Pole
Operating Temperature
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Size
Compact
Standard
UL
TC Connection
Terminal Screws
Temperature Rating
75 C Maximum Continuous, -40 C Minimum without Impact
Type
Compact, 1-Phase, 2-Pole
Voltage
250 Volt

Manufacturer Information

Family Brand Name
Hubbell Wiring Device Kellems
Sub Brand
Magnetic Starter Controls

General Product Info

Color
Yellow
GTiN
00783585106809
Product Series
Compact
Product UPC
78358510680
Weight
0.75 lb

Dimensions

Height
1.798 Inch
Length
7.178 Inch
Width
3.988 in

Certifications and Compliance

Country of Origin
USA
