Thomas & Betts 10RC-14CP 12-10 AWG 1/4 Inch Yellow Insulated Vinyl Ring Terminal

Manufacturer: Thomas & Betts | Catalog # 10RC-14CP | North Coast Part # 217253
$299.06/c (100 ea)
ea
Order in multiples of 20 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page

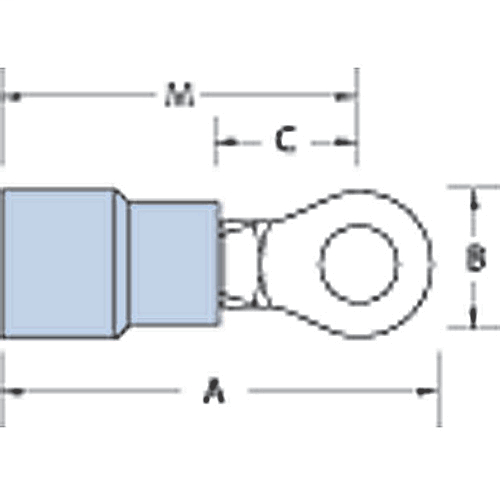

Vinyl-Insulated Ring Terminal, Length 1.16 Inches, Width .50 Inches, Maximum Insulation .210, Bolt Hole 1/4 Inch, Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated, Mini Pacl

Technical Information

Barrel Type
Brazed Seam
Conductor Size
12-10 AWG
Flamability Class
Rated V-0 Per UL94
Insulation Material
PVC
Insulation Type
Insulated Vinyl
Material
Copper
Standard
CSA,E2186,UL
Stud Size
1/4 in
Temperature Rating
105 degrees C
Terminal Type
RC
Type
Short Sleeve
Voltage
600 Volt
Wire Size
12-10 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210899015
Color
Yellow
Finish
Tin Plated
GTiN
00786210899015
Product UPC
78621089901
Used With
Round Conductors

Dimensions

Height
4.1 Inch
Thickness
.04 in
Width
7 in
Certifications
  • UL
  • CSA
Features
  • These terminals are self-insulated with a PVC insulation sleeve of extra length to give protection and relieve bending stress at wire's flex point. Brazed seam barrel is serrated to obtain high pull-out value.
