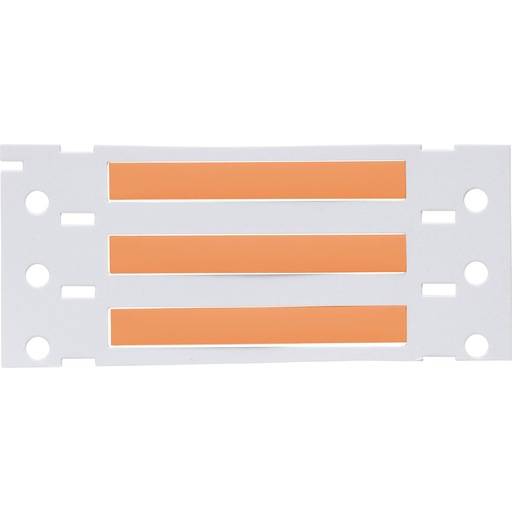

Brady PS-187-2-OR PermaSleeve Polyolefin Wire Marking Sleeves, 0.187" Dia x 2" W, Orange, Roll of 2500

Manufacturer: Brady | Catalog # PS-187-2-OR | North Coast Part # 2173696
$2,229.00/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
CA Prop65 Warning CA Prop65 Warning Specification Sheet
PermaSleeve® PS Heat-Shrink Polyolefin (B-342) wire marking sleeves combine speed, ease of use, and permanence to create long-lasting, high quality identification.

Technical Information

Applications
Cable & Wire Marking
Conductor Size
20-10 AWG
Material
Polyolefin
Max Temperature
135 degrees C
Min Temperature
-55 degrees C
Shrink Ratio
3:1
Type
Heat Shrink Tubing
Wire Size
20-10 AWG

Manufacturer Information

Brand
Brady Corporation
Sub Brand
PermaSleeve®

General Product Info

12-Digit UPC
662820990482
Color
Orange
Finish
Matte
GTiN
00662820990482
Product UPC
66282099048

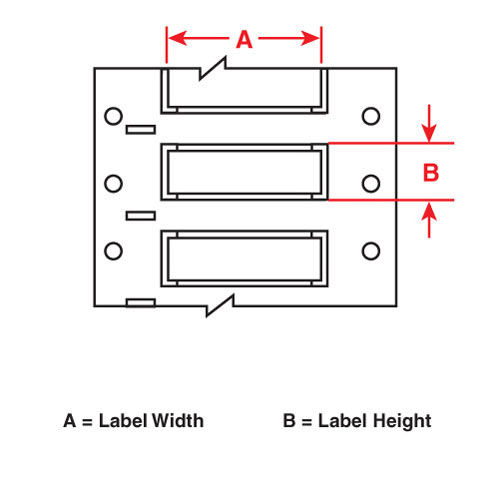

Dimensions

Diameter
0.187 Inch
Height
0.335 Inch
Roll Width
2 in
Width
2 in

Certifications and Compliance

CA Prop65 Warning
Y
Features
  • 3:1 heat shrinkable sleeve fit snugly around wires for maximum insulation protection and permanent identification
  • Fade-resistant and smudge-proof for superior aesthetic appearance
  • Cold resistant and flame-retardant with an operating temperature of -67°F to 275°F (-55°C to 135°C)
  • Meets SAE-AMS-DTL-23053/5C (Class 1), SAE-AS-81531, MIL-STD-202;RoHS Compliant;and UL Recognized
