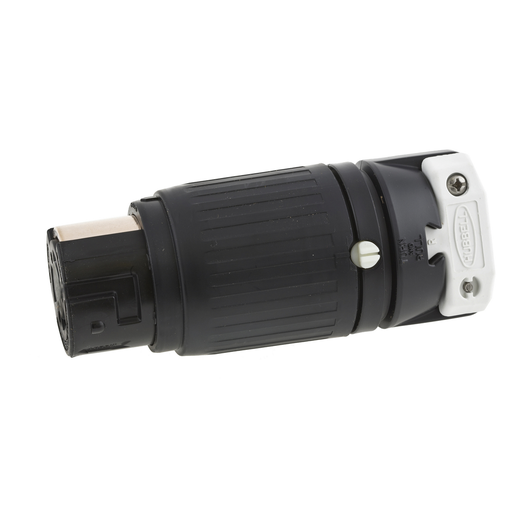

Product image for Hubbell HBL3764C 50 Amp 600 VAC/250 VDC 3-Pole 4-Wire Nylon Locking Connector
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Hubbell HBL3764C 50 Amp 600 VAC/250 VDC 3-Pole 4-Wire Nylon Locking Connector

Manufacturer: Hubbell / Kellems | Catalog # HBL3764C | North Coast Part # 217646
$383.03/ea
ea
Log in or register to view your price, purchase history, and more!
3 available

For Pick Up

at Auburn Opens Friday 5:00am PT
3 available

For Delivery

Order by Friday 4:00pm PT for delivery Monday
Not in local stock *
Check another branch
Specification Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Industrial, Female Insulgrip® Connector Body, 50A 250V DC/600V AC, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, Nylon housing thermoplastic polyester interior, Black

Technical Information

Amperage
50 Amp
Applications
Heavy Duty Industrial
Conductor Size
6 AWG
Connection Type
Pressure Screw
Current
50 Amp
Material
Plastic
Number of Conductors
4
Number of Poles
3-3 Pole
Number of Ports
3
Number of Wires
4 Wire
Operating Temperature
-40 degrees C
Size
Standard
Standard
CSA C22.2 No.42,UL 498
TC Connection
Pressure Screw Terminal
Temperature Rating
-25 to 75 degrees C with Impact, -40 to 75 degrees C without Impact
Type
Standard, Straight
Voltage
250 Volt
Wire Count
4
Wire Size
8-4 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®, Insulgrip®

General Product Info

12-Digit UPC
783585236421
Color
Black and White
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
GTiN
00783585236421
Product UPC
78358523642
Weight
1.05 lb

Dimensions

Height
6-1/2 Inch
Length
2.59 Inch
Width
2.59 in

Certifications and Compliance

Country of Origin
USA
Features
  • Box terminal with hex socket threaded slug, permits high clamping pressure on conductors without damaging strands
  • Heavy duty two-piece external cord clamp provides maximum strain relief
  • Thermoplastic polyester interior provides heat resistance and impact strength
  • Oversized contacts minimize operating temperature
  • Standard Product
