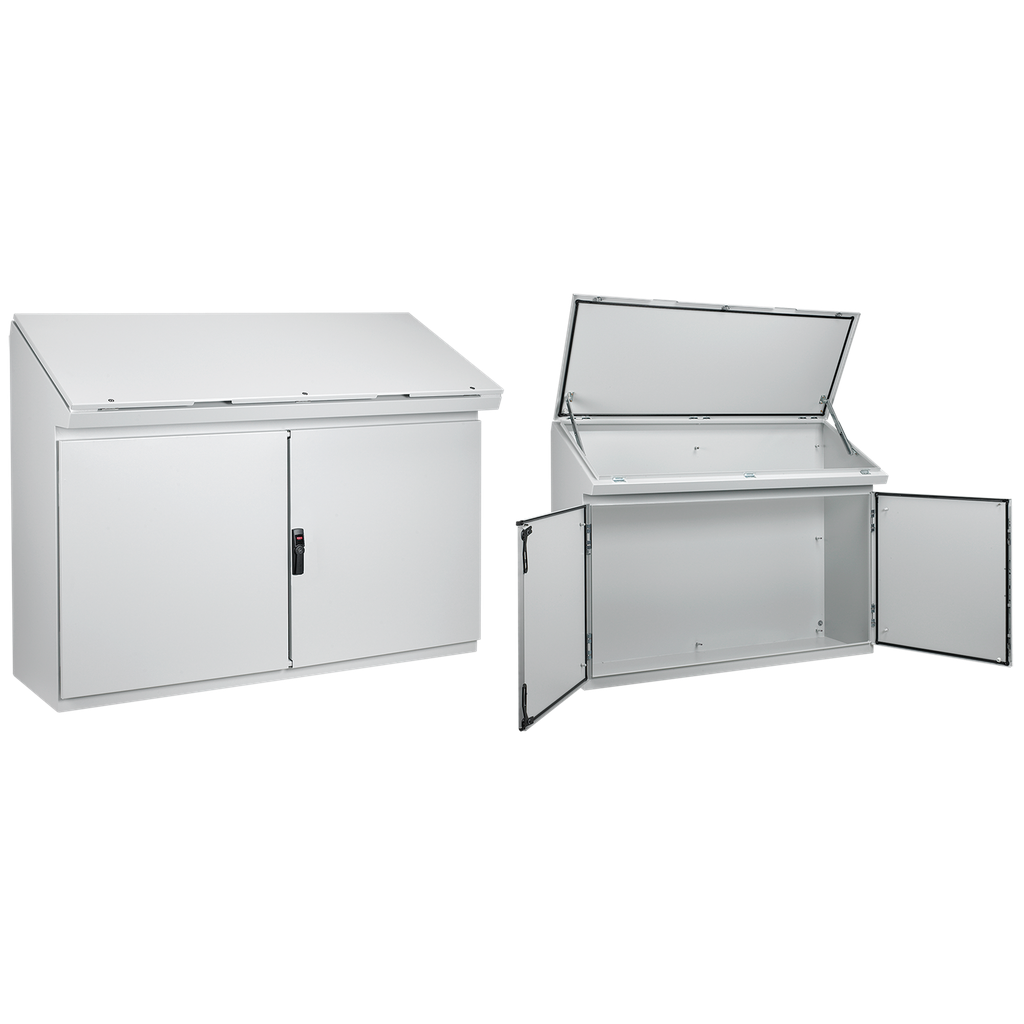

Product image for Hoffman PGLD12135DC PROLINE Gold Series Double-Bay Desk Console, Type 12, 1175x 1250x 469mm, Lt Gray, Steel
Email

Hoffman PGLD12135DC PROLINE Gold Series Double-Bay Desk Console, Type 12, 1175x 1250x 469mm, Lt Gray, Steel

Manufacturer: nVent Hoffman | Catalog # PGLD12135DC | North Coast Part # 217669
$3,791.21/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
The ProLine Gold Series Double-Bay Desk Console provides an ideal surface for mounting HMI controls such as keyboards, switches, lights or dials, and it is ergonomically designed so operators can sit or stand while working. With front and rear doors for easy access, the console provides a large space for mounting internal components and controls and can be configured in an arc by using the wedge accessory.

Technical Information

Applications
Controls and Drives
Color Coding
RAL 7035
Material
Steel
Size
1200x1300x500mm
Standard
CUL Listed Per CSA C22.2 No 94,File No. E61997,File Number E61997,IEC 60529,IP 55,NEMA/EEMAC Type 12,Type 12,UL 508A Listed
Type
Double Door, Double-Bay, Desk

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
ProLine

General Product Info

12-Digit UPC
783510143855
Color
RAL 7035 Light Gray
Finish
Powder Coated
GTiN
00783510143855
Product UPC
78351014385
Weight
239 lb

Dimensions

Depth
500 mm
Height
1200 mm
Length
56 Inch
Thickness
1.9 mm
Width
1300 mm
Features
  • 25-degree sloped top
  • Seams continuously welded and ground smooth
  • Top door prop allows for single-handed operation
  • Built-in top door handle
  • Quarter-turn latches hold top door securely closed
  • ProLine latching system and key locking swing handles on front doors and on rear doors of dual-access enclosures
  • Internal rails on dual-access enclosures facilitate mounting of ProLine internal components
  • Full access provides maximum mounting space and easy access to interior components
