3M M6-38RX M6-38RX RING NON-INS BTL

Manufacturer: 3M | Catalog # M6-38RX | North Coast Part # 217692

$3.02/ea
ea
Adding...
Log in or register to view your price, purchase history, and more!
10 available

For Delivery

Order by Thursday 4:00pm PT for delivery Friday
Out of stock, call for availability

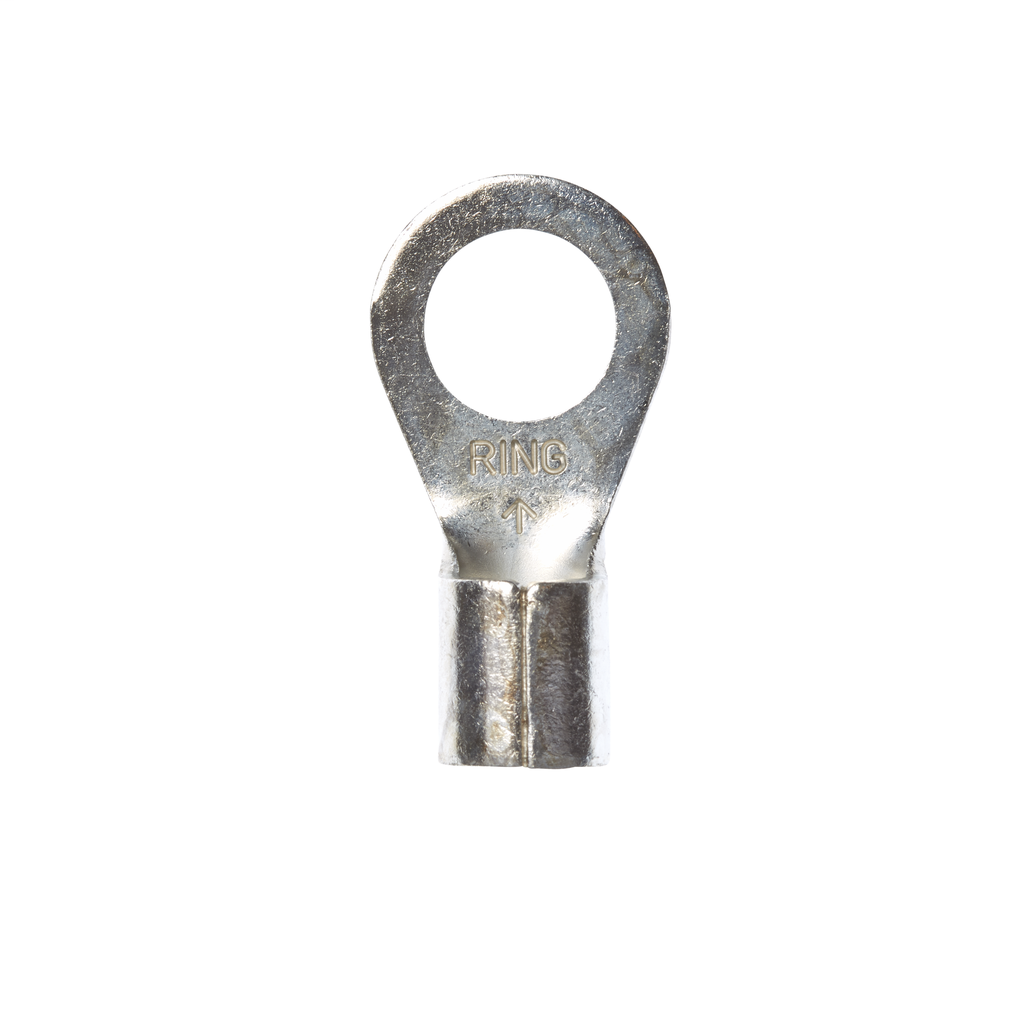

3M Scotchlok Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The non-insulated, brazed-seam barrel has a beveled mouth that guides the wire into position, and it withstands a maximum temperature of 347 degrees F (175 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Technical Information

Barrel Type
Brazed
Conductor Size
6 AWG
Insulation Material
Non-Insulated
Stud Size
3/8 in
Terminal Size
6 AWG
Terminal Style
Standard
Terminal Type
Ring
Type
Ring

Manufacturer Information

Family Brand Name
Scotchlok
Sub Brand
Scotchlok

General Product Info

GTiN
00051128587003
Product UPC
05112858700

Dimensions

Length
1.22 Inch
Overall Length
1.22 in
Thickness
0.05 in
Width
0.63 in
