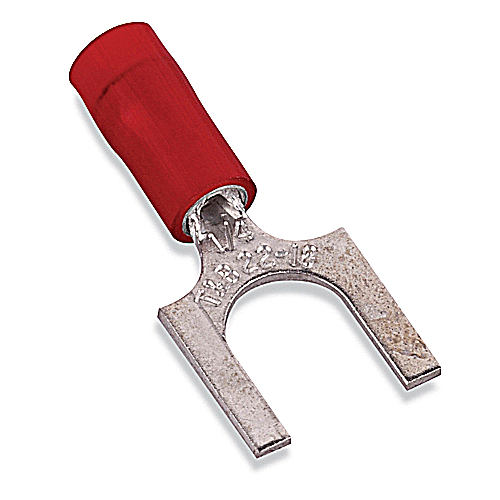

Product image for Thomas & Betts RA18-14F 22 to 16 AWG 1/4 Inch Stud Red Electrotinned Copper Nylon Insulated Fork Terminal
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Thomas & Betts RA18-14F 22 to 16 AWG 1/4 Inch Stud Red Electrotinned Copper Nylon Insulated Fork Terminal

Manufacturer: Thomas & Betts | Catalog # RA18-14F | North Coast Part # 218108
$368.94 /c (100 ea)
ea
Order in multiples of 100 (pack qty)
Log in or register to view your price, purchase history, and more!
500 available

For Pick Up

at Auburn Closes 4:00PM PT
500 available

For Delivery

Order by 4:00pm PT for delivery Monday
Not in local stock *
Check another branch
Specification Sheet
Nylon Insulated Fork Terminal, Length .95 Inches, Width .44 Inches, Maximum Insulation .136, Bolt Hole 1/4 Inch, Wire Range #22-#16 AWG, Color Red, Copper, Tin Plated

Technical Information

Conductor Size
22-16 AWG
Flamability Class
Rated V-2 Per UL94
Insulation Material
PVC
Insulation Type
Insulated Nylon
Material
Copper
Stud Size
1/4 in
Temperature Rating
105 degrees C
Terminal Type
RA
Type
Long Sleeve
Voltage
600 Volt
Wire Size
22-16 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210803951
Color
Red
Finish
Tin Plated
GTiN
05414363934233
Product UPC
78621080395
Used With
Round Conductors

Dimensions

Height
3 Inch
Thickness
.03 in
Width
1.3 in
Features
  • Inner bronze insulation grip sleeve lengthens flex radius of conductor and eliminates conductor creep. Nylon jacket is color-coded.
Certifications
  • CSA
  • UL
