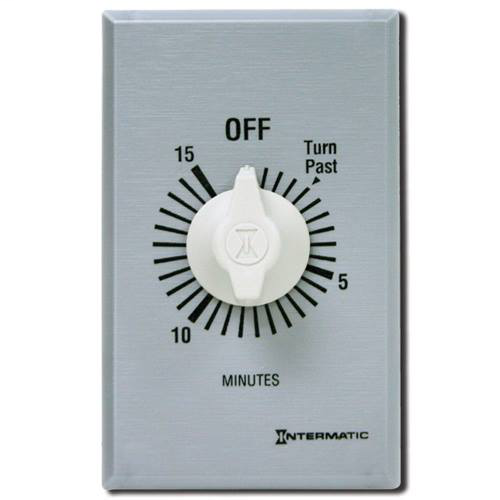

Intermatic FF15MC 15 Minute 125 to 277 VAC 60 Hz SPST Countdown Timer

Manufacturer: Intermatic | Catalog # FF15MC | North Coast Part # 218838

$38.60/ea
ea
Adding...
Log in or register to view your price, purchase history, and more!
4 available

For Delivery

Order by 4:00pm PT for delivery tomorrow
Not available for delivery*
Check your local branch
The FF Series Commercial Countdown Timers are designed to replace any standard wall switch and do not require electricity to operate. These energy-efficient switches automatically limit the ON times for fans, lighting, motors, heaters, and other energy consuming loads. A commercial "brushed metal" look plate (plastic construction) meets NEC requirements.

Technical Information

Action
SPST
Amperage
15 Amp
Applications
Indoor, CFLs Lighting, Fans, Electric Motors, Heaters, HVACR
Blade Dimensions
1.6 in W x 1.19 in D x 2.79 in H
Connection Type
Teeter Type
Contact Configuration
1 NO
Contact Material
Tungsten
Contact Rating
7 AMP @ 125 VAC (Tungsten), 20 AMP @ 125 VAC (Resistive), 10 AMP @ 250/277 VAC (Resistive)
Frequency
50/60 Hz
Input Voltage
125-277 V
Material
Plastic
Max Operating Temperature
104 degrees F
Min Operating Temperature
32 degrees F
Mounting Type
Wall Mount
Number of Poles
1 Pole
Power Source
1 hp at 120 VAC, 2 hp at 240 VAC
Size
2.79 HEIGHT X 1.6 WIDTH X 1.19 DEPTH IN, 70.86 HEIGHT X 40.64 WIDTH X 30.22 DEPTH MM
Standard
CCSAus Certified,HVACR,NEC,UL Listed,UL Recognized
Switch Type
SPST
TC Connection
Teeter Type
Type
Commercial Spring Wound Auto-Off
Voltage
125-277 VAC

Manufacturer Information

Family Brand Name
Intermatic

General Product Info

Color
Brushed Metal
GTiN
00078275005297
Product UPC
07827500529
Weight
0.299 lb

Dimensions

Depth
1-1/4 Inch
Height
4-1/8 Inch
Warranty Length
1 yr
Width
1.75 in
Applications
  • Hot Tubs
  • Storage Closets
  • Bathroom Fans
  • Spas
  • Garage Lights
Features
  • Brushed metal look switch plate meets NEC requirements (plate is included)
  • Time-saving up front terminal connection with teeter-type terminals
  • No electricity required to operate
  • No neutral connection is required
  • Replaces any standard or decorator single or multi-gang wall switch
  • Quick and easy installation
  • Incandescent/fluorescent/CFL/LED compatible
  • Automatically limits ON time for energy consuming loads
