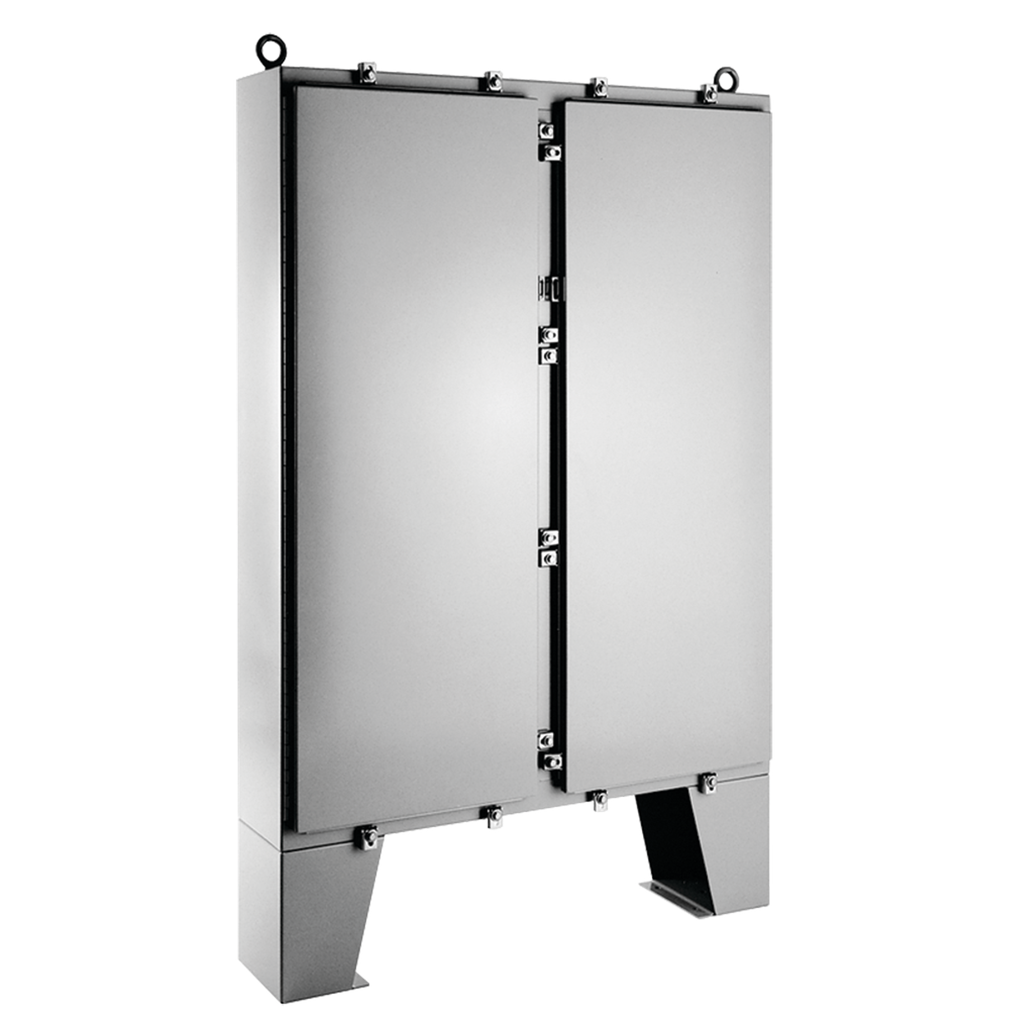

Product image for Hoffman A62H48CLP Two-Door with Floor Stands, Type 4, 62.06" x 48.06" x 10.06", Gray, Steel
Email

Hoffman A62H48CLP Two-Door with Floor Stands, Type 4, 62.06" x 48.06" x 10.06", Gray, Steel

Manufacturer: nVent Hoffman | Catalog # A62H48CLP | North Coast Part # 218939
$5,718.09/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
The Type 4 rating and polyester powder coating make these enclosures ideal for outdoor environments or food processing applications where it is necessary to protect controls and instrumentation from wet, non-corrosive environments. Featuring a continuous hinge with clamps, the enclosures are supported by floor stands that provide additional height and access for cleaning under the enclosure. Equipment can be mounted on either panels or racks.

Technical Information

Applications
For Outdoor
Color Coding
ANSI 61
Gauge
12 ga
Material
Steel
Mounting Type
Floor
Size
62.06x48.06x10.06 in
Standard
12,13,CSA,CUL Listed Per CSA C22.2 No. 94,File No. E61997,File No. LR42186,IEC 60529,IP66,NEMA/EEMAC Type 3,Type 4,UL 508A Listed
Type
Double Door, Gangable, Sixteen Lock

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Hoffman

General Product Info

12-Digit UPC
783510264000
Color
Gray
Finish
Powder Coated
GTiN
00783510264000
Product UPC
78351026400
Weight
392 lb

Dimensions

Depth
10.06 Inch
Height
62.06 Inch
Length
24 Inch
Thickness
2.66 mm
Width
48.06 in
Features
  • Seams continuously welded and ground smooth
  • Body stiffeners for added strength
  • Removable centerpost permits easy panel installation
  • Panel supports
  • Return flange around three sides of door and along top of enclosure opening channels away liquids and contaminants
  • Stainless steel door clamps on three sides of each door assure water-tight seal
  • Heavy gauge continuous hinge with stainless steel hinge pin
  • Hasp and staple for padlock
  • Data pocket is high-impact thermoplastic
  • 12-in. floor stands bolted-on to enclosure
  • Heavy-duty lifting eyes
  • Oil-resistant door gasket
  • Collar studs provided for mounting optional panels
  • Grounding stud on body
  • Bonding provision on door
  • Provision for mounting fluorescent light
