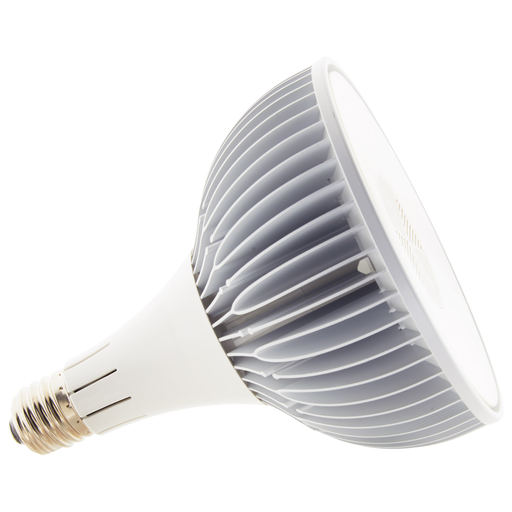

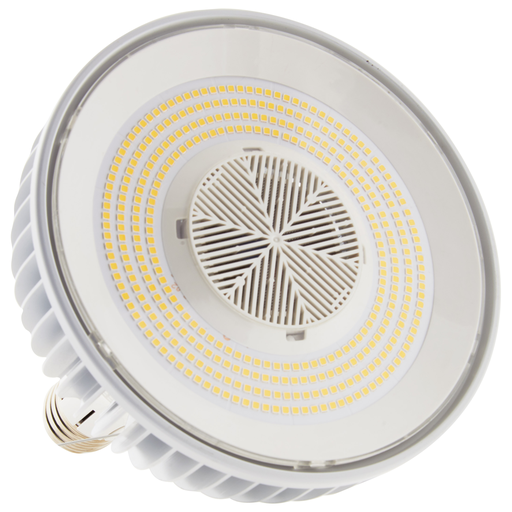

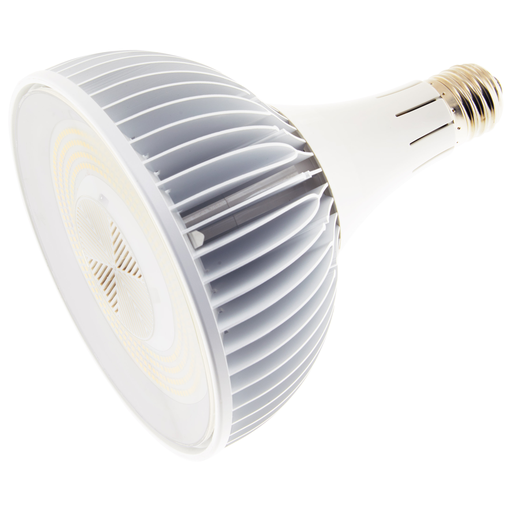

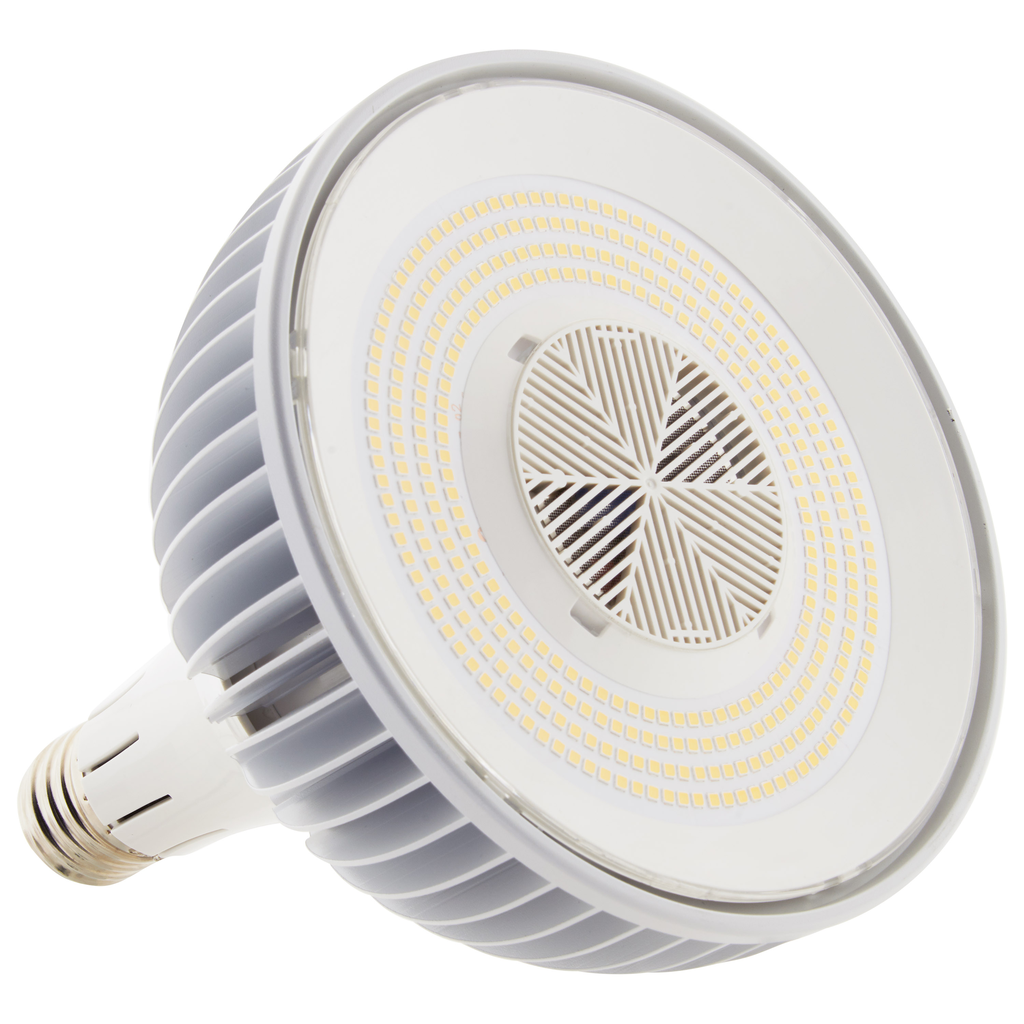

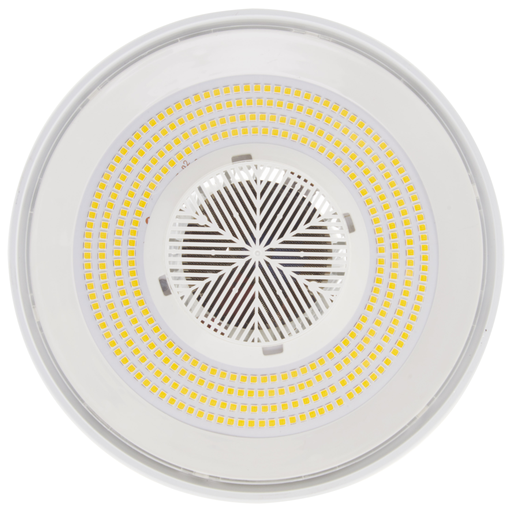

Product image for Satco S13155 152 Watt - LED HID Replacement; 5K; EX39; Type B Ballast Bypass; 120-277 Volt; Dimmable
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Satco S13155 152 Watt - LED HID Replacement; 5K; EX39; Type B Ballast Bypass; 120-277 Volt; Dimmable

Manufacturer: Satco | Catalog # S13155 | North Coast Part # 2196466
$254.75/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
152 Watt - LED HID Replacement - 5K - EX39 - Type B Ballast Bypass - 120-277 Volt - Dimmable

Technical Information

Amperage
1.267-0.549 Amp
Average Rated Life
50000 hr
Beam Spread
180
Color Temperature
Natural Light
Correlated Color Temp
5000 K
Dimmable?
Yes
Incandescent Equivalent
1000 W
Indoor Outdoor
Indoor;Outdoor
IP Rating
IP40
Lens Color
Clear
Lens Material
Glass
Lumens
25,000 Lumen
Material
Plastic
Operating Temperature
-40 degrees C
Power Factor
0.9
Technology Type
LED
Type
Hi-Bay Flood
Voltage
120 Volt
Wattage
152 Watt
Wet Location
Damp

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Satco

General Product Info

12-Digit UPC
045923131554
Finish
White
GTiN
00045923131554
Housing Color
White
Product UPC
04592313155
Weight
3.4 lb

Dimensions

Warranty Length
5 yr

Certifications and Compliance

Country of Origin
China
Features
  • 5000K Natural White Light
  • Advanced Passive Heat Dissipation
  • Wide, 180 degree Beam Angle
  • Long neck design fits more fixtures
  • 6kV built-in surge protection
  • Rated for use in enclosed fixtures
Ballasting Requirements
  • Ballast Bypass
Installation Notes
  • Not for use in vapor tight fixtures. Vertical Only with base up
Accessory Products
  • 66ELV
  • CTRP-253P
  • DVRP-253P
  • MA-PRO
  • NTRP-250
  • RRD-PRO
