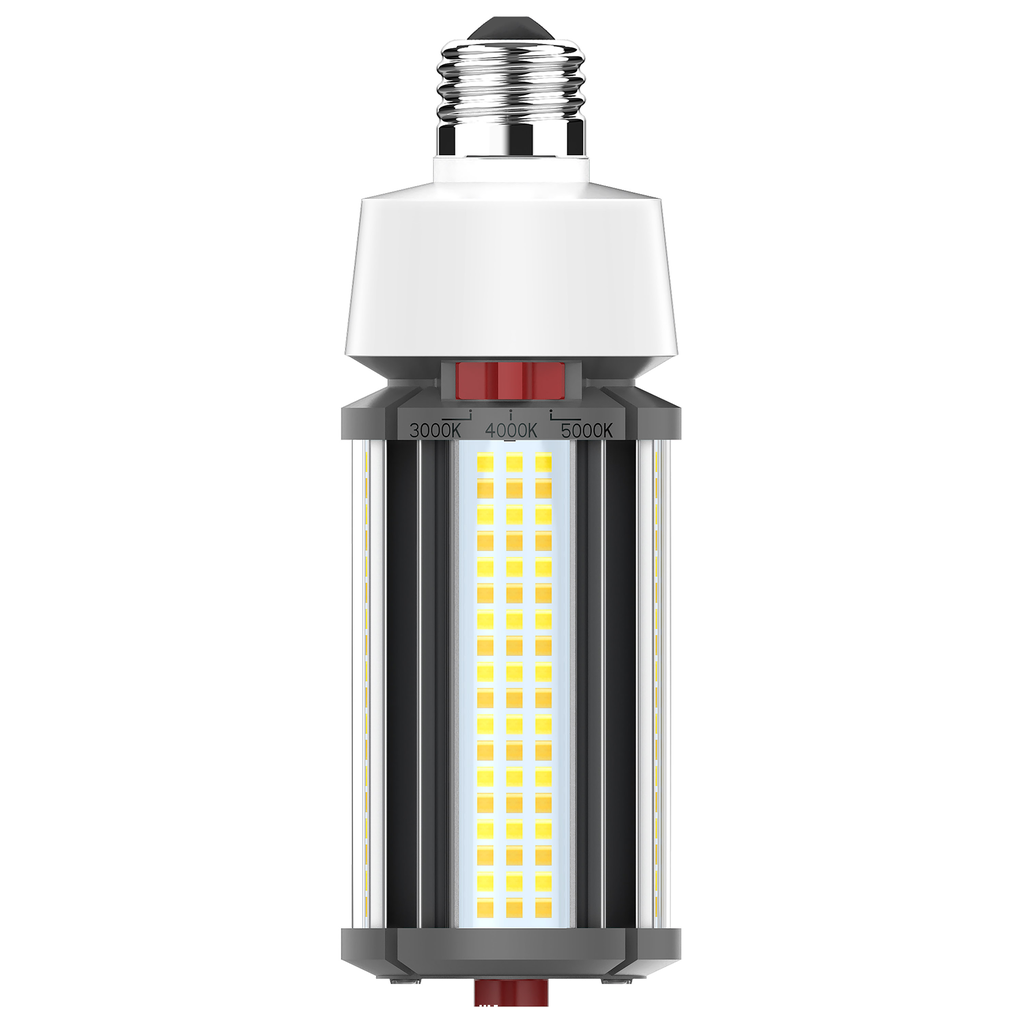

Product image for Satco S23148 27/22/18 Wattage Selectable; LED HID Replacement; CCT Selectable; Medium base; 100-277 Volt; ColorQuick Technology; PowerQuick Technology
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Satco S23148 27/22/18 Wattage Selectable; LED HID Replacement; CCT Selectable; Medium base; 100-277 Volt; ColorQuick Technology; PowerQuick Technology

Manufacturer: Satco | Catalog # S23148 | North Coast Part # 2196478
$99.63/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
27/22/18W LED HID Replacement - Wattage & CCT Selectable - Medium Base - 100-277 Volts

Technical Information

Amperage
0.180-0.065 Amp
Average Rated Life
50000 hr
Beam Spread
300
Color Temperature
Cool White,Warm White
Correlated Color Temp
3000 K
Dimmable?
Yes
Incandescent Equivalent
100 W
Indoor Outdoor
Indoor;Outdoor
IP Rating
IP64
Lens Material
Plastic
Lumens
2,520 Lumen
Material
Plastic (PS)
Operating Temperature
-40 degrees C
Power Factor
0.9
Technology Type
LED
Type
Corncob
Voltage
100 Volt
Wattage
18 Watt
Wet Location
Damp

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Satco

General Product Info

12-Digit UPC
045923231483
Finish
White
GTiN
00045923231483
Housing Color
Gray
Product UPC
04592323148
Weight
0.66 lb

Dimensions

Warranty Length
5 yr

Certifications and Compliance

Country of Origin
China
Features
  • CCT Selectable-3000K, 4000K, 5000K
  • Wattage Selectable
  • Enclosed Fixture Rated
  • Advanced Thermal Management
  • Damp Location Rated
  • 4KV Built in Surge Protection
  • Rated for 50,000 hours of use
  • Power selectable
Installation Notes
  • Not for use in vapor tight fixtures.
Ballasting Requirements
  • Ballast Bypass
