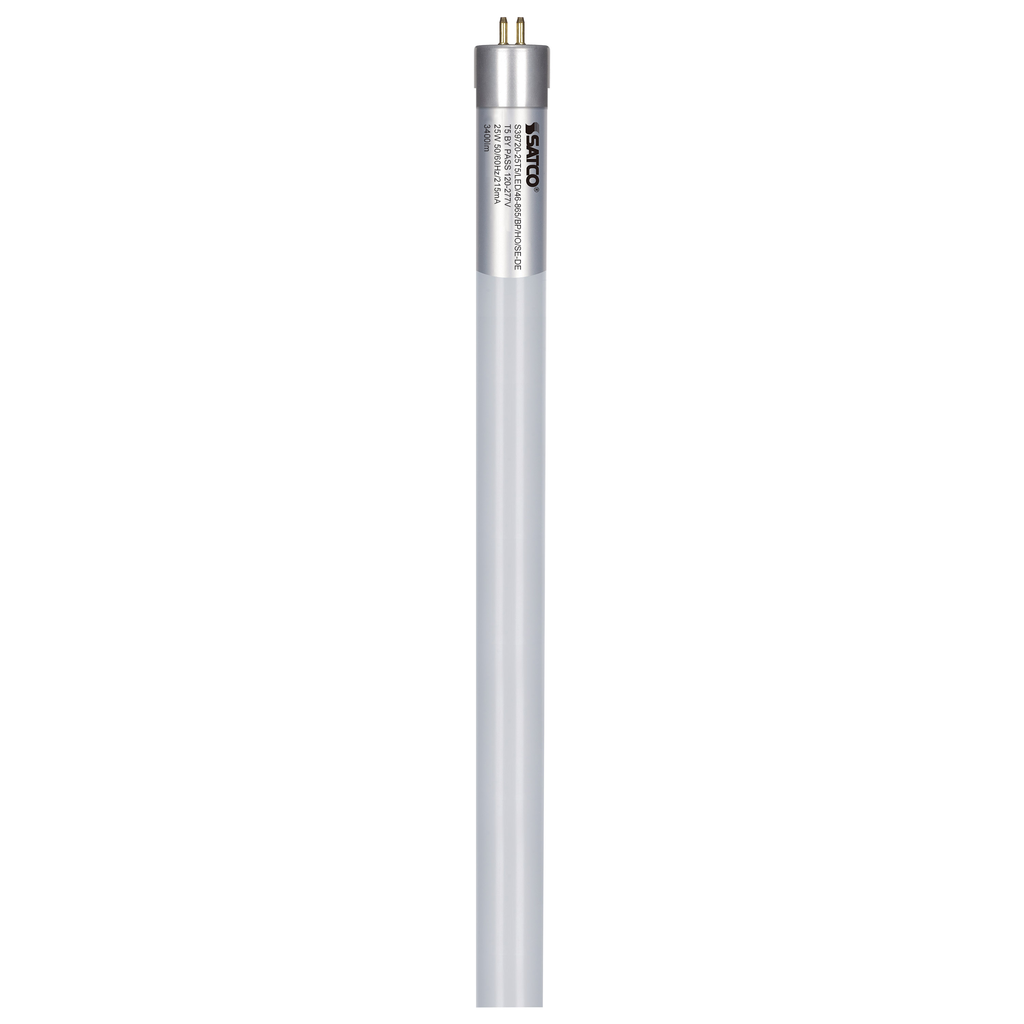

Product image for Satco S39720 25 Watt T5 LED; Miniature bi-pin base; 6500K; 50000 Average rated hours; 3400 Lumens; 120-277 Volt; Type B; Ballast Bypass; Single or Double Ended Wiring
Email

Satco S39720 25 Watt T5 LED; Miniature bi-pin base; 6500K; 50000 Average rated hours; 3400 Lumens; 120-277 Volt; Type B; Ballast Bypass; Single or Double Ended Wiring

Manufacturer: Satco | Catalog # S39720 | North Coast Part # 2196526
$23.88/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
25W T5 LED G5 Base - 6500K - 50K Hours - 3400L 120-277V - Type B Ballast Bypass - 1/2-Ended Wiring

Technical Information

Amperage
0.208-0.090 Amp
Average Rated Life
50000 hr
Base
G5
Beam Angle
180
Beam Spread
240
Color Temperature
Daylight
Correlated Color Temp
6500 K
Dimmable?
Yes
Incandescent Equivalent
100 W
IP Rating
IP20
Lens Color
Frost
Lens Material
Glass
Lumens
3,400 Lumen
Material
Aluminum
Operating Temperature
-20 degrees C
Power Factor
0.9
Size
46 in
Standard
CSA C22.2 No. 85,UL E23018,cULus
Technology Type
LED
Type
T8
Voltage
120 Volt
Wattage
25 Watt
Wet Location
Damp

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Satco
Sub Brand
Satco

General Product Info

12-Digit UPC
045923397202
Finish
Frosted
GTiN
00045923397202
Housing Color
Silver
Product UPC
04592339720
Weight
0.52 lb

Dimensions

Length
48 Inch
Warranty Length
5 yr

Certifications and Compliance

Country of Origin
Vietnam
Features
  • MOL: 46.00 inches, MOD: 0.83 inches
  • Superior 83 CRI light quality, 3400 lumens and a 6500K with a 240 beam spread
  • Rated for enclosed fixtures
  • Damp rated
  • 25 watt LED replaces 54 watt fluorescent
  • Frosted lens, made of aluminum with silver
  • DLC Certified and qualifies for rebates where available
  • 5 Year Limited Warranty
Installation Notes
  • Not for use in vapor tight fixtures.
Ballasting Requirements
  • Ballast Bypass
