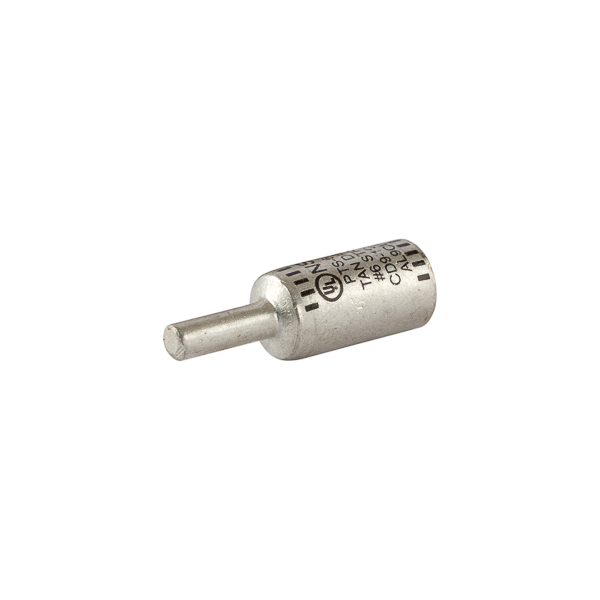

NSi PTS6 Aluminum Pin Terminal, 6 AWG

Manufacturer: NSi Industries | Catalog # PTS6 | North Coast Part # 2210232
$39.49/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Aluminum, Tin Plated Pin Terminal, 6 AWG Wire Size, 4 AWG SOLid Pin (Al/Cu), TAN

Technical Information

Applications
Terminate, Splice, Tap Power Connectors
Conductor Size
6 AWG
Connection Type
# 4 Pin
Insulation Material
Plastisol Cover
Material
Aluminum
Max Temperature
194 degrees F
Number of Conductors
1
Number of Poles
1 Pole
Size
L=1.85 - OD=.598 - ID=.220 - Pin Dia=.240
Standard
UL486
TC Connection
# 4 Pin
Temperature Rating
90 degrees C
Type
Solid Pin
Voltage
600 Volt
Wire Size
6 AWG

Manufacturer Information

Brand
NSI Industries
Sub Brand
Pin Terminals

General Product Info

12-Digit UPC
662381033406
Color
Tan
Environmental Conditions
90 degrees C
Finish
Tin Plated
GTiN
00662381033406
Product UPC
66238103340

Dimensions

Height
0.6 Inch
Length
1.85 Inch
Warranty Length
1 yr
Width
0.6 in

Certifications and Compliance

Country of Origin
India
Features
  • All-aluminum pin terminal designed for termination of both aluminum and copper conductors
  • The pin is solid aluminum
  • The connector is tin plated to provide low contact resistance and oxidation protection
  • Connector is pre-filled with Oxide Inhibitor and capped with color coded cap indicating color of die to use
  • A EPDM cover is provided for quick installation
Certifications and Standards
  • UL Listed
  • UL 486A-486B
