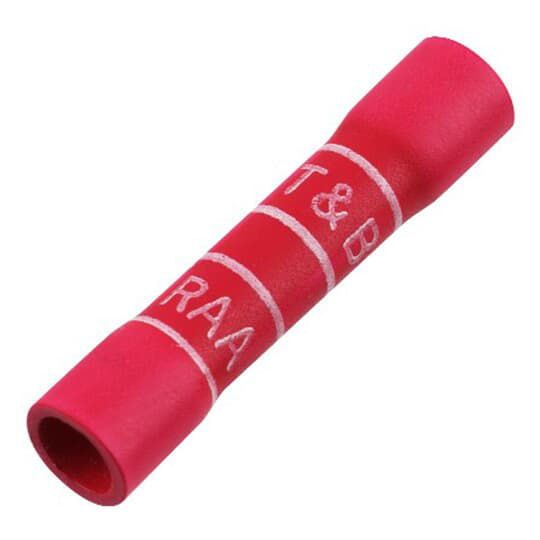

Thomas & Betts 2RB14XCP 16-14 AWG 10.1 Inch Expanded Insulated Vinyl Butt Splice

Manufacturer: Thomas & Betts | Catalog # 2RB14XCP | North Coast Part # 222866
$299.06/c (100 ea)
ea
Order in multiples of 20 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page

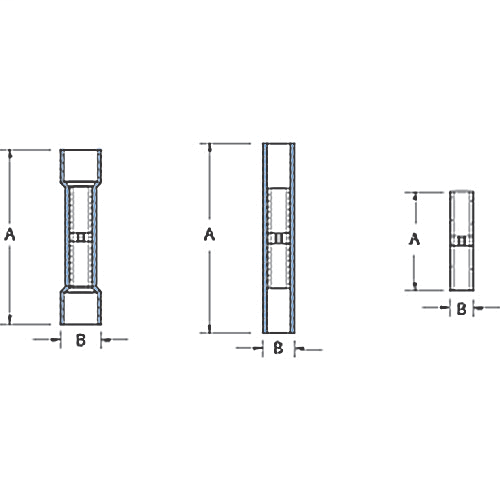

Expanded Vinyl-Insulated Butt Splice, Length 1.13 Inches, Width .26 Inches, Maximum Insulation Diameter .200, Wire Range #16-#14 AWG, Color Blue, Copper, Tin Plated, Mini-Pack

Technical Information

Conductor Size
16-14 AWG
Contact Material
Copper
Insulation Type
Expanded Insulated Vinyl
Material
Copper
Standard
UL E9809
Temperature Rating
105 degrees C
Type
Expanded
Voltage
600 Volt

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210899367
Color
Blue
Finish
Electro-Tin Plated
GTiN
00786210899367
Product UPC
78621089936
Features
  • In butt splices, the wires are butted together and crimped at each end of the splice. These splices are color-coded according to wire size.
