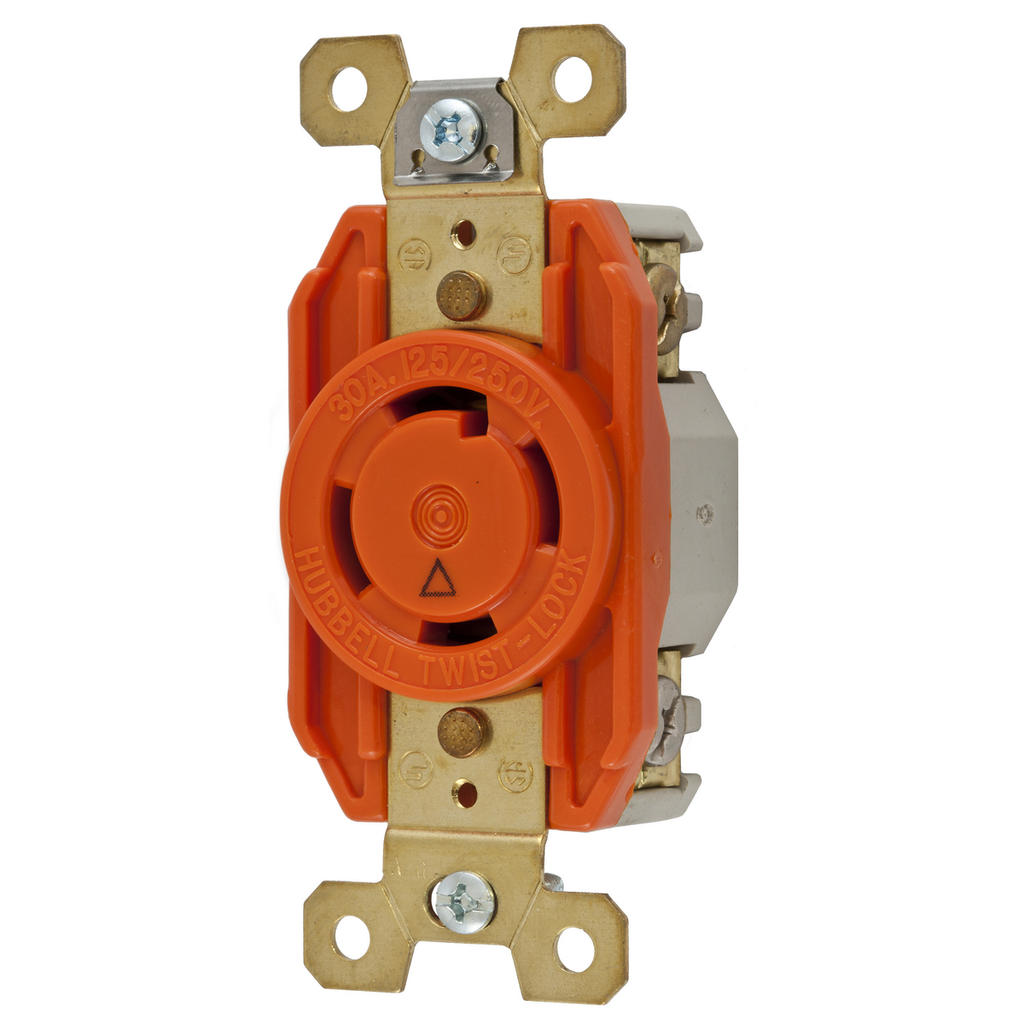

Product image for Hubbell IG2710 30 Amp 125/250 Volt 3-Pole 4-Wire NEMA L14-30R Orange Isolated Ground Locking Single Receptacle
Image thumbnail 0
Image thumbnail 1
Email

Hubbell IG2710 30 Amp 125/250 Volt 3-Pole 4-Wire NEMA L14-30R Orange Isolated Ground Locking Single Receptacle

Manufacturer: Hubbell / Kellems | Catalog # IG2710 | North Coast Part # 2229
$134.89/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page
Locking Devices, Twist-Lock®, Isolated Ground Industrial, Flush Receptacle, 30A 125/250V, 3-Pole 4-Wire Grounding, L14-30R, Screw Terminal, Orange

Technical Information

Amperage
30 Amp
Applications
Heavy Duty Industrial
Base Material
RTP
Conductor Size
12-8 AWG
Current
30 Amp
Dielectric Strength
Withstands 2,000V minimum
Face Material
Nylon
Grade
Industrial
Grounding
Isolated
Horsepower
2 hp
Material
Thermoplastic
Mounting Type
Screw, Recessed/Flush
NEMA
L14-30R
Number of Phases
1 Phase
Number of Poles
3 Pole
Number of Wires
4 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
TC Connection
Screw Terminal
Type
Heavy Duty
Voltage
125/250 Volt
Wattage
7500 Watt
Wire Count
4
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585872421
Color
Orange
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
GTiN
00783585872421
Product UPC
78358587242
Weight
0.30 lb

Dimensions

Height
1.23 Inch
Length
3.28 Inch
Width
1.7 in

Certifications and Compliance

Country of Origin
USA
Features
  • Insulation barrier construction isolates ground contact from mounting strap
  • Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
  • High-impact, abuse-resistant nylon face
  • All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
  • Isolated Ground
