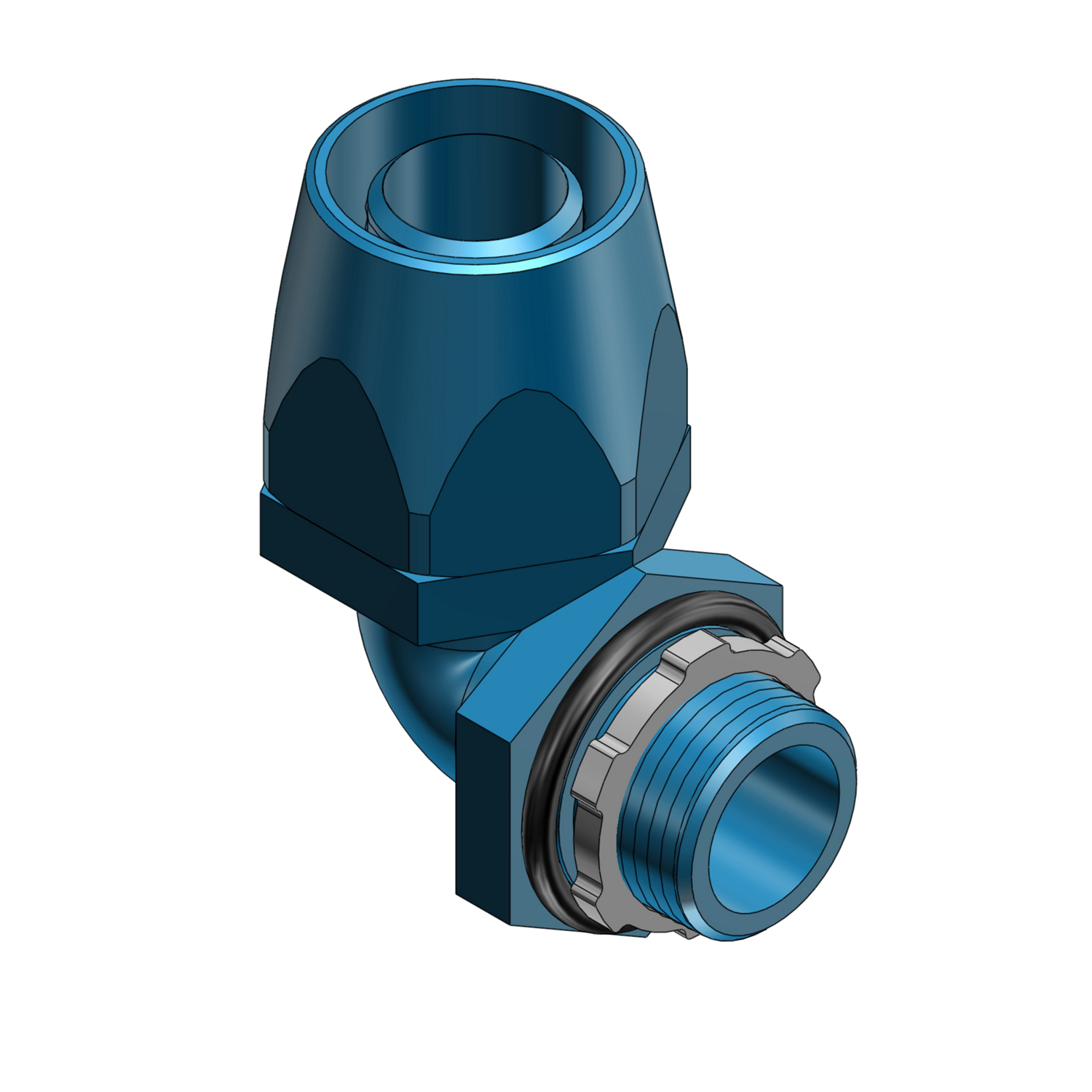

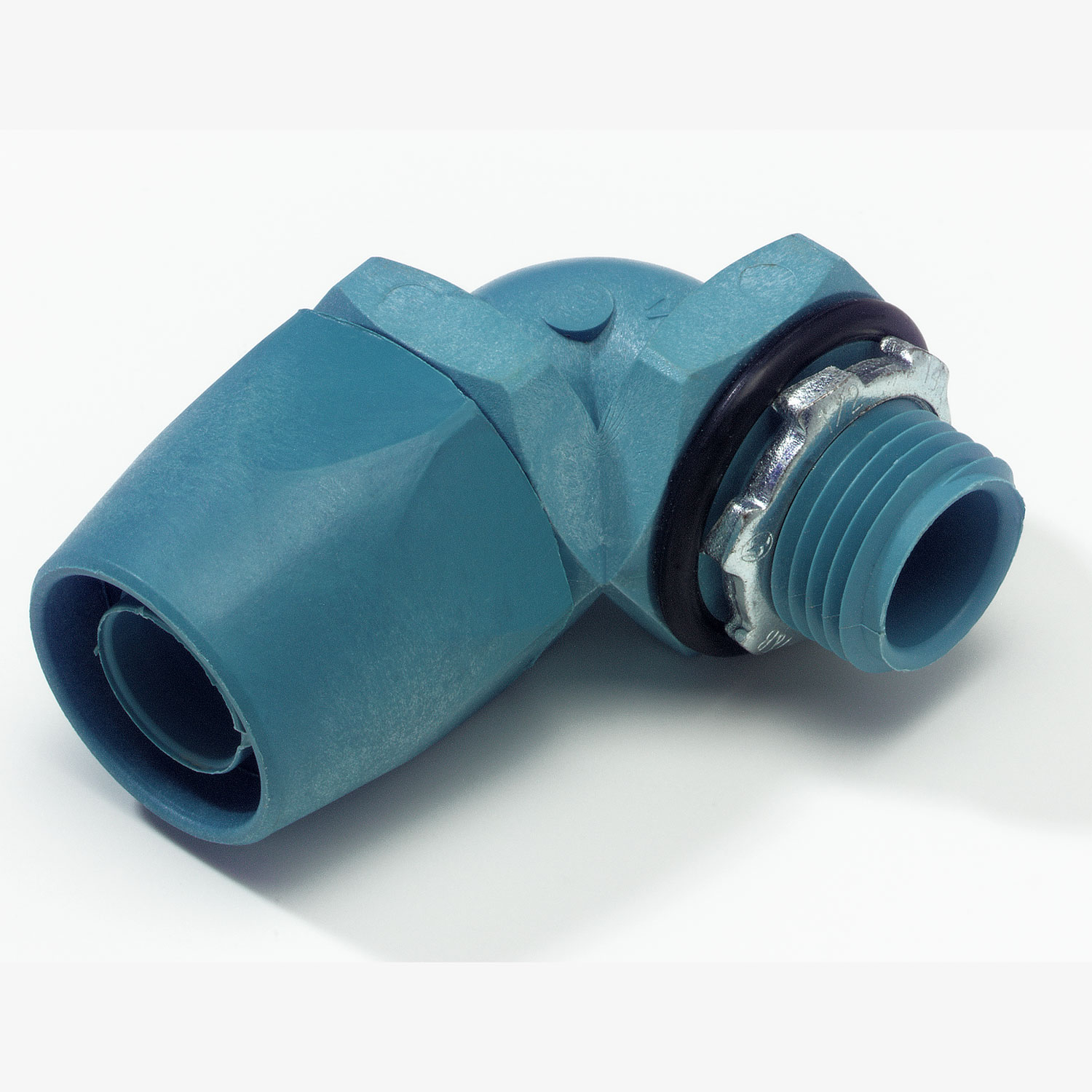

Thomas & Betts 6322 1/2 Inch 90 Degree Non-Metallic Type A Connector

Manufacturer: Thomas & Betts | Catalog # 6322 | North Coast Part # 22348
$9,889.86/c (100 ea)
ea
Order in multiples of 10 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page
1/2 Inch 90 Degree Non-metallic Type A Liquidtight Connector With Captive Sealing O-ring and Tapered Hub Thread

Technical Information

Applications
To Provide a Liquidtight, Dust-Tight Connection Between Flexible, Non-Metallic Conduit and a Box or an Enclosure
Material
Thermoplastic
Size
1/2 in
Standard
UL E23018
TC Connection
External Thread
Thread Length
14.29 mm
Trade Size
1/2 Inch
Type
Straight, Type A, Non-Metallic, Flexible, 90

Manufacturer Information

Brand
Thomas & Betts (T&B)

General Product Info

12-Digit UPC
786210063225
GTiN
05414363145387
Product UPC
78621006322
Features
  • Serrated design provides high mechanical pull-out strength.
  • Captive O-ring and reduced number of parts save installation time.
  • Tapered thread hub and furnished neoprene sealing O-ring provide a liquidtight, dust-tight seal to a box or enclosure.
  • Smooth insulated body throughout for maximum dielectric strength.
  • Unique component parts (body/gland) design ensures positive seal between conduit and connector.
Application
  • Ideal for automotive and automotive OEM applications, electric signs and outdoor lighting over 1000V (Article 600.31(A)), and pool and spa wiring. (Article 680)
  • To provide a liquidtight; dust tight connection between flexible, non-metallic conduit and a box or an enclosure.
  • Chemical resistant, ideal for corrosive environments
