Broan 696 2 Amp 120 Volt 100 CFM 4.5 Sones 16-3/4 x 10-5/8 x 2-1/8 Inch White Polymeric Grille Fan with Light

Manufacturer: Broan | Catalog # 696 | North Coast Part # 224836
$270.00/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
The 100 CFM White Exhaust Fan with Light can help ventilate your bathroom. The fan features quiet operation and 100-watt light capacity (bulb not included). It vents moisture in bathrooms up to 95 sq. ft. and features steel construction for durability. Its white grille can provide a sleek, appealing look in your bathroom.

Technical Information

Airflow Rate
100 CFM
Amperage
2 Amp
Applications
For Bathrooms Up To 90 SQ-FT
Bulb Included
No
Duct Shape
Round
Duct Size
4 in
Light Type
Incandescent
Mounting Type
Ceiling
Nightlight
No
Standard
AMCA Certified,HVI 2100 Certified,UL Listed
Type
Fan With Light
Voltage
120 Volt
Wattage
90 Watt

Manufacturer Information

Brand
Broan-NuTone

General Product Info

12-Digit UPC
026715023158
Color
White
Grille Material
Polymeric
GTiN
00026715023158
Housing Material
Galvanized
Product UPC
02671502315
Weight
10 lb

Dimensions

Grille Length
16-3/4 in
Grille Width
10-5/8 in
Height
7-7/8 Inch
Housing Height
5-3/4 in
Housing Width
8-1/4 in
Length
16-3/4 Inch
Warranty Length
1 yr
Width
10.625 in

Certifications and Compliance

Country of Origin
Mexico
Features
  • 100 CFM, Powerful ventilation to remove moisture and reduce the risk of mold or mildew in most full baths.

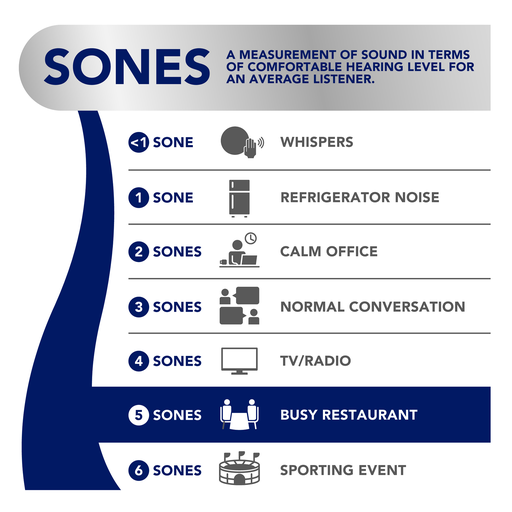

  • 4.5 Audible sones for privacy with using your bathroom
  • Designer styled white polymeric grille complements virtually any decor
  • Steel housing provides durability
  • Fits in 2 in. x 6 in. ceiling construction
  • UL listed for use in insulated ceilings (type I.C.)
  • Snap-in light diffusing lens for 100W light bulb
  • Exhaust fan with light to help reduce moisture, odors, and mildew
  • Powerful enough for rooms (including bathroom) up to 95 sq. ft.
  • Easy to install and/or replace existing product for DIY'ers
