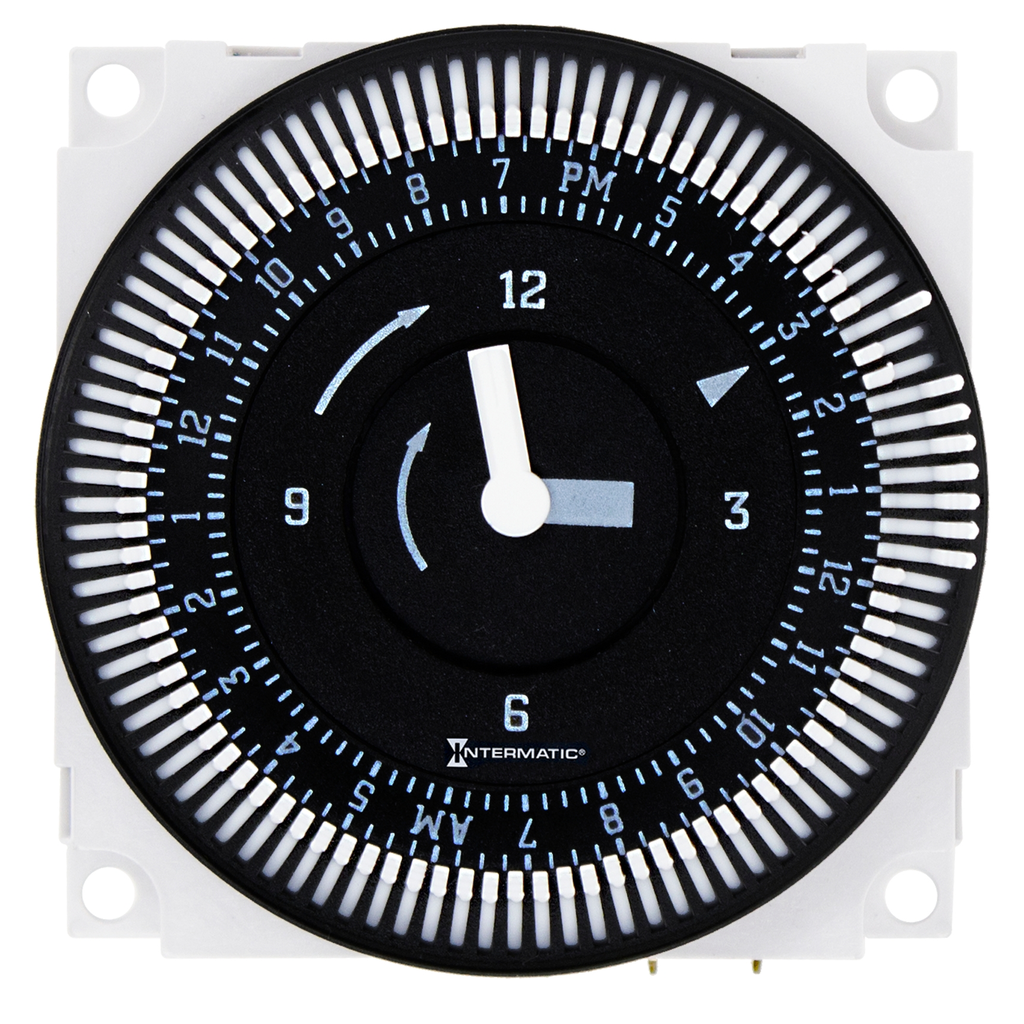

Product image for INT-MAT FM1STUZ-120U 24-Hour 120V E
Image thumbnail 0

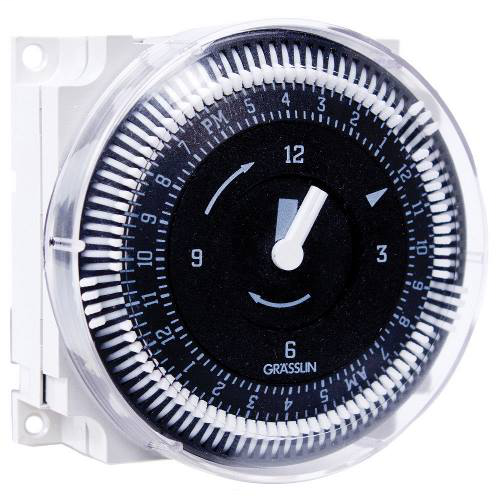

Image thumbnail 1

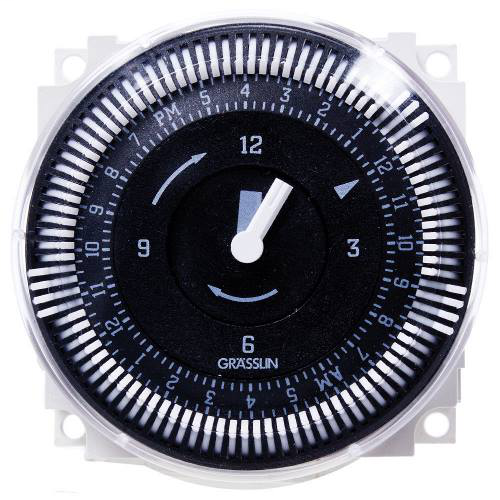

Image thumbnail 2
Email

INT-MAT FM1STUZ-120U 24-Hour 120V E

Manufacturer: Intermatic | Catalog # FM1STUZ-120U | North Coast Part # 2250740
$117.53/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
The FM1 series timer modules are designed to be integrated inside of a machine control panel, circuit board, or other equipment. They are a simple and low cost alternative for applications that do not require more than 21 A or 2 HP, 240 VAC. The FM1 is designed for 24-hour or 7-day control or overriding a functional typical state of a heating, ventilation, refrigeration, lighting, security, or pump system. The FM1 series is ideal for 12, 24 VAC/VDC,120 or 208/240VAC single-phase general applications.

Technical Information

Action
SPDT
Applications
Aeration,Air Movement & Ventilation,Generator Exercising,Refrigeration Merchandiser,Septic Treatment
Connection Type
1/4 In Quick Connect
Contact Configuration
1 NO/1 NC
Contact Rating
21 AMP @ 120 - 250 VAC
Frequency
50/60 Hz
Input Voltage
120 V
Max Operating Temperature
185 degrees F
Min Operating Temperature
-40 degrees C
Mounting Type
Panel Mount
Number of Poles
1 Pole
Operating Temperature
185 degrees F
Power Consumption
1 VA
Size
2.36 HEIGHT X 2.36 WIDTH X 1.25 DEPTH IN, 60 HEIGHT X 60 WIDTH X 32 DEPTH MM
Standard
CCSAus Certified LR3730,CE Certified,CULus Recognized #10694,HVACR
Switch Type
SPDT
TC Connection
1/4 IN Quick Connect
Type
Synchronous Electromechanical
Voltage
120 Volt
Wattage
1350 Watt

Manufacturer Information

Brand
NA
Sub Brand
Grasslin

General Product Info

12-Digit UPC
078275152816
Color
Black
GTiN
00078275152816
Product UPC
07827515281

Dimensions

Depth
1-1/4 Inch
Height
2.359 Inch
Warranty Length
1 yr
Width
2.359 in

Certifications and Compliance

Country of Origin
Mexico
Features
  • 21 A SPDT Switch
  • Captive trippers with 15-minute intervals on 24-hour models and 2-hour intervals on 7-day models
  • 72-hour carry-over battery backup on Q models
  • Noise immune ideal for robust applications
  • Synchronous drive or quartz drive Q models with self-recharging battery backup
  • True clock face, easy-to-set
  • Available with or without override
  • Compact size
  • Clear plastic cover (DC-FME-A), sold separately
  • Standalone or with indoor/outdoor enclosure, sold separately
