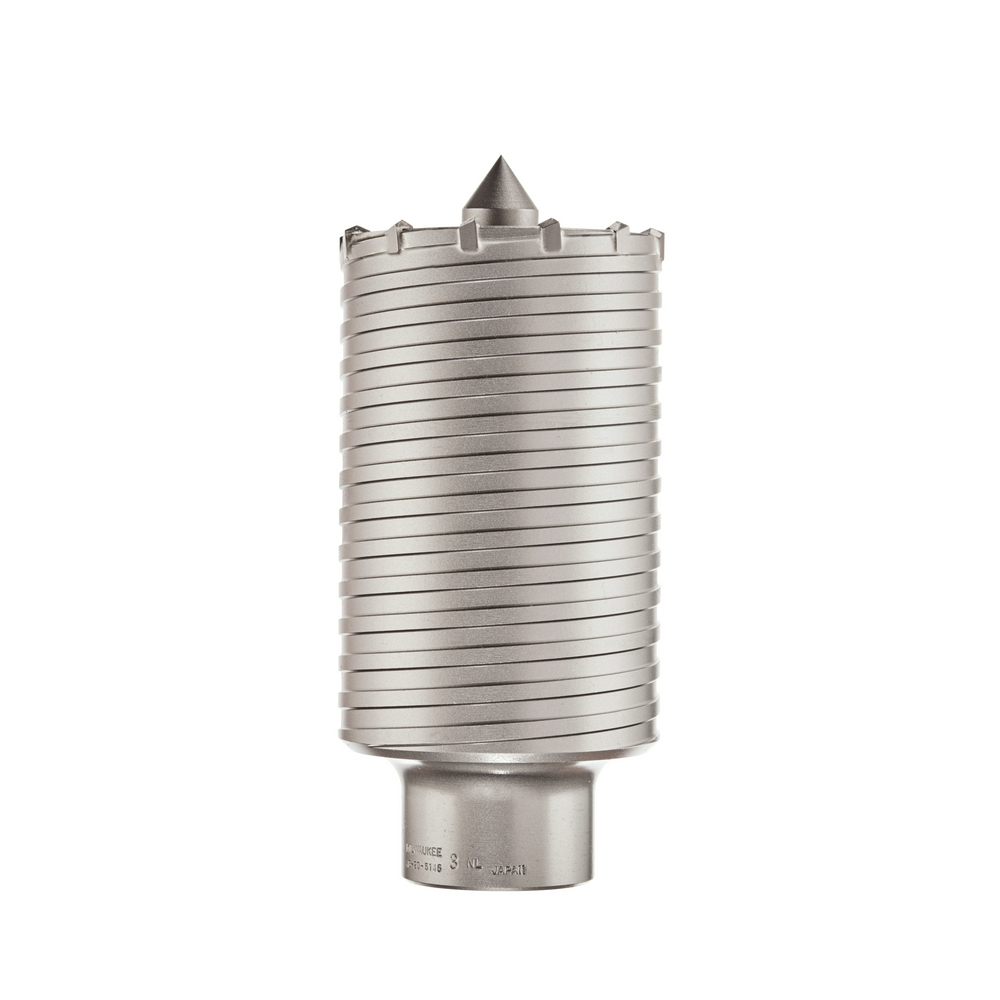

Product image for Milwaukee 48-20-5140 SDS-Max and Spline Thick Wall Carbide Tipped Core Bit 2-1/2"
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

Milwaukee 48-20-5140 SDS-Max and Spline Thick Wall Carbide Tipped Core Bit 2-1/2"

Manufacturer: Milwaukee Tool | Catalog # 48-20-5140 | North Coast Part # 225478
$256.10/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Milwaukee®'s SDS-Max and spline thick wall core bits are used for drilling large through holes into brick, block, concrete. Includes core bit, guide plate, and centering pin.

Technical Information

Applications
For Large Hole Drilling where Depth is Relatively Shallow
Bit Type
Percussion
Drilling Depth
4.062 in
Included Angle
Guide Plate and Centering Pin
Material
Carbide
Shank Size
12/18 in L
Shank Type
Spline/SDS Max
Size
2 1/2 in
Style
Thick Wall For SDS-MAX Or Spline
Type
Two Piece

Manufacturer Information

Brand
Milwaukee Tool
Sub Brand
MILWAUKEE

General Product Info

12-Digit UPC
045242106004
GTiN
00045242106004
Product UPC
04524210600
Used With
48-03-3564 12 in, 48-03-3565 18 in Thick Wall Core Bit Shanks

Dimensions

Depth
4-1/16 Inch
Diameter
2-1/2 Inch
Flute Length
4-1/16 in
Length
5 Inch
Shank Diameter
0.0 in
Features
  • Thick wall design
  • 2-1/2 in. diameter
  • Usable cutting depth 4-1/16 in.
  • Use with 12 in. or 18 in. spline adapter shanks (48-03-3564, 48-03-3565) and 12 in. or 18 in. SDS-Max adapter shanks (48-03-3572, 48-03-3573)
  • Use with 7-1/2 in. extension 48-95-6085
  • Use with guide plate 48-20-5170 and centering pin 48-20-5199
  • Includes core body with guide plate & centering pin
